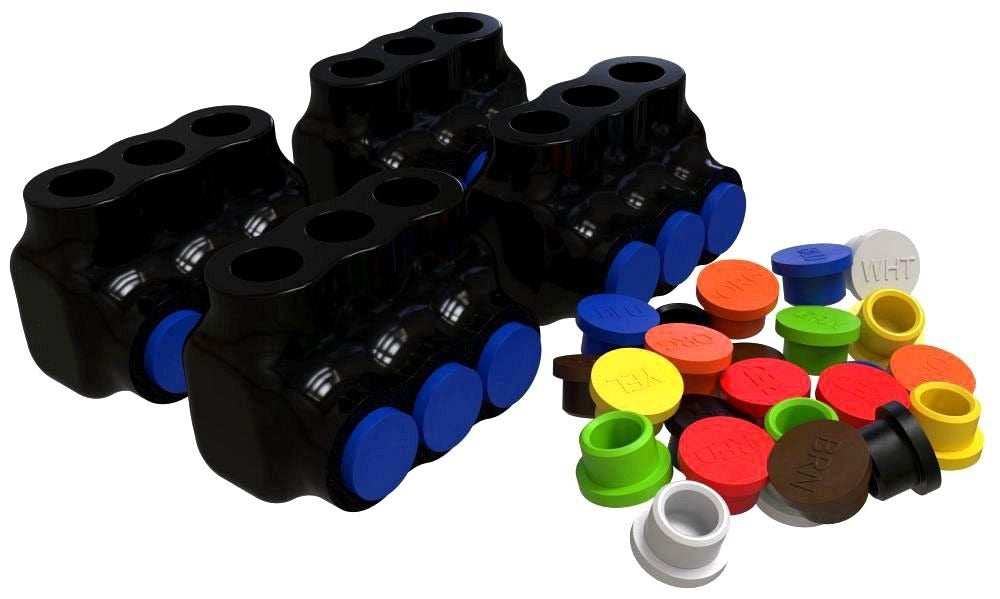

Ilsco pbtfml-1/0-09-w-l Motor Lead Kit 600V 9-port

Product Description

The ILSCO pbtfml-1/0-09-w-l is a NIMBUS4FLEX insulated aluminum multi-tap connector kit designed for motor lead terminations in wye-connected, low-voltage motor installations. It accepts conductors from 14 AWG minimum up to 1/0 AWG maximum and is dual-rated for both copper and aluminum conductors. The kit features a plastisol body and tin-plated contact surfaces, providing a reliable mechanical connection across 9 ports. It carries UL and CSA approval and is RoHS compliant. Licensed electricians and motor service technicians install this kit in commercial and industrial settings where multi-tap motor lead connections are required.

This connector kit is suited for use on flex conductors including types H, I, K, and DLO in the 2 to 14 range, and flex 1 to 14 configurations, as specified in the catalog description. It is designed for wye-connected motor circuits operating at low voltage with a 600-volt rating. The single-side cable entry configuration simplifies installation in tight enclosures or motor junction boxes where conductor routing from one direction is preferred. Typical applications include three-phase motor lead splicing and termination in industrial motor control assemblies.

Key Features

• Dual-rated for copper and aluminum conductors, range 14 AWG to 1/0 AWG
• 9-port configuration supports wye-connected motor lead terminations
• Plastisol insulated body for electrical protection and durability
• Tin-plated contact surfaces resist corrosion and improve conductivity
• Single-side cable entry for simplified routing in confined spaces
• UL and CSA listed; RoHS compliant

Compatibility

Designed for wye-connected, low-voltage motor lead applications using flex conductor types H, I, K, DLO (2 to 14) and flex 1 to 14 M configurations, as specified by the manufacturer catalog description.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the motor circuit completely before making any connections. Verify conductor size falls within the rated range of 14 AWG to 1/0 AWG before terminating. Do not exceed the 600-volt voltage rating of the connector body.
