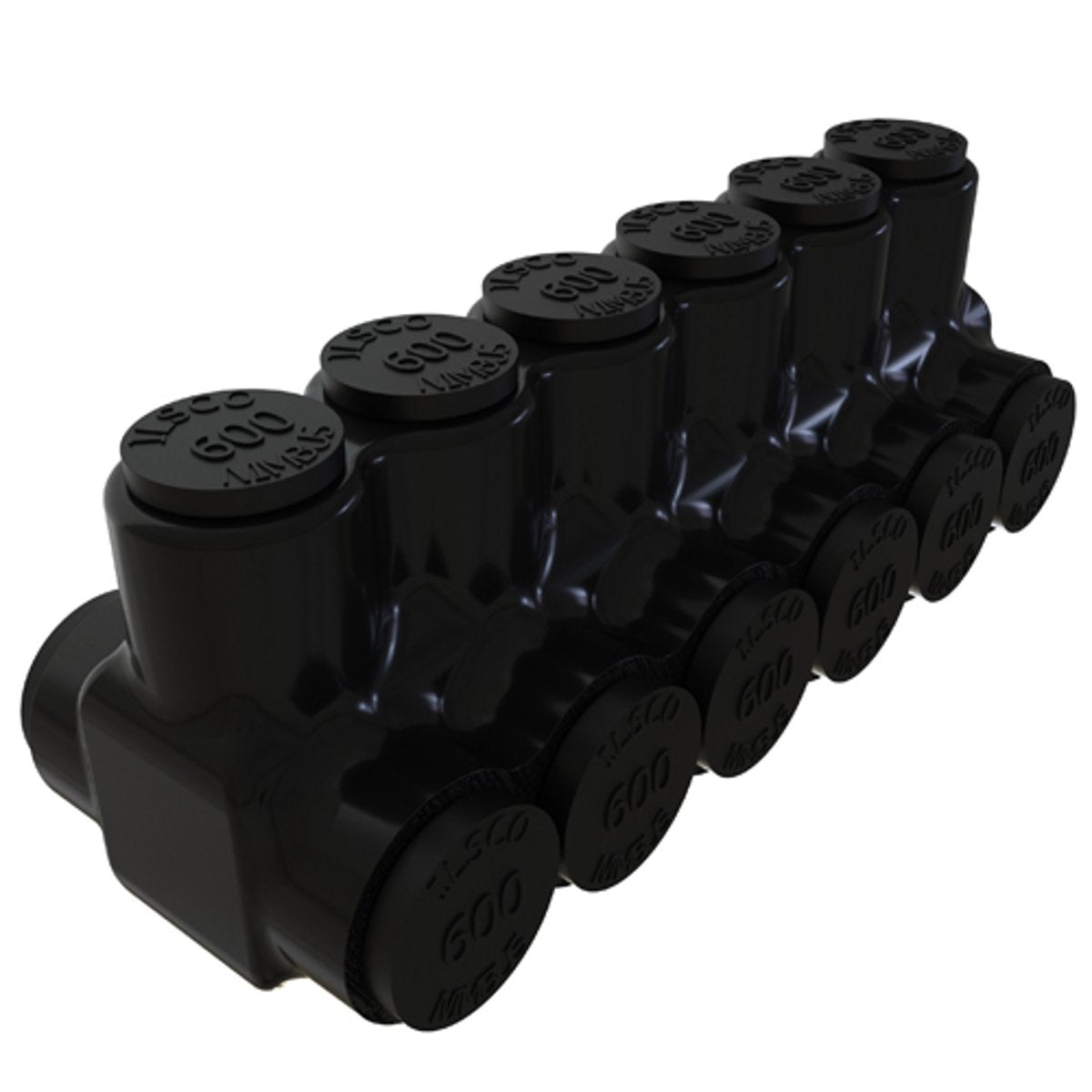

ILSCO PBTD-6-500 Nimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 600-4, 6 Ports, Dual Sided Entry, Tin Plated, UL, CSA

Product Description

The ILSCO PBTD-6-500 is a Nimbus Insulated Aluminum Multi-Tap Connector designed for various electrical applications. This connector accommodates a conductor range from six hundred kcmil to four AWG. The dual-sided entry model supports easy installation and flexibility in the field. It is UL listed and CSA certified, ensuring compliance with industry standards for reliability.

• Handles conductor sizes ranging from 600 KCMIL to 4 AWG.
• Six ports for multiple connections.
• UV-rated and chemical-resistant cover.

Product Highlights

This connector offers broad wire range compatibility and includes a removable plug entry closure to prevent oxidation. It is suitable for use in various environmental conditions, ensuring long-lasting performance.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Brand: ILSCO

Technical Specifications

• Catalog Number: PBTD-6-500
• Conductor Material: Copper/Aluminum
• Maximum Conductor Size: 600 KCMIL
• Minimum Conductor Size: 4 AWG
• Number Of Ports: 6
• Body Material: High Dielectric Strength Plastisol
• Temperature Rating: -45 to 90 Deg C
• Voltage Rating: 600 VAC
• Country of Origin: Mexico
• UPC: 783669078480
