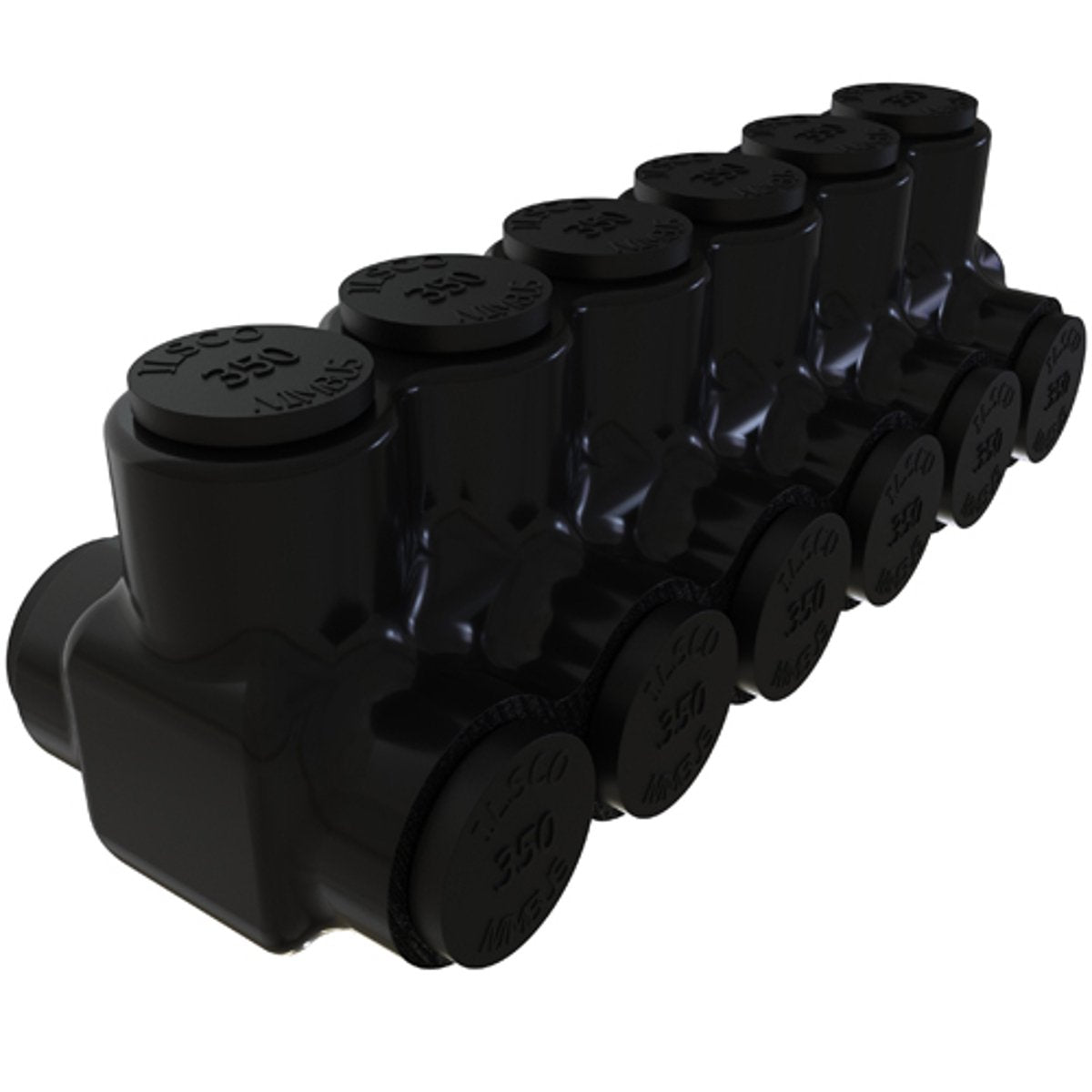

ILSCO PBTD-6-350 Nimbus Insulated Aluminum Multi-Tap Connector, 350 A, 6 Ports, Dual Sided Entry

Product Description

The ILSCO PBTD-6-350 is a robust insulated aluminum multi-tap connector. This product is designed for use with aluminum and copper conductors. It features six ports and dual-sided entry for flexible installation. The connector is suitable for conductor ranges from six to three hundred fifty kcmil. It is UL and CSA approved for safety and reliability in electrical systems.

• 350 A amperage rating
• Highly durable with UV-rated black cover
• Includes DE-OX oxide inhibiting compound

Product Highlights

This connector ensures secure and reliable electrical connections while preventing oxide buildup. It is particularly useful for applications requiring multiple connections from a single point.

Product Information

Standard Information

• Catalog Number: PBTD-6-350
• Manufacturer: ECM Industries

Technical Specifications

• Conductor Type: Aluminum/Copper
• Country of Origin: Mexico
• Dimensions: 6.71 inches L x 2.25 inches W x 2.62 inches H
• Material: Aluminum
• Temperature Rating: -45 to 90 degrees C
• Voltage Rating: 600 VAC
• Specifications: 6 AWG to 350 kcmil Wire, 5/16 inch Hex
