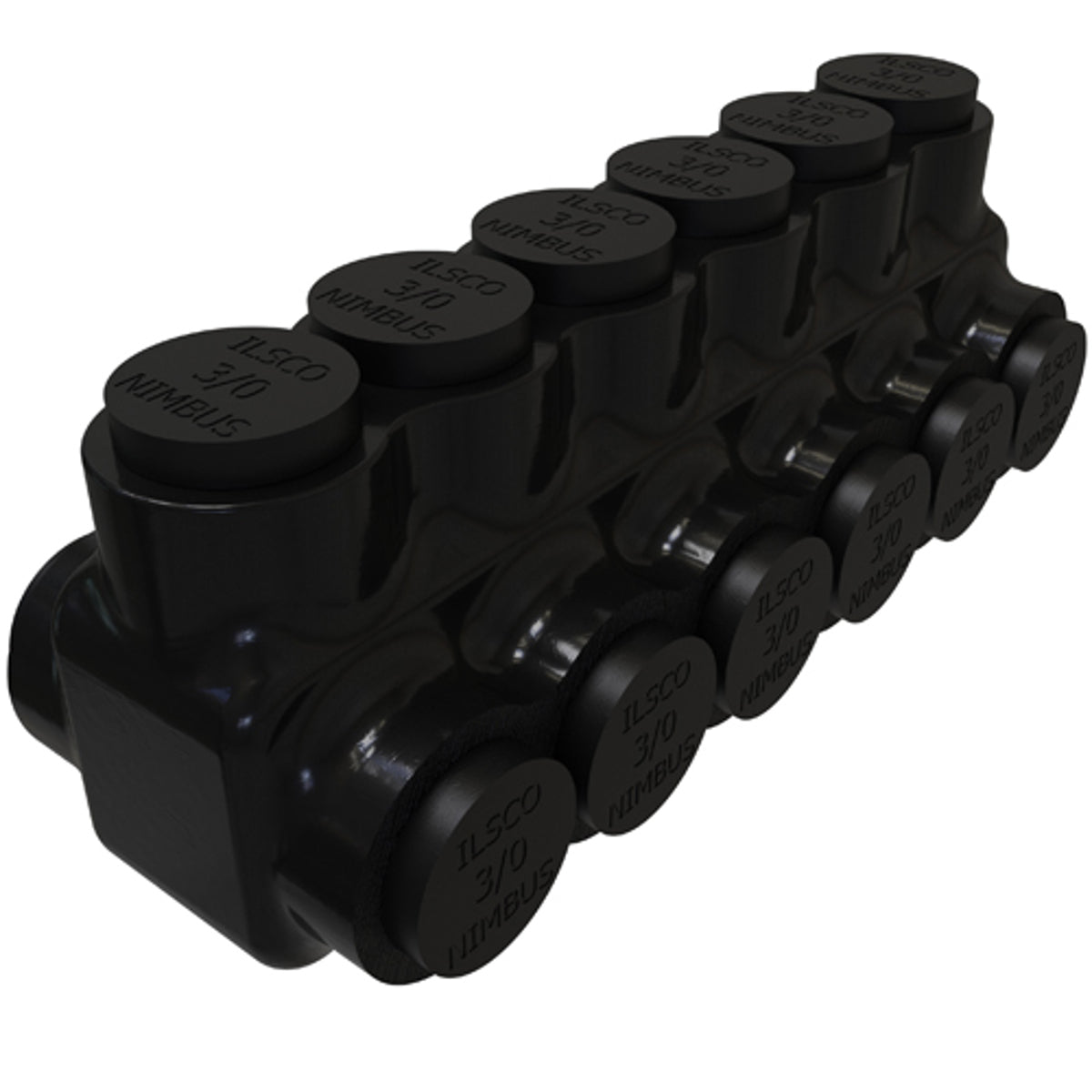

ILSCO PBTD-6-3/0 Nimbus Insulated Aluminum Multi-Tap Connector 600V 6 Ports

Product Description

ILSCO PBTD-6-3/0 is a Nimbus insulated aluminum multi-tap connector designed for use with conductors ranging from three to zero AWG. It features six ports for dual-sided entry and is tin plated for added durability. This connector is suitable for both copper and aluminum conductors.

• High dielectric strength plastisol insulated
• UL listed and CSA certified for 600 volts
• Removable plug entry port closure to prevent moisture ingress

Product Highlights

This connector is ideal for applications requiring reliable connections in demanding environments. It provides flexibility in wiring configurations while ensuring compliance with safety standards.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: PBTD-6-3/0

Technical Specifications

• Catalog Number: PBTD-6-3/0
• Maximum Conductor Size: 3/0 AWG
• Minimum Conductor Size: 6 AWG
• Number of Ports: 6
• Body Material: High dielectric strength plastisol insulated
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 degrees Celsius
• Country of Origin: Mexico
• UPC: 783669077704
• GTIN: 00783669077704
