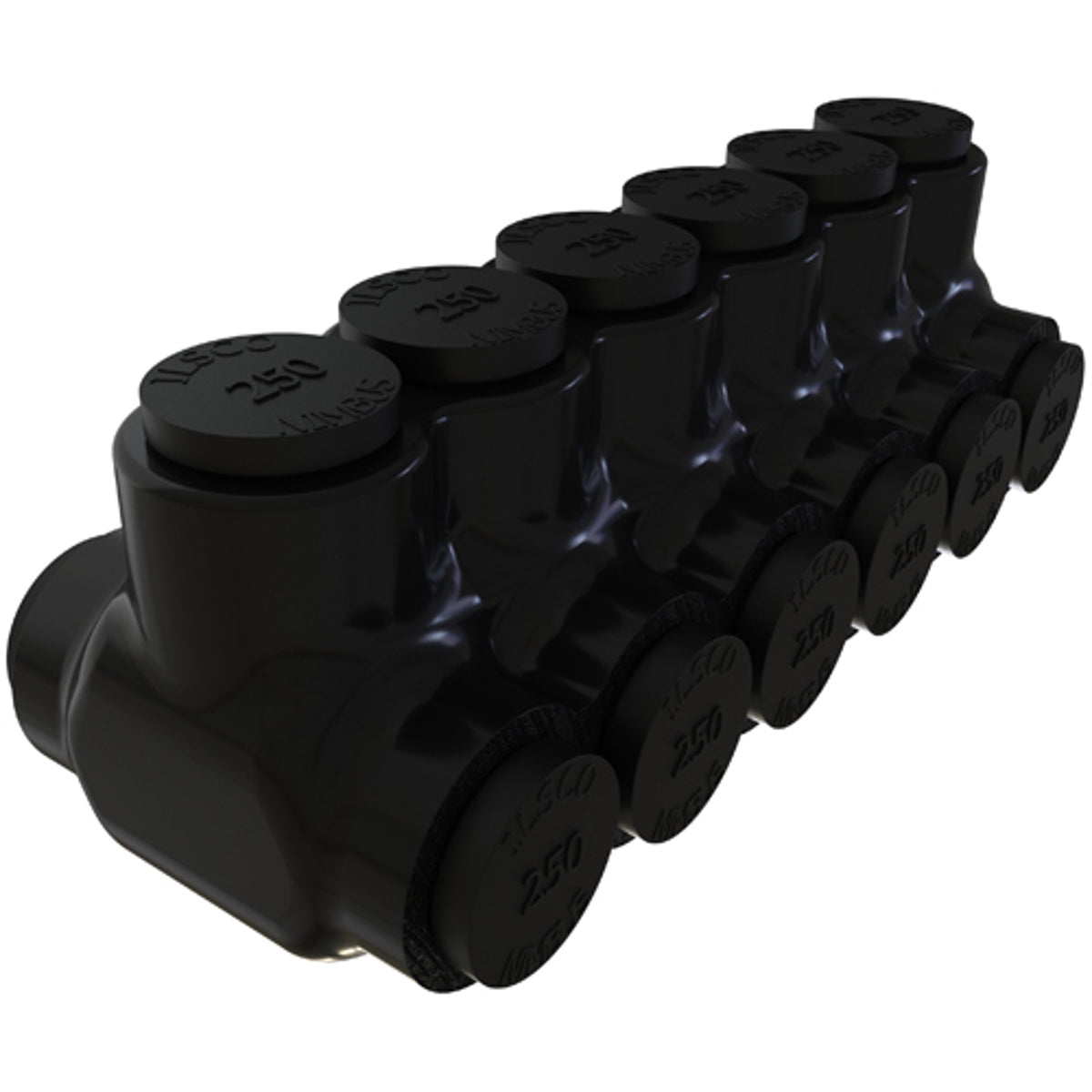

ILSCO PBTD-6-250 Nimbus Insulated Aluminum Multi-Tap Connector Conductor Range 250-6 6 Ports Dual Sided Entry Tin Plated UL CSA

Product Description

The ILSCO PBTD-6-250 is an insulated aluminum multi-tap connector designed for use with copper and aluminum conductors. This connector features six ports for dual-sided entry, making it versatile in various applications. It is UL and CSA listed, ensuring compliance with current safety standards.

• Dual-sided entry for easy wiring connections
• Rated for copper and aluminum conductors
• Complies with UL and CSA standards

Product Highlights

This product supports a broad conductor range and provides reliable connections for electrical systems.

Product Information

Standard Information

• Catalog Number: PBTD-6-250
• Brand: ILSCO
• Manufacturer: ECM Industries
• Country of Origin: Mexico

Technical Specifications

• Conductor Type: Aluminum/Copper
• Voltage Rating: 600 VAC
• Amperage Rating: 290 A
• Temperature Rating: -45 to 90 degrees Celsius
• Dimensions: 5.75 inches L x 2.13 inches W x 2.17 inches H
• Material: Aluminum
• Wire Range: 6 AWG to 250 kcmil
• Standards/Approvals: LR-29601 CSA Certified, RoHS Compliant, UL 453G, UL 486A/B, UL E6207 Listed
