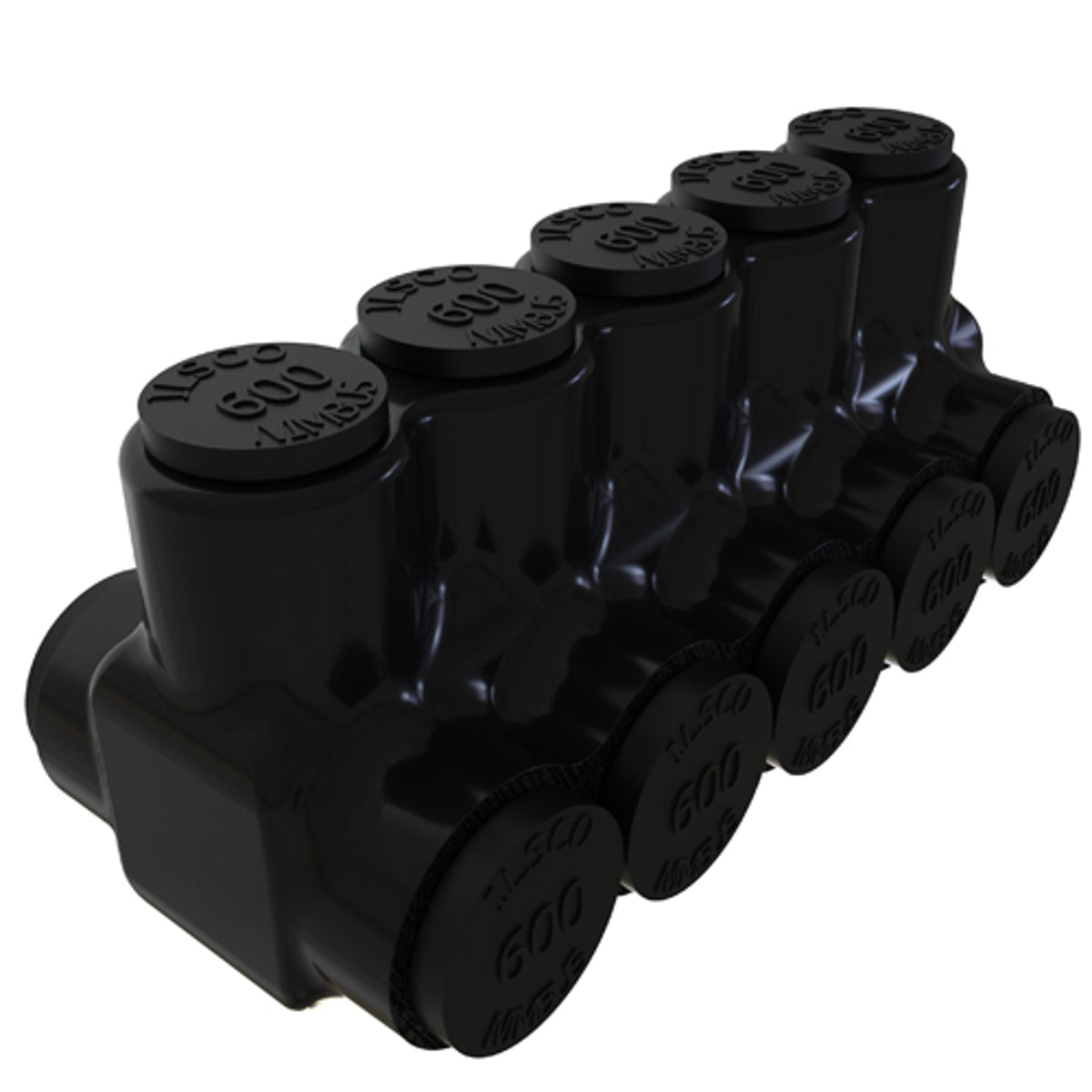

ILSCO PBTD-5-500 Nimbus Insulated Aluminum Multi-Tap Connector 600-4 5 Ports

Product Description

The ILSCO PBTD-5-500 Nimbus Insulated Aluminum Multi-Tap Connector provides an efficient solution for electrical connections. Designed for use with 600 to 4 AWG conductors, it offers five ports and dual-sided entry for ease of use. This product is tin plated for enhanced corrosion resistance.

• Allows for broad wire compatibility from 750 kcmil to 14 AWG
• High dielectric strength for reliable insulation
• Pre-filled with DE-OX oxide inhibiting compound for longevity

Product Highlights

This connector ensures effective electrical connections while preventing oxide formation. Its high amperage rating suitability makes it a versatile choice for various applications.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 783669078466

Technical Specifications

• Catalog Number: PBTD-5-500
• Conductor Type: Aluminum/Copper
• Dimensions: 6.44 inches L x 2.63 inches W x 3.04 inches H
• Voltage Rating: 600 VAC
• Amperage Rating: 475 A
• Temperature Rating: -45 to 90 degrees C
• Mfg Standards/Approvals: LR-29601 CSA Certified, RoHS Compliant, UL 453G, UL 486A/B, UL E6207 Listed
• Country of Origin: Mexico
