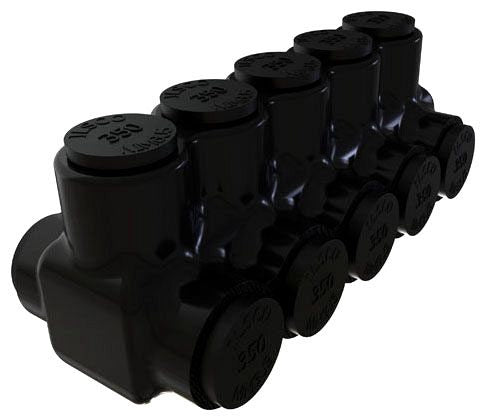

ILSCO PBTD-5-350 INSUL AL MECH (5) 350-6 DUAL TUL CSA

Product Description

ILSCO PBTD-5-350 is an insulated tap connector intended for both copper and aluminum conductors. This connector supports a wire range from six to three hundred fifty KCMIL, making it versatile for different applications. It features dual side entry to facilitate easy installation.

• Suitable for use with various conductor materials.
• Pre-filled with De-Ox for preventing oxide formation.
• UL Listed and CSA Certified for voltage and temperature ratings.

Product Highlights

This connector provides reliable performance in various electrical applications, ideal for electricians and contractors.

Product Information

Standard Information

• Catalog Number: PBTD-5-350
• Manufacturer: ECM Industries

Technical Specifications

• Manufacturer Name: ILSCO
• UPC: 783669078206
• Maximum Conductor Size: 350 KCMIL
• Minimum Conductor Size: 6 AWG
• Number of Ports: 5
• Body Material: High Dielectric Strength Plastisol Insulated
• Cable Entry: 2 Side Entry
• Approval: UL 453G, UL 486A/B, CSA
