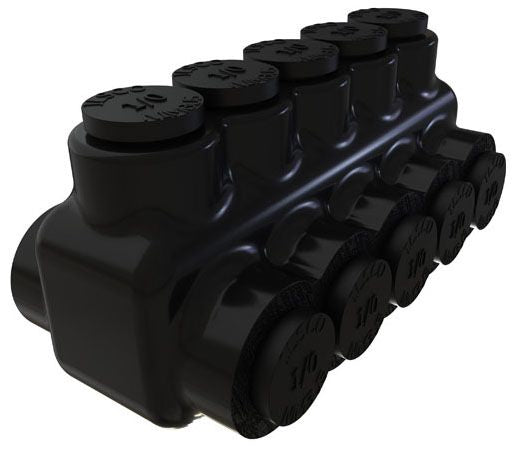

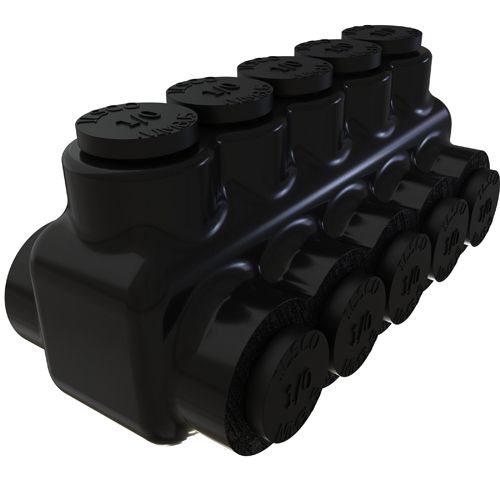

Ilsco PBTD-5-1/0 Nimbus Insulated Aluminum Multi-Tap Connector 600 Volt (Pack of Five Ports) Replacement MPN

Product Description

The Ilsco PBTD-5-1/0 is a Nimbus Insulated Aluminum Multi-Tap Connector. It is designed to connect multiple conductors efficiently. This connector supports a conductor range from one over zero AWG to fourteen AWG, making it versatile for different applications.

• Five ports for optimal conductor connections.
• Compatible with both aluminum and copper conductors.
• High durability with tin-plated finish and rated for six hundred volts.

Product Highlights

This multi-tap connector allows for dual-sided entry, facilitating easy installation and maintenance. It includes Plastisol insulation, ensuring reliability in cold conditions.

Product Information

Standard Information

• Brand: Ilsco
• MPN: PBTD-5-1/0

Technical Specifications

• Conductor Type: Solid, Stranded
• Conductor Material: Aluminum, Copper
• Number of Ports: 5
• Voltage Rating: 600 Volt
• Amperage Rating: 170 Amp
• Temperature Rating: 90 degrees C, cold temperature rated to -45 degrees C
• Dimensions: 3.498 inches (length) x 1.825 inches (width) x 1.627 inches (height)
• Weight: 0.352 lb
• Standard Compliance: UL 486A/B, CSA
