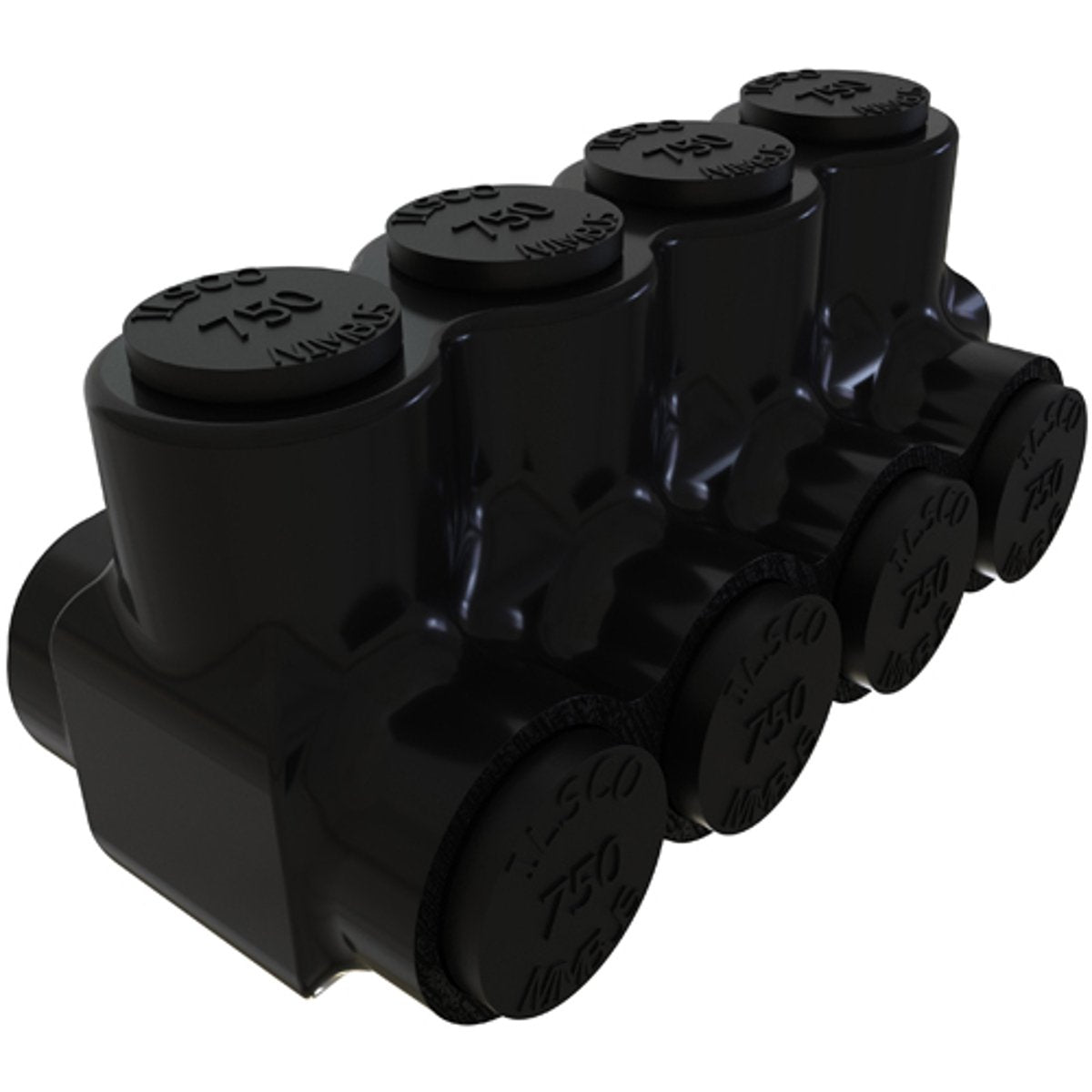

Ilsco PBTD-4-750 Nimbus Insulated Aluminum Multi-Tap Connector 750-250 (4 Ports) Replacement MPN

Product Description

The Ilsco PBTD-4-750 is an insulated aluminum multi-tap connector designed for flexibility and reliability in electrical applications. It accommodates a conductor range from seven hundred fifty to two hundred fifty KCMIL, making it suitable for a variety of installations. This connector features four ports and offers dual-sided entry, which simplifies the wiring process and enhances versatility.

• Compatible with copper and aluminum conductors.
• Rated for high temperatures and cold environments.
• UL listed and CSA certified for safety and reliability.

Product Highlights

Use this multi-tap connector to efficiently create connections in electric systems, ensuring a stable link for both residential and commercial projects.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: PBTD-4-750
• Maximum Conductor Size: 750 KCMIL
• Minimum Conductor Size: 250 KCMIL
• Number Of Ports: 4
• Body Material: High dielectrial strength plastisol insulated
• Approval: UL 453G, UL 486A/B, CSA
• Conductor Material: Copper/Aluminum
• Cable Entry: 2 side entry
