Product Description

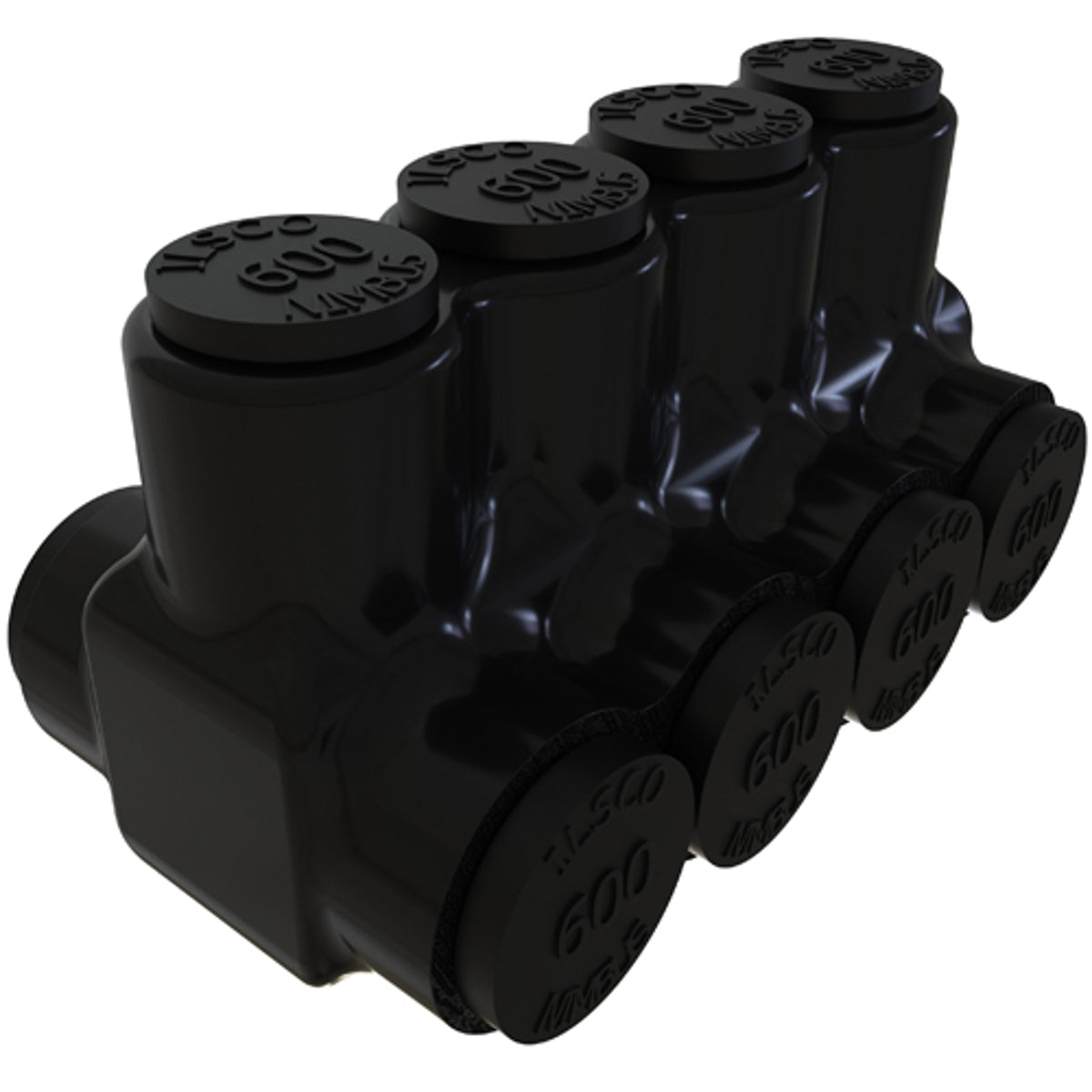

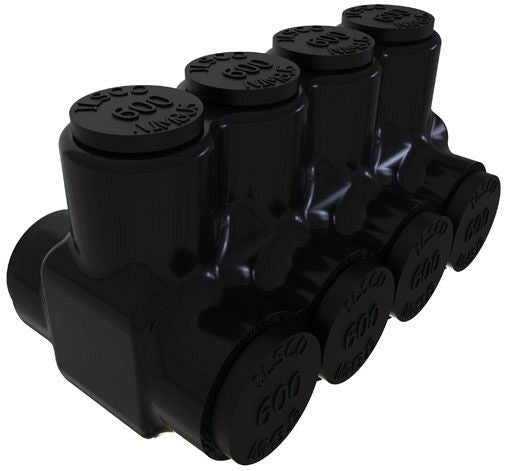

The ILSCO PBTD-4-500 Nimbus Insulated Aluminum Multi-Tap Connector is designed for flexible and reliable connections in electrical systems. This connector accommodates conductors ranging from four AWG to six hundred KCMIL with four ports for convenient access. The connector features dual-sided entry and is UL and CSA certified to ensure safety and compliance.
- Flexible connector for various conductor sizes
- Pre-filled with DE-OX oxide inhibitor
- UV-rated cover prevents deterioration
Product Highlights
This connector offers ease of installation, prevents oxidation, and enhances electrical performance by ensuring a reliable connection.
Product Information
Standard Information
-
Brand: ILSCO
-
Manufacturer: ECM Industries
Technical Specifications
-
Catalog Number: PBTD-4-500
-
Number of Ports: 4
-
Wire Range: 4 AWG to 600 KCMIL
-
Body Material: High Dielectric Strength Plastisol
-
Conductor Material: Aluminum/Copper
-
Voltage Rating: 600 VAC
-
Temperature Rating: -45 to 90 degrees C
-
Country of Origin: Mexico
