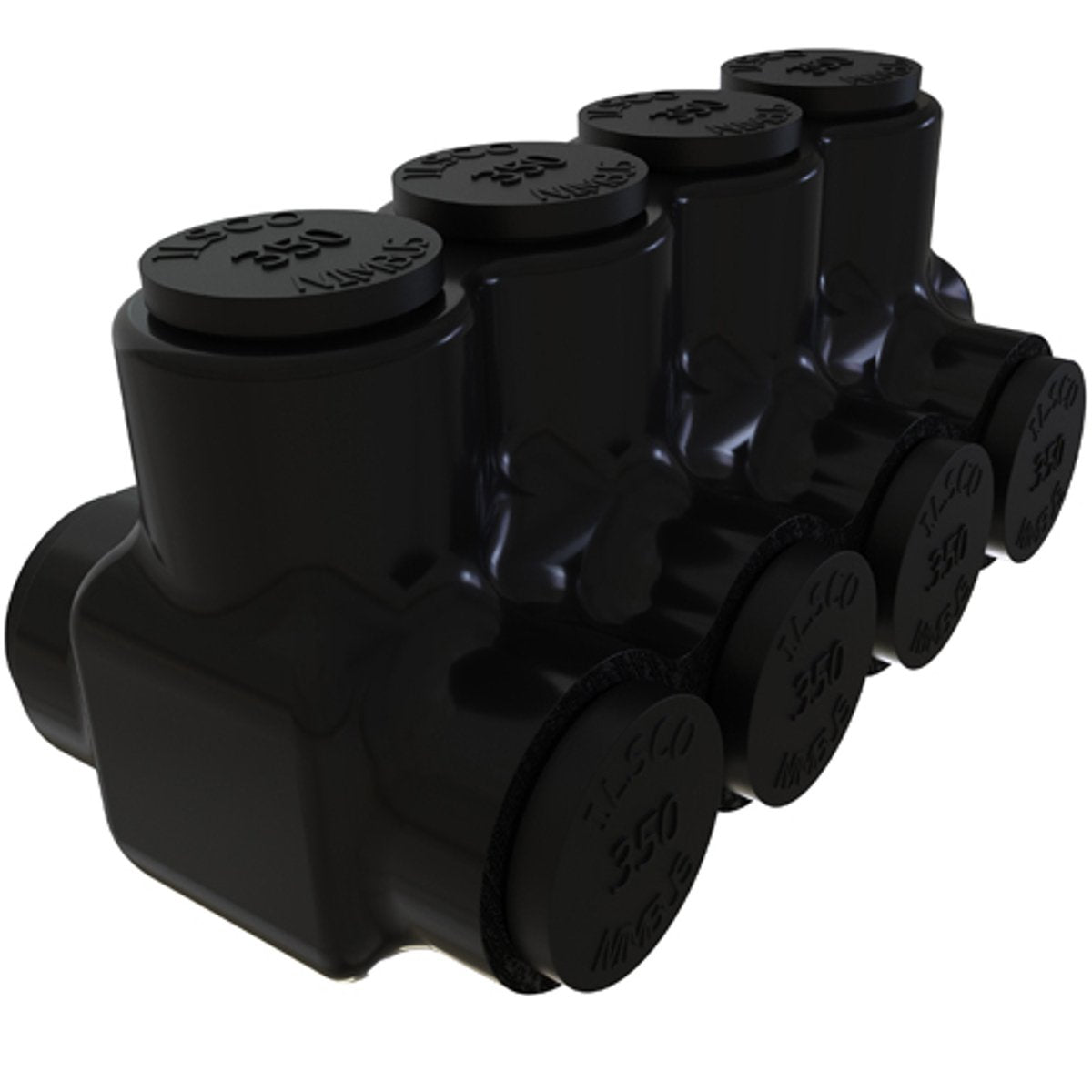

ILSCO PBTD-4-350 Nimbus Insulated Aluminum Multi-Tap Connector Conductor Range 350-6 4 Ports Dual Sided Entry

Product Description

ILSCO PBTD-4-350 is a Nimbus Insulated Aluminum Multi-Tap Connector designed to connect multiple conductors quickly and reliably. This connector supports a conductor range from six AWG to three hundred and fifty KCMIL. It features four ports and allows for dual-sided entry, making it suitable for diverse applications.

• Supports conductor sizes from six AWG to three hundred and fifty KCMIL.
• UL Listed and CSA Certified for safety and reliability.
• High dielectric strength plastisol insulation provides chemical resistance and UV protection.

Product Highlights

This connector is ideal for electricians and contractors who need flexibility in field applications, ensuring secure connections in various environments.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: PBTD-4-350
• Conductor Type: Copper/Aluminum
• Maximum Conductor Size: 350 KCMIL
• Minimum Conductor Size: 6 AWG
• Number of Ports: 4
• Approval: UL 453G, UL 486A/B, CSA
• Temperature Rating: -45 to 90 degrees Celsius
• Voltage Rating: 600 VAC
• Body Material: High Dielectric Strength Plastisol Insulated
• Country of Origin: Mexico
