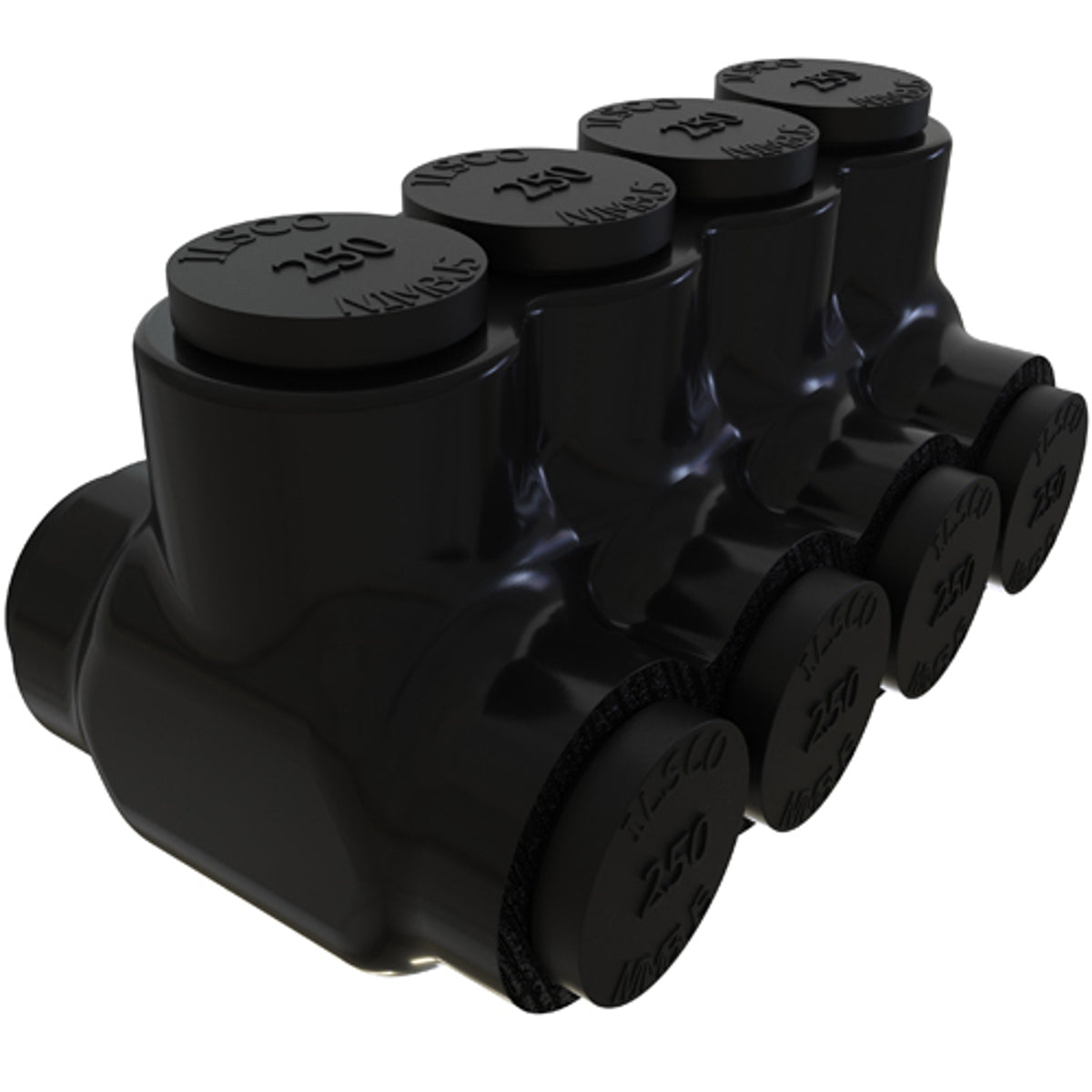

ILSCO PBTD-4-250 Nimbus Insulated Aluminum Multi-Tap Connector Conductor Range 250-6 4 Ports Dual Sided Entry Tin Plated UL CSA

Product Description

ILSCO PBTD-4-250 is a versatile insulated aluminum multi-tap connector. It is designed for dual-sided entry and accommodates conductor sizes from six AWG to two hundred fifty KCMIL. The unit has four ports for efficient connectivity and is made to UL and CSA standards.

• Constructed from high dielectric strength plastisol.
• Features four ports for enhanced wiring options.
• Designed for aluminum and copper conductors.

Product Highlights

This connector ensures flexibility and reliability in field applications. It inhibits oxide formation which enhances connection integrity and promotes longer service life.

Product Information

Standard Information

• Catalog Number: PBTD-4-250
• Manufacturer: ECM Industries
• Brand: ILSCO
• Country of Origin: Mexico
• UPC: 783669077926
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 deg C

Technical Specifications

• Body Material: High Dielectric Strength Plastisol
• Conductor Material: Aluminum/Copper
• Maximum Conductor Size: 250 KCMIL
• Minimum Conductor Size: 6 AWG
• Number Of Ports: 4
• Approval: UL 453G, UL 486A/B, CSA
