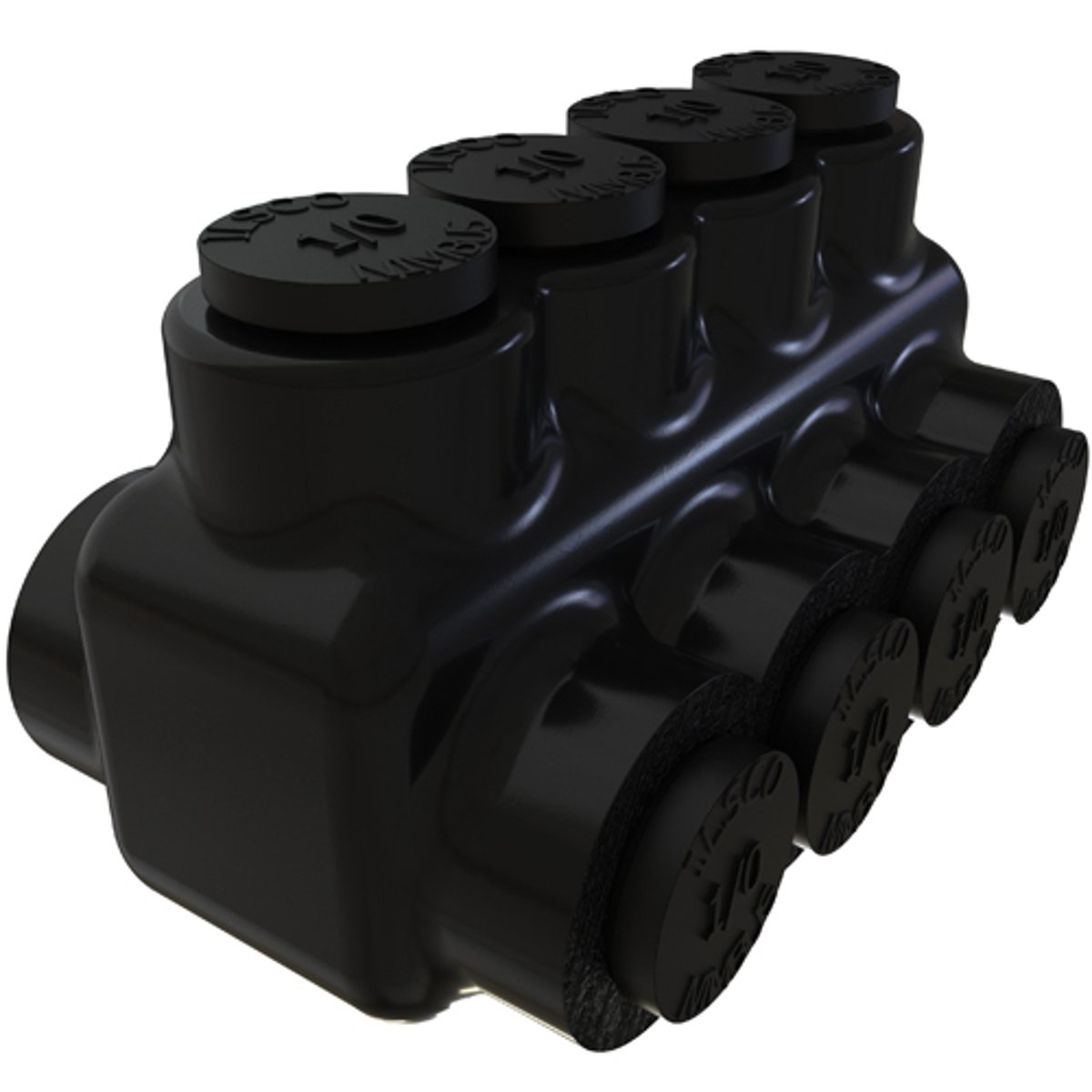

ILSCO PBTD-4-1/0 Nimbus Insulated Aluminum Multi-Tap Connector Conductor Range 1/0-14 4 Ports

Product Description

ILSCO PBTD-4-1/0 is a Nimbus insulated aluminum multi-tap connector designed for a conductor range of one aught to fourteen. This connector features four ports with dual-sided entry for easier installation. It is suitable for both copper and aluminum conductors and is UL listed and CSA certified.

• Wide conductor compatibility from one aught to fourteen
• Four ports with two-sided entry
• UL listed and CSA certified

Product Highlights

This product ensures reliability and flexibility in various electrical applications, making it ideal for electricians and technicians.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: PBTD-4-1/0
• Country of Origin: Mexico
• Conductor Size Range: 1/0 AWG to 14 AWG
• Material: Aluminum
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 degrees Celsius
• Number of Ports: 4
• Body Material: High dielectric strength plastisol insulated
• Package Dimensions: 2.92 inches L x 1.63 inches W x 1.63 inches H
• Approval Standards: UL 453G, UL 486A/B, CSA
