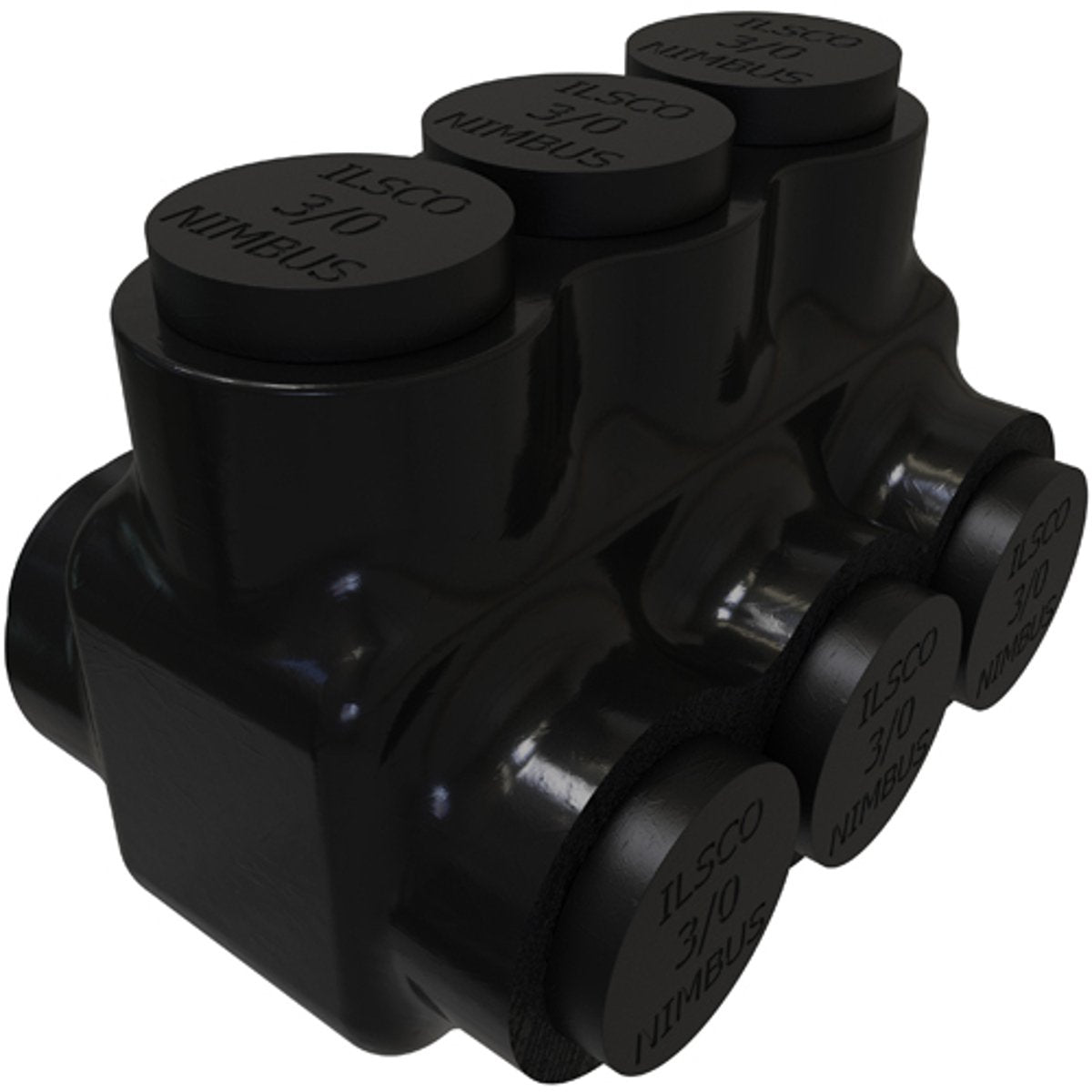

ILSCO PBTD-3-3/0 Nimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 3/0-6, 3 Ports, Dual Sided Entry, Tin Plated, UL, CSA

Brand: ILSCO
SKU: PBTD-3-3/0
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12pm

$87.96
$87.96
Manuals:
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The ILSCO PBTD-3-3/0 is a highly reliable multi-tap connector designed for electrical applications. This insulated aluminum connector accommodates a conductor range of three-aught to six American Wire Gauge (AWG) with three ports for dual-sided entry. It is UL listed and CSA certified, ensuring compliance with industry standards.

  • Rated for copper or aluminum conductors
  • Features three ports for flexibility in wiring
  • UV-rated black cover ensures durability

Product Highlights

This connector is suitable for various wiring needs in residential and commercial applications. It provides exceptional performance in environments requiring reliable electrical connections.

Product Information

Standard Information

  • Manufacturer: ECM Industries
  • Country of Origin: Mexico

Technical Specifications

  • Catalog Number: PBTD-3-3/0
  • Conductor Size: 3/0 AWG to 6 AWG
  • Material: High dielectric strength plastisol insulated
  • Amperage Rating: 225 A
  • Voltage Rating: 600 VAC
  • Temperature Range: -45 to 90 degrees Celsius
  • Number Of Ports: 3
  • Approvals: UL 453G, UL 486A/B, CSA
