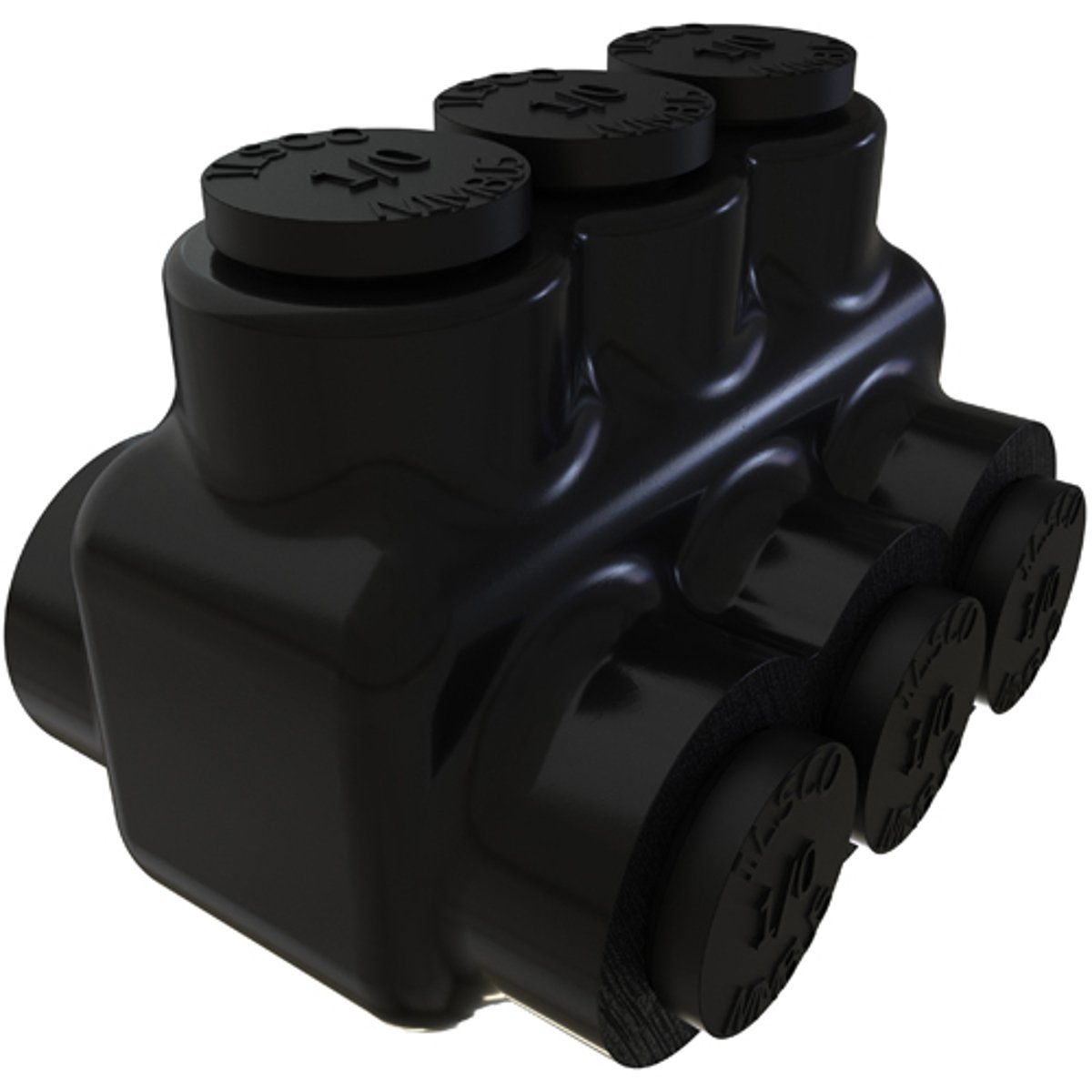

ILSCO PBTD-3-1/0 Nimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 1/0-14, 3 Ports, Dual Sided Entry

Product Description

The ILSCO PBTD-3-1/0 is a Nimbus Insulated Aluminum Multi-Tap Connector designed for use with conductors ranging from one aught to fourteen AWG. This connector features three ports with dual-sided entry. It is suitable for both copper and aluminum conductors. The ILSCO PBTD-3-1/0 ensures reliable connections in various applications.

• Dual rated for copper and aluminum conductors
• Broad conductor range from 1/0 to 14 AWG
• UL Listed and CSA Certified with a rating up to 600 volts

Product Highlights

This connector is ideal for both residential and industrial electrical applications.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Brand: ILSCO

Technical Specifications

• Catalog Number: PBTD-3-1/0
• Conductor Material: Copper/Aluminum
• Number of Ports: 3
• Maximum Conductor Size: 1/0 AWG
• Minimum Conductor Size: 14 AWG
• Body Material: High Dielectric Strength Plastisol Insulated
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 degrees C
• Approval Standards: UL 453G, UL 486A/B, CSA
