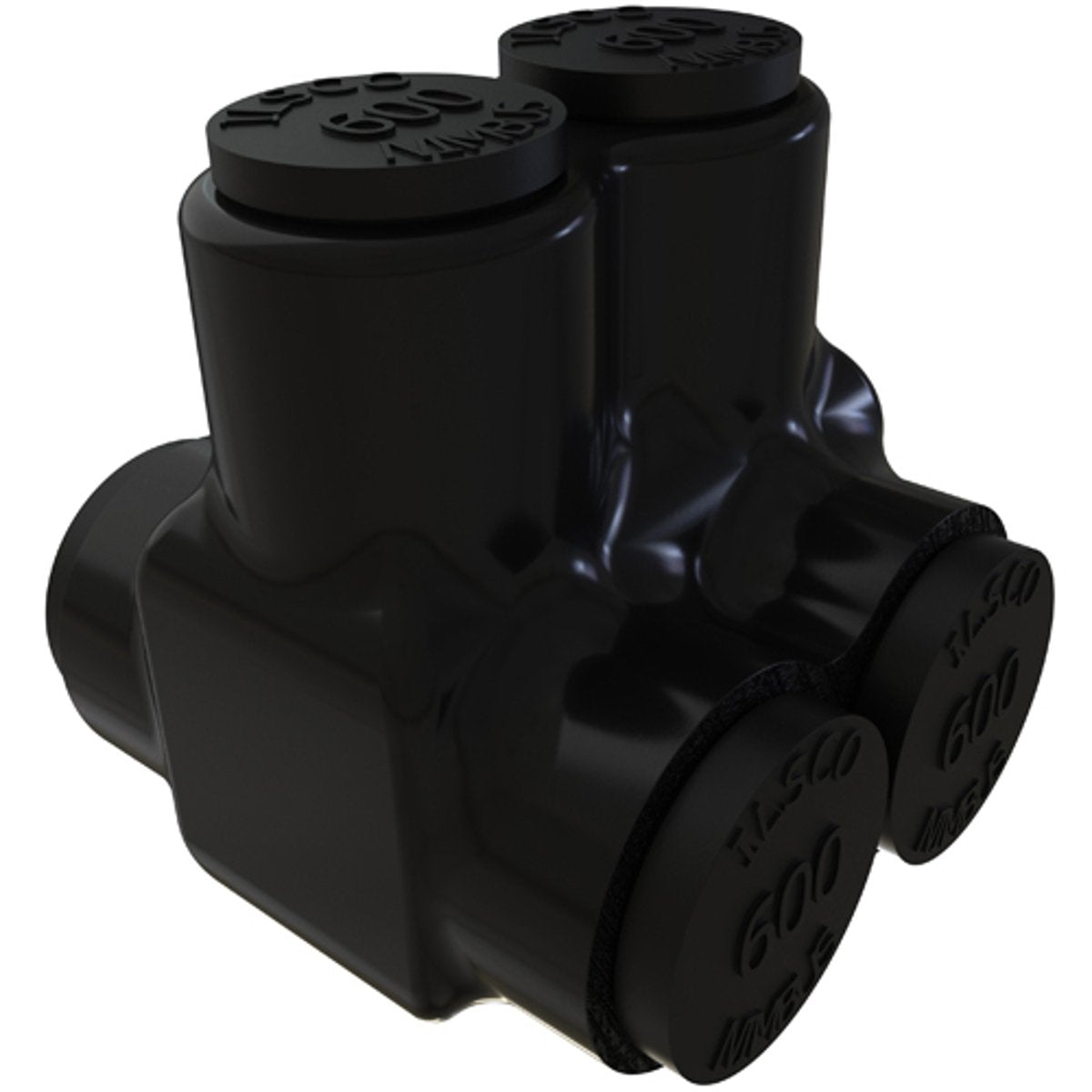

ILSCO PBTD-2-500 Nimbus Insulated Aluminum Multi-Tap Connector 600-4 Dual Ports UL CSA

Product Description

The ILSCO PBTD-2-500 is an insulated multi-tap connector designed for aluminum and copper conductors. This connector accommodates a range of conductors, including sizes from four AWG to six hundred KCMIL. Its dual-sided entry allows for flexibility in installation. The product is UL listed and CSA certified for safety and reliability.

• Supports conductor sizes from 4 AWG to 600 KCMIL.
• Features a high dielectric strength plastisol insulation.
• Includes a removable plug entry port for easy access.

Product Highlights

Designed for outdoor and indoor use, the PBTD-2-500 is equipped with UV-rated materials, making it suitable for various environmental conditions. The connector is pre-filled with De-Ox to prevent oxidation, ensuring long-lasting performance.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• UPC: 783669078404
• Number Of Ports: 2
• Maximum Conductor Size: 600 KCMIL
• Minimum Conductor Size: 4 AWG
• Country of Origin: Mexico
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 degrees Celsius
• Approval Standards: UL 453G, UL 486A/B, CSA Certified
