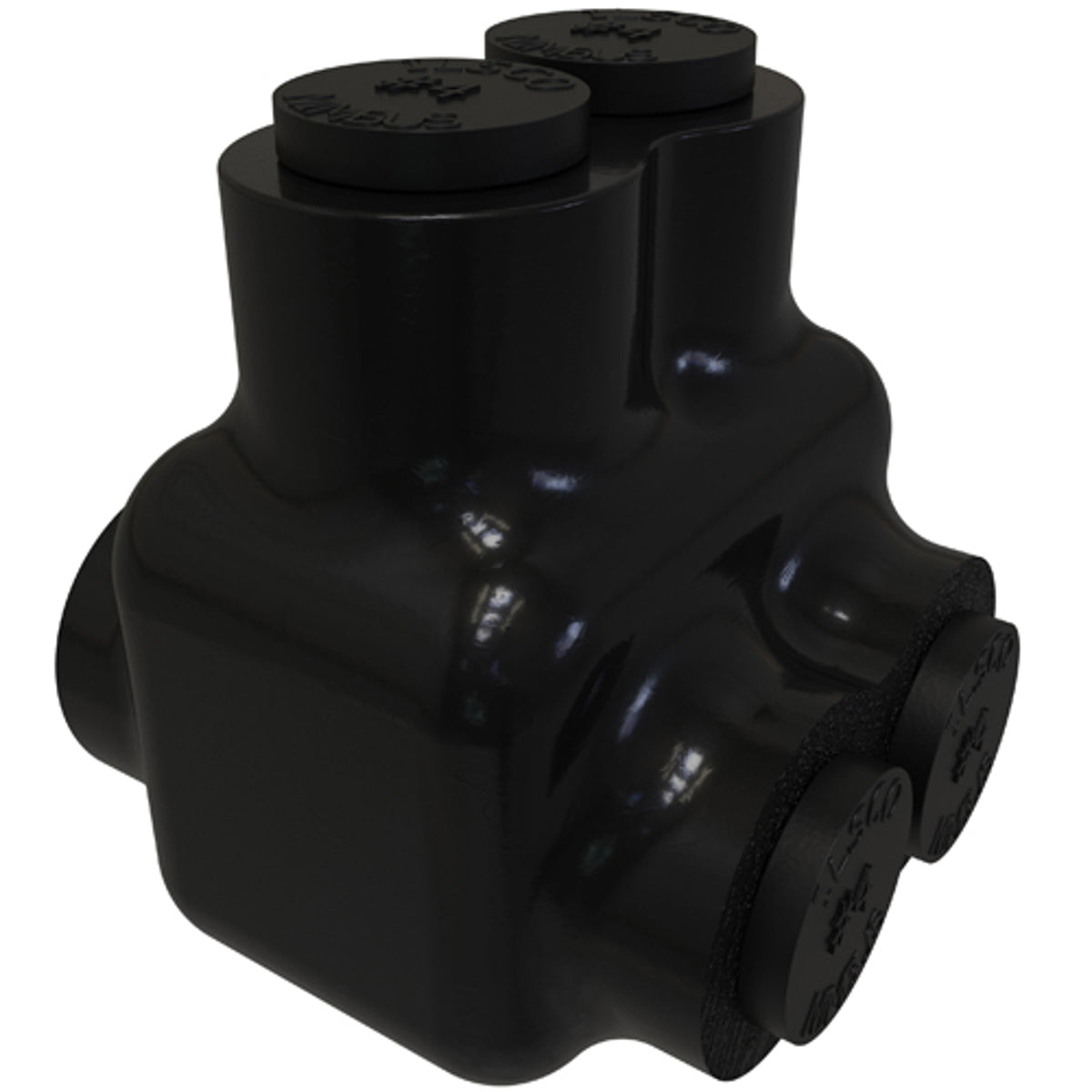

ILSCO PBTD-2-4 Nimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 4-14, 2 Ports, Dual Sided Entry, Tin Plated

Product Description

The ILSCO PBTD-2-4 is an insulated aluminum multi-tap connector designed for various electrical applications. This dual-sided entry connector accommodates conductor sizes ranging from fourteen to four AWG, making it versatile for different wiring needs.

• Insulated for safety
• Two entry ports for easy installation
• Compatible with both aluminum and copper conductors

Product Highlights

This product ensures reliability and ease of use in field conditions. It is also compliant with UL and CSA standards, indicating its suitability for demanding environments.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: PBTD-2-4
• Conductor Material: Copper/Aluminum
• Approval: UL 453G, UL 486A/B, CSA
• Body Material: High Dielectric Strength Plastisol Insulated
• Dimensions: One point two four inches L x one point two five inches W x one point four two inches H
• Temperature Rating: Minus forty-five to ninety degrees Celsius
• Voltage Rating: Six hundred VAC
• Amperage Rating: Ninety-five A
