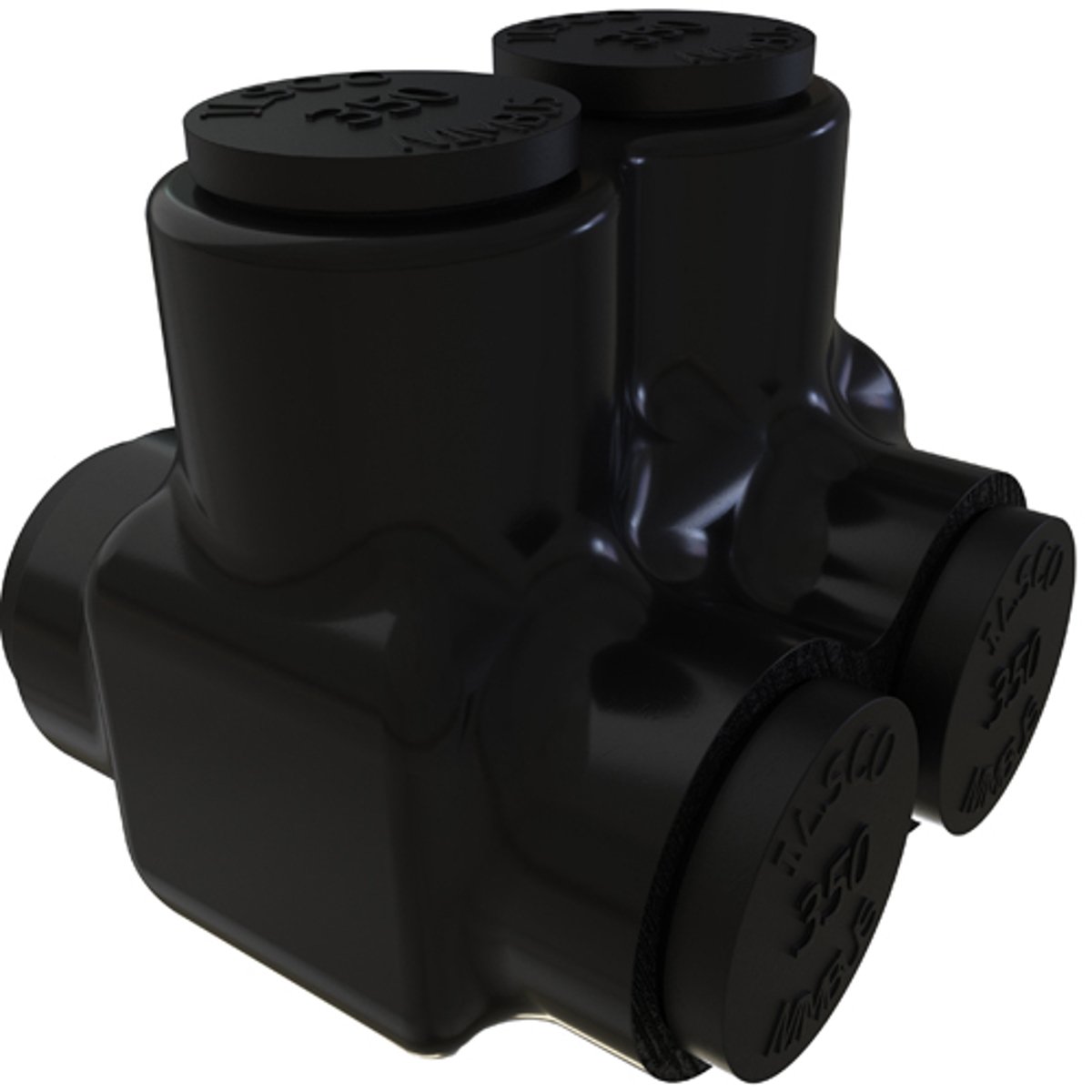

ILSCO PBTD-2-350 Nimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 350-6, 2 Ports, Dual Sided Entry

Product Description

The ILSCO PBTD-2-350 is a Nimbus insulated aluminum multi-tap connector designed for both copper and aluminum conductors. This connector is suitable for wire sizes ranging from 350 kcmil to 6 AWG. It features 2 ports and dual-sided entry for versatile installation options. The connector is UL listed and CSA certified for use in environments up to six hundred volts.

• Conductor range: 350 kcmil to 6 AWG
• Two ports for connection flexibility
• Dual rated for copper or aluminum conductors

Product Highlights

The ILSCO PBTD-2-350 provides reliable connections for electrical systems requiring robust performance under various conditions. The entry ports are UV rated to ensure longevity in outdoor applications, and the plug closure is removable for easier access. The pre-filled de-oxidation compound prevents corrosion and enhances conductivity.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Maximum Conductor Size: 350 KCMIL
• Minimum Conductor Size: 6 AWG
• Number of Ports: 2
• Body Material: High Dielectric Strength Plastisol
• Temperature Rating: -45 to 90 degrees Celsius
• Voltage Rating: 600 VAC
• Country of Origin: Mexico
