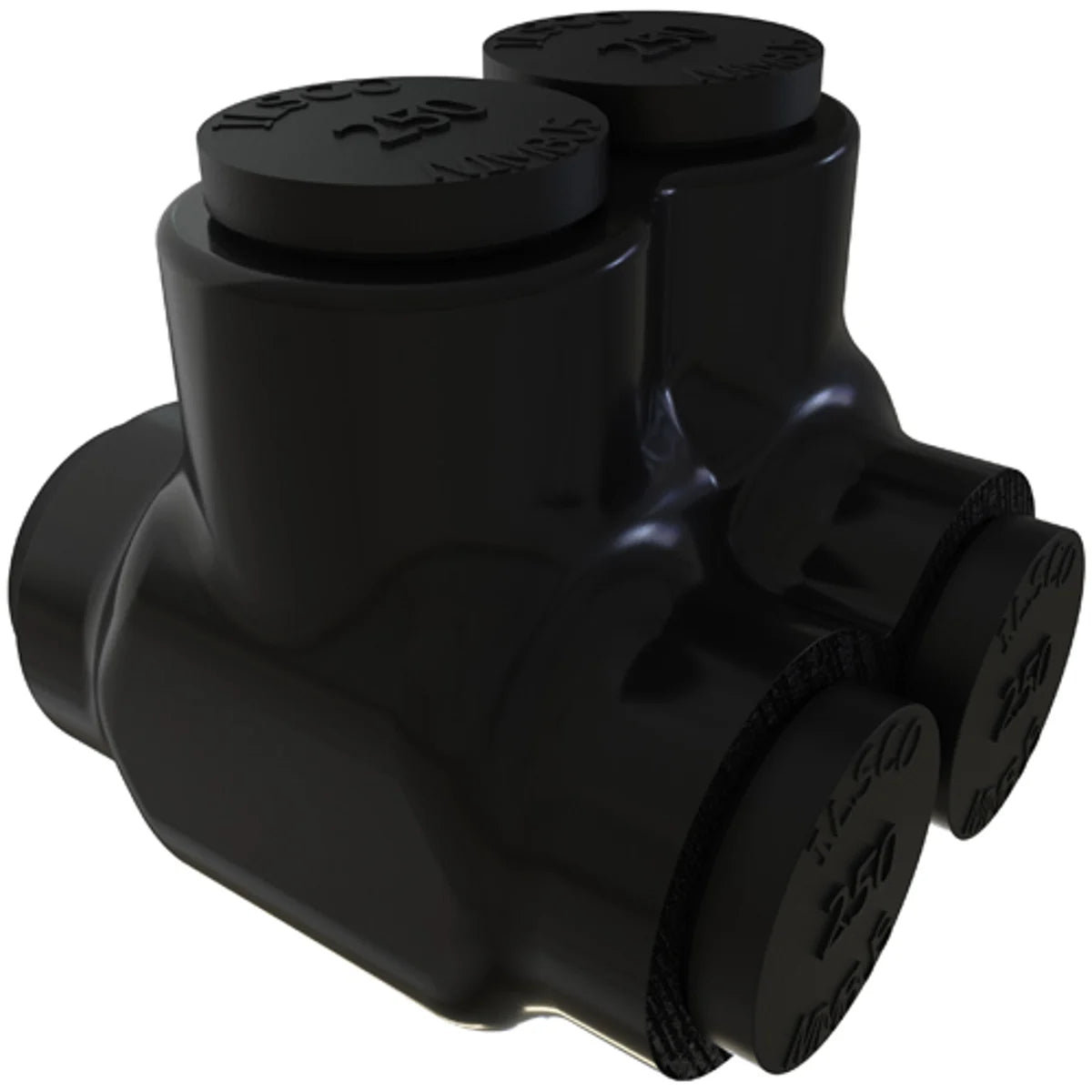

ILSCO PBTD-2-250 Nimbus Insulated Aluminum Multi-Tap Connector 250-6 2 Ports

Product Description

The ILSCO PBTD-2-250 Nimbus Insulated Aluminum Multi-Tap Connector is designed for reliable electrical connections. This connector accommodates conductors ranging from six AWG to two hundred fifty KCMIL and features two side entry ports, allowing flexibility in various applications.

• Two side entry ports
• Accepts conductors from six AWG to two hundred fifty KCMIL
• UL Listed and CSA certified for safety

Product Highlights

This connector is suitable for both copper and aluminum conductors, ensuring versatility. The design incorporates a high dielectric strength plastisol material, providing chemical resistance and durability. Its removable plug feature is designed to prevent oxides from forming.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Brand: ILSCO

Technical Specifications

• Catalog Number: PBTD-2-250
• Approval: UL 453G, UL 486A/B, CSA
• Body Material: High Dielectric Strength Plastisol Insulated
• Conductor Material: Copper/Aluminum
• Maximum Conductor Size: 250 KCMIL
• Minimum Conductor Size: 6 AWG
• Number of Ports: 2
• Country of Origin: Mexico
