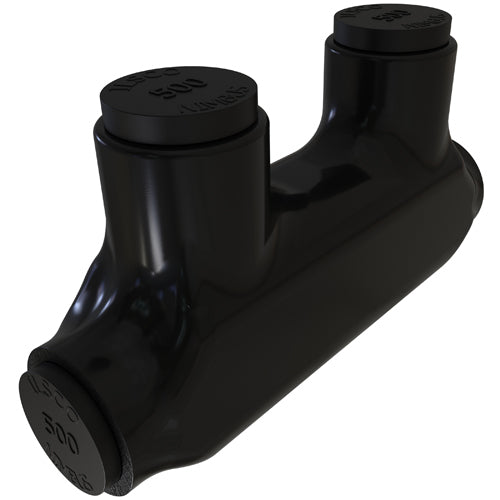

ILSCO PBT-500 Nimbus Insulated Aluminum In-Line Splicer-Reducer Connector, Conductor Range 500-4, 2 Ports, Tin Plated, UL, CSA

Product Description

The ILSCO PBT-500 is an insulated in-line splicer-reducer connector designed for copper or aluminum conductors with a range from four AWG to five hundred KCMIL. This connector features two ports and is suitable for a variety of electrical applications, ensuring a reliable connection.

• Dual rated for copper or aluminum conductor
• Removable port and screw plugs for easy access
• Prefilled with De-Ox to prevent oxidation

Product Highlights

This connector is designed for flexibility in the field and ensures consistent performance under various conditions.

Product Information

Standard Information

• Manufacturer: ILSCO
• Catalog Number: PBT-500
• Country of Origin: Mexico
• UPC: 783669077063

Technical Specifications

• Approval: UL 453G, UL 486A/B, CSA
• Body Material: High Dielectric Strength Plastisol Insulated
• Cable Entry: In-Line
• Conductor Material: Copper/Aluminum
• Maximum Conductor Size: 500 KCMIL
• Minimum Conductor Size: 4 AWG
• Product UPC: 783669077063
