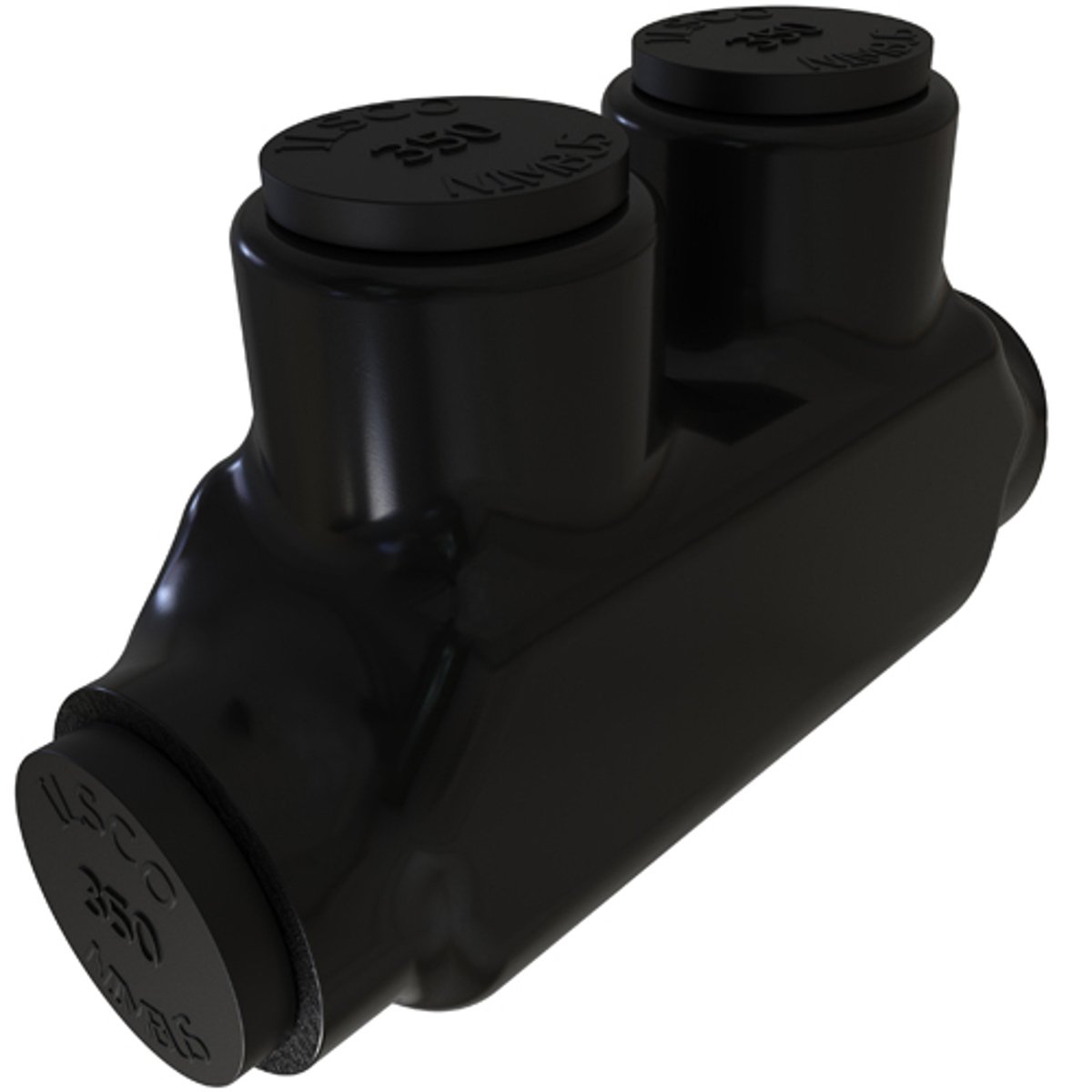

ILSCO PBT-350 Nimbus Insulated Aluminum In-Line Splicer-Reducer Connector, Conductor Range 350-6, 2 Ports, Tin Plated

Product Description

The ILSCO PBT-350 is a Nimbus Insulated Aluminum In-Line Splicer-Reducer Connector. This product supports conductor ranges from three hundred fifty to six AWG. It features two ports and is suitable for both copper and aluminum conductors. This connector is UL and CSA certified, ensuring compliance with safety standards.

• Dual Rated for Copper or Aluminum Conductor
• Removable Port and Screw Plugs
• Prefilled with De-Ox for enhanced reliability

Product Highlights

This connector offers flexibility in field applications and includes a chemical-resistant cover. It is designed to prevent oxide formation. Its removable plugs provide easy access for maintenance and adjustments.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Approval: UL 453G, UL 486A/B, CSA
• Body Material: High Dielectric Strength Plastisol Insulated
• Maximum Conductor Size: 350 KCMIL
• Minimum Conductor Size: 6 AWG
• Country of Origin: Mexico
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 degrees Celsius
• Product UPC: 783669077049
