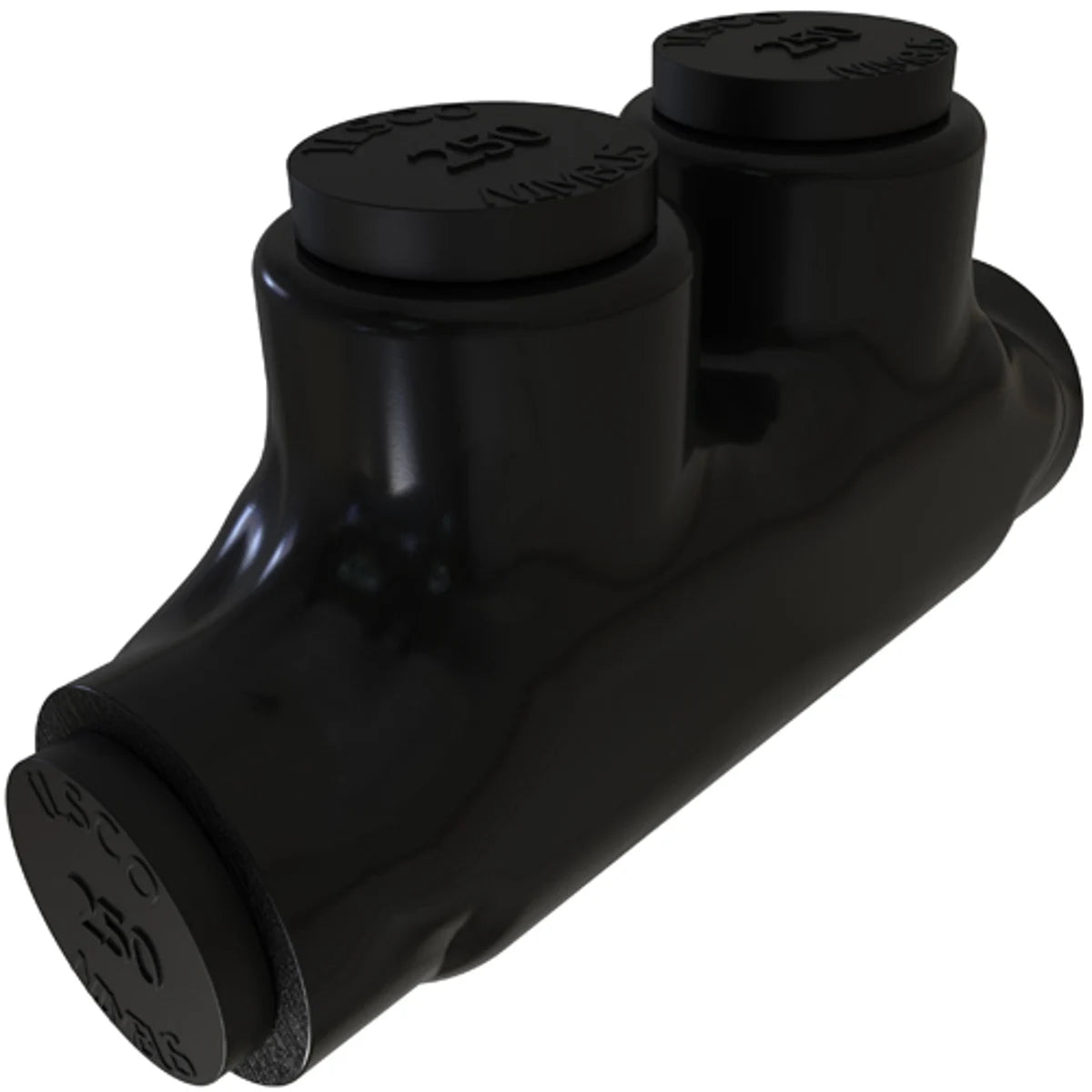

ILSCO PBT-250 Nimbus Insulated Aluminum In-Line Splicer-Reducer Connector 250-6

Product Description

The ILSCO PBT-250 is a Nimbus Insulated Aluminum In-Line Splicer-Reducer Connector designed for use with aluminum and copper conductor materials. This connector supports a conductor range of six to two hundred fifty KCMIL. It features two ports for efficient connectivity in electrical applications.

• Constructed from high dielectric strength plastisol.
• Meets UL and CSA standards for safety and reliability.
• Pre-filled with DE-OX compound to prevent oxide formation.

Product Highlights

This connector ensures flexibility in the field and allows for reliable performance in various electrical applications.

Product Information

Standard Information

• Catalog Number: PBT-250
• Manufacturer: ECM Industries

Technical Specifications

• Body Material: High Dielectric Strength Plastisol
• Conductor Material: Aluminum/Copper
• Maximum Conductor Size: 250 KCMIL
• Minimum Conductor Size: 6 AWG
• Number Of Ports: 2
• Approval: UL 453G, UL 486A/B, CSA
