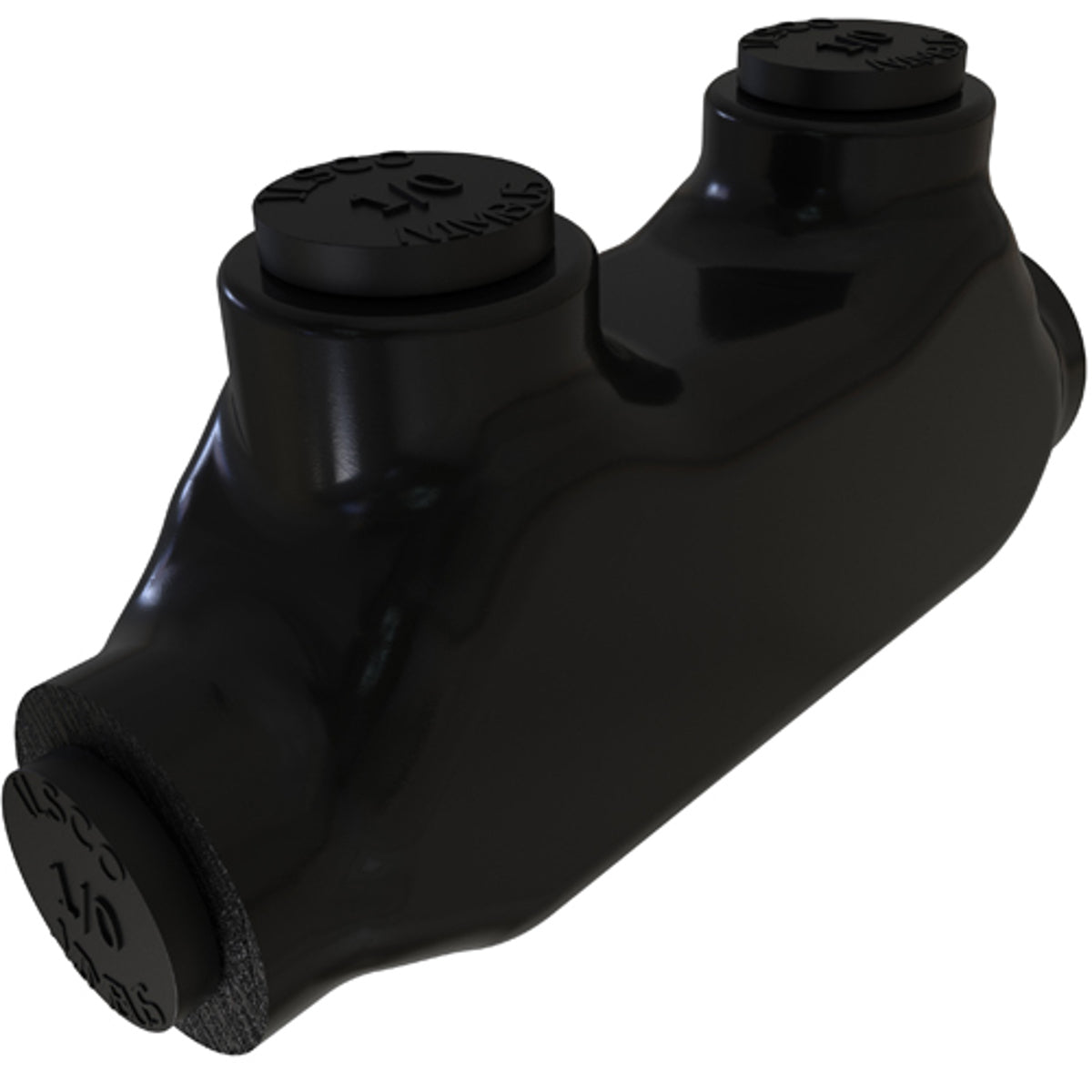

ILSCO PBT-1/0 Nimbus Insulated Aluminum In-Line Splicer-Reducer Connector, Conductor Range 1/0-14, 2 Ports, Tin Plated, UL, CSA

Product Description

The ILSCO PBT-1/0 is an insulated aluminum in-line splicer-reducer connector suitable for conductor ranges from one aught to fourteen AWG. This connector is designed to ensure reliable electrical connections in various applications. It features two ports and is made from high dielectric strength plastisol.

• Suitable for aluminum and copper conductors
• Two ports for efficient connections
• Meets UL and CSA standards

Product Highlights

This connector provides flexibility in field applications while preventing the formation of oxides.

Product Information

Standard Information

• Manufacturer: ILSCO
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: PBT-1/0
• Conductor Material: Aluminum/Copper
• Maximum Conductor Size: 1/0 AWG
• Minimum Conductor Size: 14 AWG
• Approval: UL 453G, UL 486A/B, CSA
• Number of Ports: 2
• Material: High Dielectric Strength Plastisol
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 degrees Celsius
