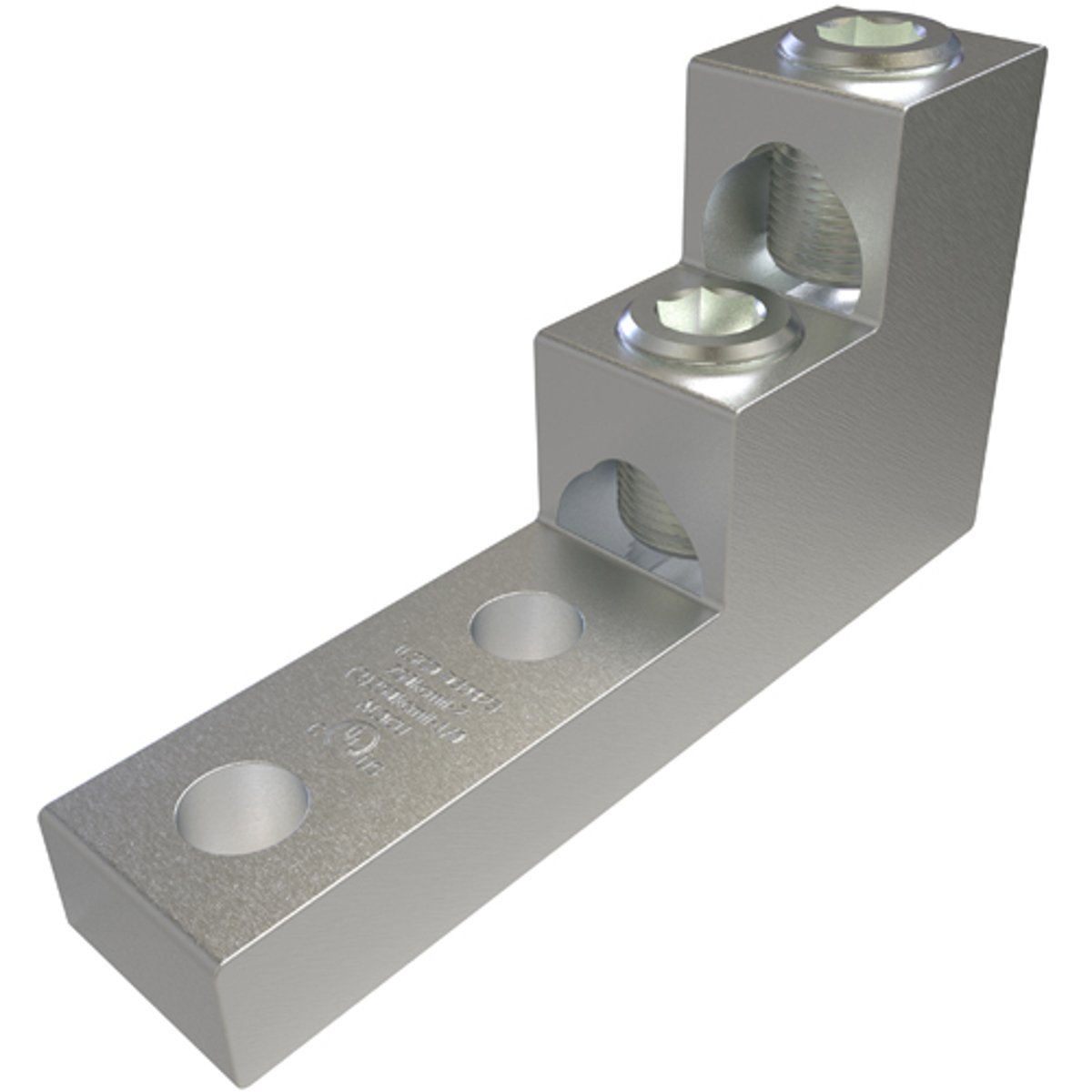

ILSCO PBMW-2-750-12 Aluminum Panelboard Lug Multi Wire Dual Rated Conductor Range 750-2 2 Ports 2 Holes

Product Description

The ILSCO PBMW-2-750-12 is an aluminum panelboard lug designed for multi-wire applications. It accommodates conductor ranges from seven hundred fifty to two kcmil. This lug features two ports and two holes for secure connections at a half-inch bolt size with one and three-quarter inch hole spacing.

• Durable aluminum construction
• Dual rated for use with both aluminum and copper conductors
• UL and CSA certified for safety and compliance

Product Highlights

The ILSCO PBMW-2-750-12 is versatile and reliable for electrical installations. It is suitable for panelboards and other electrical connections requiring secure and efficient multi-wire terminations.

Product Information

Standard Information

• Catalog Number: PBMW-2-750-12
• Manufacturer: ECM Industries

Technical Specifications

• Country of Origin: Mexico
• Material: Aluminum
• Conductor Type: Stranded
• Temperature Rating: 90°C
• Voltage Rating: 35 kV
• Weight: 0.973 lbs
• Height: 3 in
• Width: 1.31 in
• Length: 5.687 in
