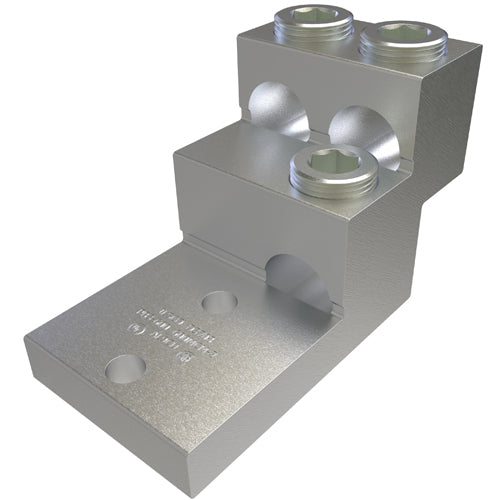

Ilsco PB3-600 Aluminum Panelboard Lug Conductor Range 600-2 3 Ports 2 Holes 3/8in Bolt Size

Product Description

Ilsco PB3-600 is an aluminum panelboard lug designed for conductor sizes from 2 AWG to 600 MCM. It features a dual-rated construction for both copper and aluminum conductors. This component has a compact design with three ports and two holes, making it efficient for various installations.

• Compatible with both copper and aluminum conductors
• Offers low contact resistance due to its electro-tin plating
• Features a chamfered wire entry for easy installation

Product Highlights

This lug is ideal for applications requiring reliable electrical connections in panelboards and can reduce installation time due to its efficient design.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Brand: Ilsco
• Country of Origin: Mexico
• UPC: 783669180718

Technical Specifications

• Catalog Number: PB3-600
• Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
• Maximum Conductor Size: 600 KCMIL
• Minimum Conductor Size: 2 AWG
• Number of Conductors: 3
• Number of Pad Holes: 2
• Pad Size: 2-11/32 Inch L x 2-15/32 Inch W x 5/8 Inch Thk
• Stud Size: 3/8 Inch
