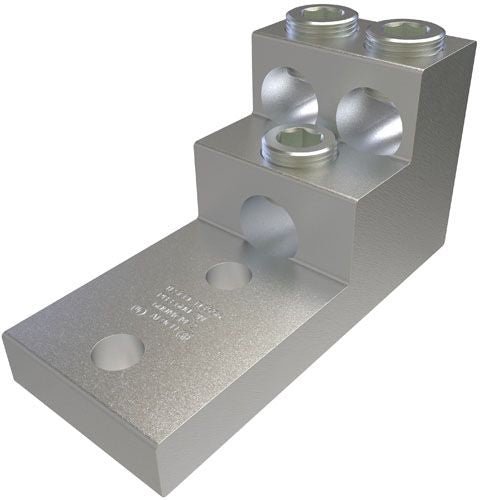

Ilsco PB3-600-2N 600 Mcm Alcu 3 Conductor Mechanical Lug

Product Description

The ILSCO PB3-600-2N is a mechanical connector lug rated for 600 MCM conductors in aluminum or copper wiring systems. Designed for 3-conductor terminations, this lug provides a secure, code-compliant connection point in high-capacity electrical distribution applications. It is installed by licensed electricians working on service entrances, switchgear, panelboards, and large feeder runs where full-size 600 MCM wire must be terminated reliably. The dual-rated aluminum-copper (AL/CU) construction allows use with either conductor material without requiring separate hardware.

This lug is suited for commercial and industrial electrical installations where 600 MCM feeder or service conductors must be landed on busbars, disconnects, or distribution equipment. The 3-conductor configuration makes it appropriate for multi-wire termination points on main lugs, transfer switches, and high-ampacity branch circuit equipment. It is not a residential-grade component and is typically specified on jobs governed by NEC requirements for service and feeder conductor terminations.

Key Features

• Rated for 600 MCM conductors — handles full-size service and feeder wire
• Dual-rated AL/CU construction — compatible with both aluminum and copper conductors
• 3-conductor lug design — accommodates multi-wire termination in a single fitting
• Mechanical lug style — set-screw termination for secure, tool-made connections
• UPC: 78366918072

Compatibility

Designed as an OEM-style mechanical lug for use with 600 MCM aluminum or copper conductors in commercial and industrial electrical distribution equipment.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the equipment fully before installing or removing any conductor lug. Use a calibrated torque wrench to tighten set screws to the manufacturer-specified torque value printed on the lug or its packaging — do not rely on hand-tight estimates for conductors of this size. Confirm the conductor insulation is stripped to the correct length and that the conductor is fully seated before torquing.

Technical Specifications

• Conductor Rating: 600 MCM
• Conductor Material Compatibility: Aluminum and Copper (AL/CU)
• Number of Conductors: 3
• Dimensions (L x W x H): 6.000 inches x 3.870 inches x 3.120 inches
• Weight: 150.000 pounds
• UPC: 78366918072

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: PB3-600-2N
