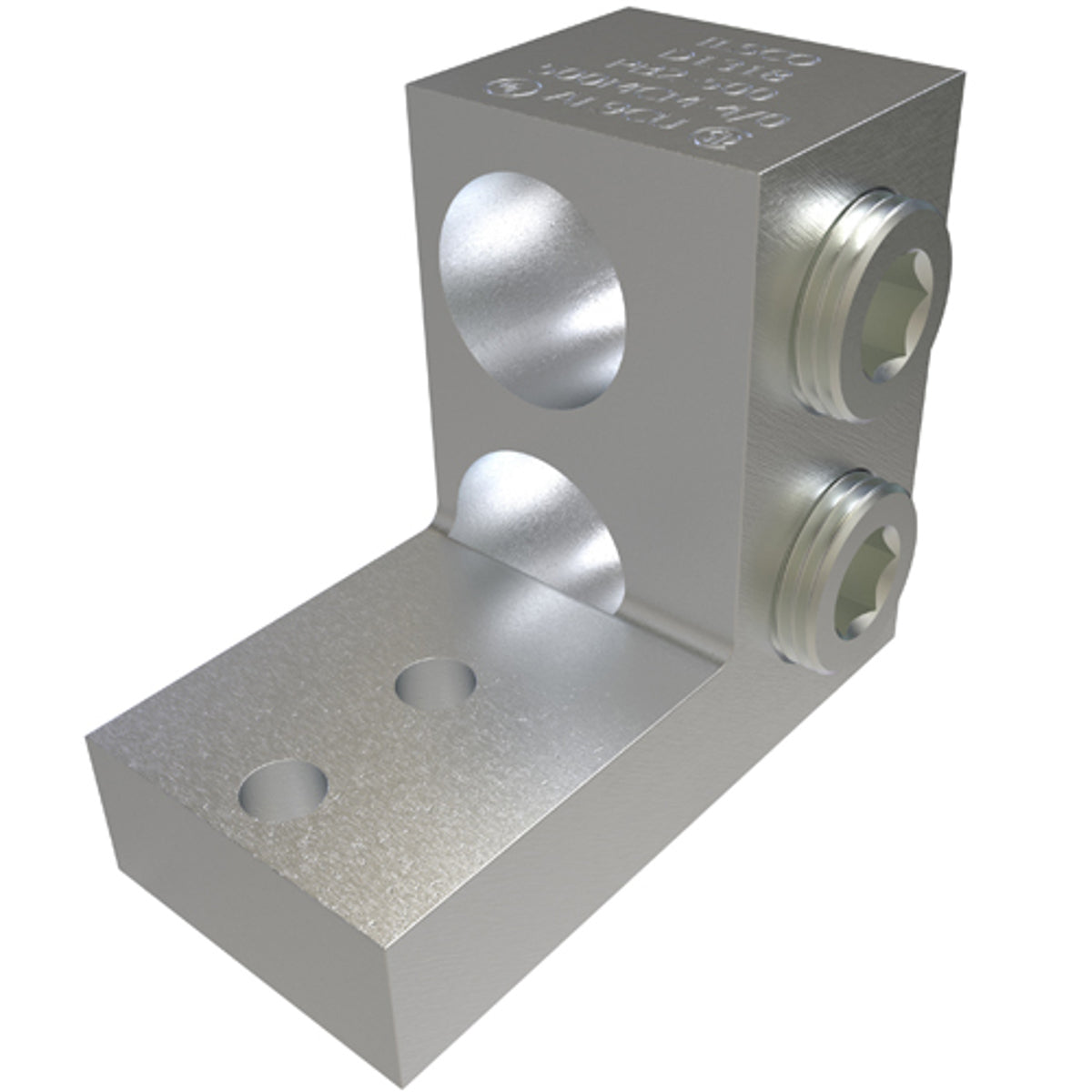

ILSCO PB2-500 Aluminum Panelboard Lug, Dual Rated, Conductor Range 500-4/0, 2 Ports, 2 Holes, 1/4in Bolt Size, 11/16in Hole Spacing

Product Description

The ILSCO PB2-500 is a dual-rated aluminum panelboard lug that accommodates conductor sizes ranging from five hundred KCMIL to four aught. This lug features two ports and two holes, allowing for easy installation and connection of both copper and aluminum conductors.

• Material: Electro-tin plated high strength 6061-T6 aluminum alloy
• Maximum conductor size: five hundred KCMIL, minimum size: four aught AWG
• Approval: UL 453G, UL 486A/B, CSA

Product Highlights

The design of the PB2-500 allows for a chamfered wire entry, making installation straightforward. Its stacked design saves space and reduces installation time. The lug is also electro-tin plated to provide low contact resistance.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: PB2-500
• Conductor Material: Aluminum/Copper
• Number Of Conductors: 2
• Stud Size: 1/4 Inch
• Screw Type: 3/8 Inch Hex
• Pad Size: 1-11/16 Inch L x 1-7/16 Inch W x 5/8 Inch Thk
• Type: Chamfered Wire Entry/Stacked
• Product UPC: 783669184266
