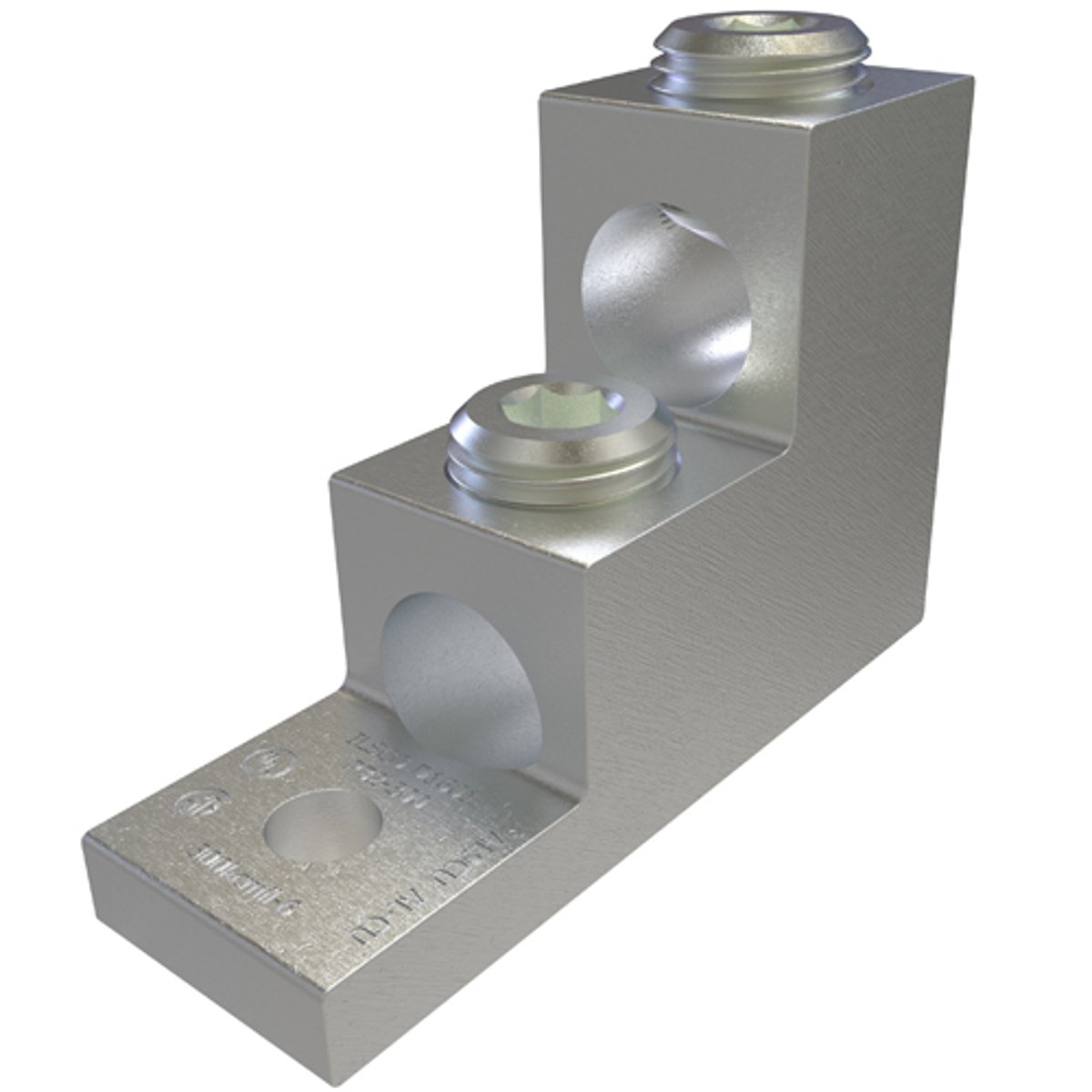

ILSCO PB2-300 Aluminum Panelboard Lug Dual Rated Conductor Range 300-6 2 Ports 1 Hole 5/16in Bolt Size

Product Description

The ILSCO PB2-300 is an aluminum panelboard lug designed for dual-rated connections. It accommodates conductor sizes from six to three hundred kcmil. This product features two ports and one hole for easy installation.

• Manufactured from high strength 6061-T6 aluminum alloy
• Electro-tin plated for low contact resistance
• Chamfered wire entry for ease of installation

Product Highlights

This panelboard lug is suitable for both copper and aluminum conductors. Its stacked design allows for efficient use of space and reduces installation time.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Brand: ILSCO

Technical Specifications

• Catalog Number: PB2-300
• Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
• Approval: UL 453G, UL 486A/B, CSA
• Maximum Conductor Size: 300 KCMIL
• Minimum Conductor Size: 6 AWG
• Number of Conductors: 2
• Pad Size: 1 Inch L x 1 Inch W x 5/16 Inch Thk
• Stud Size: 5/16 Inch
• Type: Chamfered Wire Entry/Stacked
