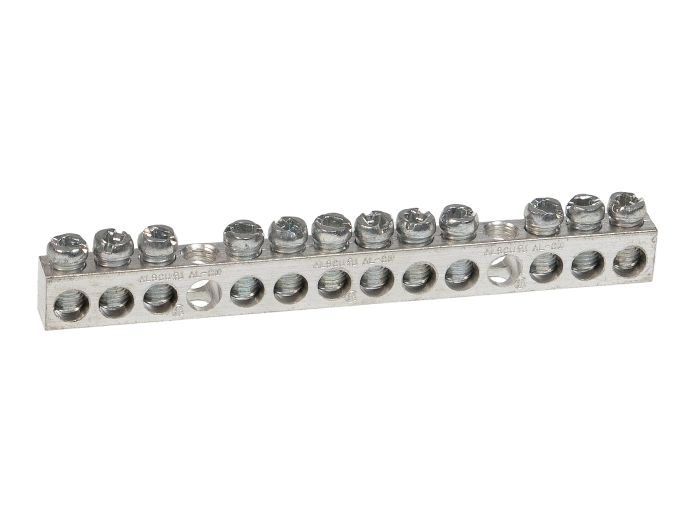

Ilsco NBAS-012-2-A Aluminum Neutral Bar, Dual Rated, 12 Ports

Product Description

The ILSCO NBAS-012-2-A is an aluminum neutral bar, dual rated for copper and aluminum conductors. It accommodates a conductor range of 4-14 and features 12 ports and 2 mounting holes. Designed with a #10 bolt and headed slot drive, it ensures maximum conductivity and low contact resistance.

• Manufactured from High Strength, Electro Tin Plated Aluminum Alloy
• Use with Both Copper and Aluminum Conductors
• Assemblies Available with 2 231 Circuits

Product Highlights

This aluminum neutral bar is dual-rated for use with both copper and aluminum conductors, offering application versatility.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: NBAS-012-2-A
• Country of Origin: CA - Canada

Technical Specifications

• Connection: Mechanical
• Mounting Hole Type: Thru
• Number of Conductors: 12
• Number of Mounting Holes: 2
• Number of Poles: 1
• Number of Usable Ports: 12
• Conductor Type: Stranded, Solid
• Drive Type Main: Slotted
• Height (IN): 0.547
• Length (IN): 4.416
• Mounting Hole Diameter (IN): 0.203
• Mounting Hole Spacing (IN): 2.184
• Weight (LB): 0.102
• Width (IN): 0.312
• Conductor Material: Copper, Aluminum
• Connector Finish: Tin
• Material: Aluminum
• Wire Binding Hardware Material: Steel
• Mounting Bolt/Stud Size: #10
• Number of Wire Binding Screws per Port: 1
• Wire Binding Screw Size: 1/4
• Wire Binding Torque: 8 AWG = 25, 2 AWG = 40, 4 - 6 AWG = 35, 10 - 18 AWG = 20
• Conductor Range AL Stranded (Primary, run, main, line): 4 Str - 14 Str
• Conductor Range CU Solid (Primary, run, main, line): 10 Sol - 14 Sol
• Conductor Range CU Stranded (Primary, run, main, line): 4 Str - 14 Str
• Conductor Range AL Solid (Primary, run, main, line): 10 Sol - 14 Sol
• Color: Silver
• Voltage Rating: 35 kV
• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• ROHS Indicator: IND
• UL / CULUS Specification: UL 486A/B Recognized, UL 467 Listed
• UL File Number: E6207
• Dual Rated: Yes
• NEMA Code: S-588-3
• ECCN: EAR99
• UNSPSC: 39121408
• Run Conductor Size: 4 to 14 AWG
• Color Family: Silver
• Length: 4.41 in.
• Height: 0.43 in.
• Width: 0.31 in.
• Manufacturer: Ilsco
• Product Series: NBAS
• Family Series: Ilsco Grounding, NBAS Series
• Description: Neutral Wire, (12)#4-#14, (2) Mounting Holes, Aluminum, Dual Rated for Al/Cu Wire
• Number of Taps: 12
• Stack Type: Individual Bar
• Wire Size Range: 14-4 AWG
• Includes Mounting Block: No
• AC Voltage: 600 VAC
• Approvals: CSA, UL
• Comments: Headed Slot and Square Drive Screws
• Net Weight: 0.1 lbs
• Gross Weight: 0.1 lbs
