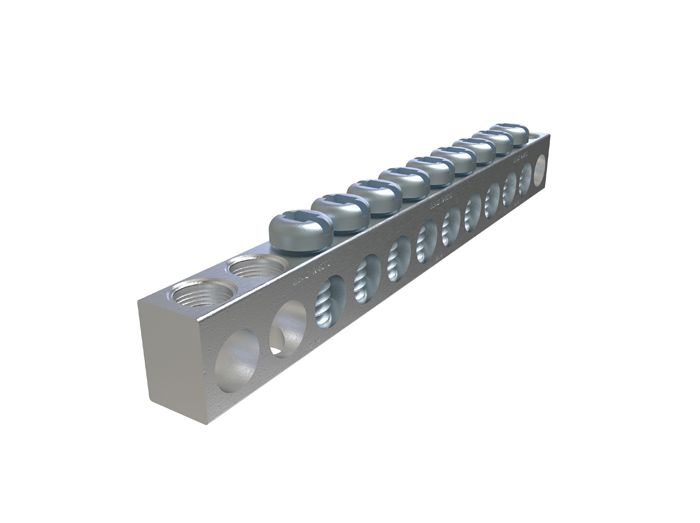

Ilsco NBAS-009-2-A Neutral Bar (9) #4-#14

Product Description

The ILSCO NBAS-009-2-A neutral bar is manufactured from high-strength, electro-tin plated aluminum alloy and is dual-rated for use with both copper and aluminum conductors. It provides maximum conductivity and application versatility with low contact resistance. This neutral bar has 9 ports for wire sizes #4-#14 and 2 mounting holes.

• Manufactured from High Strength, Electro Tin Plated Aluminum Alloy
• Use with Both Copper and Aluminum Conductors
• Provides Maximum Conductivity

Product Highlights

The ILSCO NBAS-009-2-A neutral bar ensures reliability and application versatility.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: NBAS-009-2-A

Technical Specifications

• Manufacturer Part Number: NBAS-009-2-A
• Manufacturer: Ilsco
• Product Series: NBAS
• Family Series: Ilsco Grounding, NBAS Series
• Description: Neutral Bar, (9)#4-#14, (2) Mounting Holes, Aluminum, Dual Rated for Al/Cu Wire
• Number of Taps: 9
• Stack Type: Individual Bar
• Wire Size Range: 14-4 AWG
• Includes Mounting Block: No
• Material: Aluminum
• AC Voltage: 600 VAC
• Approvals: CSA, UL
• Comments: Headed Slot and Square Drive Screws
• Finish: Electro Tin Plated
• Mounting Hole Quantity: 2
• Type: Type NBAS Dual Rated
• Applications: Neutral Bar
• Conductor Material: Aluminum,Copper
• Conductor Type: Solid,Stranded
• Connection Type: Mechanical
• Number of Conductors: 9
• Number of Holes: 2 Hole
• TC Connection: Mechanical
• Sub Brand: ILSCO
• Mounting Hole Size: 0.206 in
