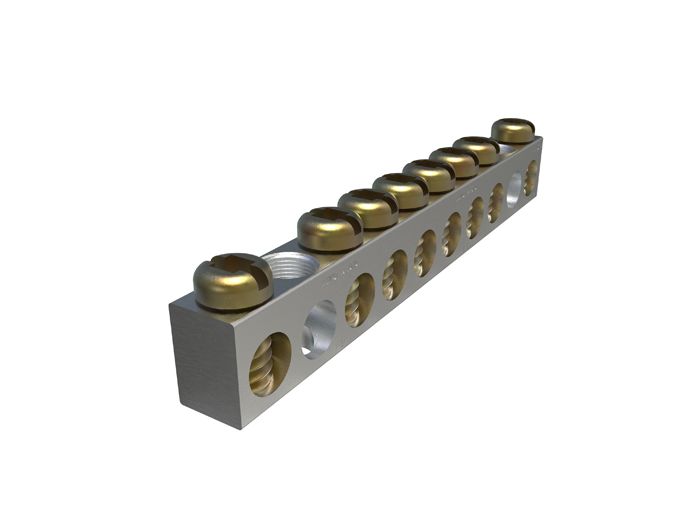

Ilsco NBAS-008-2-A Aluminum Neutral Bar, Dual Rated, Conductor Range 4-14, 8 Ports, 2 Holes, #10 Bolt

Product Description

The ILSCO NBAS-008-2-A aluminum neutral bar is dual rated with a conductor range of 4-14 and features 8 ports and 2 holes. It is designed with a #10 bolt and headed slot drive. Manufactured from high strength, electro-tin plated aluminum alloy, it can be used with both copper and aluminum conductors.

• Dual Rated
• Manufactured from High Strength, Electro Tin Plated Aluminum Alloy
• Use with Both Copper and Aluminum Conductors

Product Highlights

The ILSCO NBAS series neutral bar provides maximum conductivity, low contact resistance, and application versatility.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: NBAS-008-2-A

Technical Specifications

• Applications: Neutral Bar
• Material: Aluminum
• Number of Conductors: 8
• Tc Connection: Mechanical
• Type: NBAS:AL NEUTRAL BAR 4-14
• Brand: Ilsco
• Sub Brand: ILSCO
• Color: Silver
• Finish: Tin Plated
• Product UPC: 78366900557
• Mounting Hole Type: Thru
• Number of Mounting Holes: 2
• Number of Poles: 1
• Number of Usable Ports: 8
• Conductor Type: Stranded
• Dimension G (IN): 0.492
• Drive Type Main: Slotted
• Height (IN): 0.622
• Length (IN): 3.168
• Mounting Hole Diameter (IN): 0.203
• Mounting Hole Spacing (IN): 2.184
• Weight (LB): 0.067
• Width (IN): 0.312
• Conductor Material: Copper
• Connector Finish: Tin
• Wire Binding Hardware Finish: Yellow Zinc Chromate
• Wire Binding Hardware Material: Steel
• Mounting Bolt/Stud Size: #10
• Number of Wire Binding Screws per Port: 1
• Wire Binding Screw Size: 1/4
• Conductor Range AL Stranded (Primary, run, main, line): 4 Str - 14 Str
• Conductor Range CU Solid (Primary, run, main, line): 10 Sol - 14 Sol
• Conductor Range CU Stranded (Primary, run, main, line): 4 Str - 14 Str
• Conductor Range AL Solid (Primary, run, main, line): 10 Sol - 14 Sol
• Voltage Rating: 35 kV
• Dual Rated: Yes
• Manufacturer Part Number: NBAS-008-2-A
• Manufacturer: Ilsco
• Product Series: NBAS
• Family Series: Ilsco Grounding, NBAS Series
• Description: Neutral Bar, (8)#4-#14, (2) Mounting Holes, Aluminum, Dual Rated for Al/Cu Wire
• Number of Taps: 8
• Stack Type: Individual Bar
• Wire Size Range: 14-4 AWG
• Includes Mounting Block: No
• AC Voltage: 600 VAC
• Approvals: CSA, UL
• Comments: Headed Slot and Square Drive Screws
• Net Weight: 0.07 lbs
• Gross Weight: 0.07 lbs
• Height: 0.55 in
• Width: 0.31 in
• Length: 3.17 in
