Ilsco M-161 Fuse Clip 250 Volts, 30 Amps

Product Description

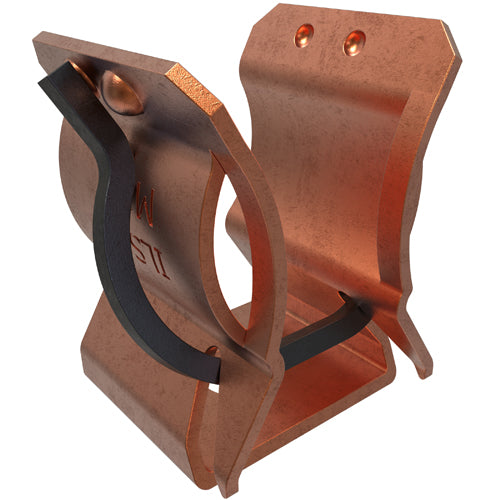

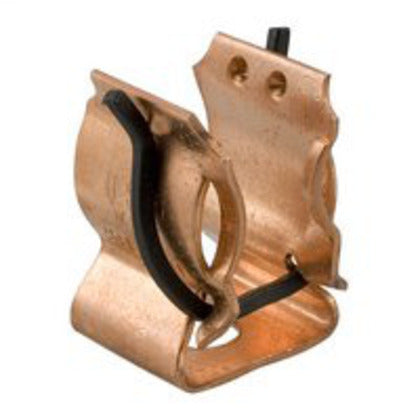

The ILSCO M-161 fuse clip is designed for 250 Volts and 30 Amps applications. This copper fuse clip features a wire-reinforced design, ensuring a secure connection. It is suitable for use with ferrule type fuses. Ideal for electrical panels, control circuits, and various industrial applications requiring reliable fuse connections.

• Supplied with permanently installed steel spring for tighter grip and positive contact
• Can be used with either knife or ferrule type fuses
• Spring is heat treated and plated to prevent hydrogen embrittlement

Product Highlights

Copper fuse clip with wire reinforcement, rated for 250V and 30A, ensuring reliable electrical connections.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: M-161
• Country of Origin: IN

Technical Specifications

• Connection: Clip
• Fuse Type: Ferrule
• Mounting Hole Type: Thru
• Dimension G (IN): 0.25
• Dimension G (mm): 6.35
• Height (IN): 0.844
• Height (mm): 21.4376
• Length (IN): 0.745
• Length (mm): 18.923
• Mounting Hole Diameter (IN): 0.203
• Mounting Hole Diameter (mm): 5.1562
• Thickness (IN): 0.03
• Thickness (mm): 0.762
• Width (IN): 0.594
• Width (mm): 15.0876
• Connector Finish: Tin
• Material: Copper Alloy
• Mounting Bolt/Stud Size: #10
• Connector Amperage Rating CU (Derated where applicable): 30 Amps
• Voltage Rating: 250 V
• Type: Fuse Clip
• Standards: California Proposition 65
• Country of Origin: IN
• Harmonization Tariff Schedule Code: 8536100040
• Mounting Type: Bolt
• UNSPSC: 39121630
• UPC 11: 78366960616
• UPC 12: 78366960616
