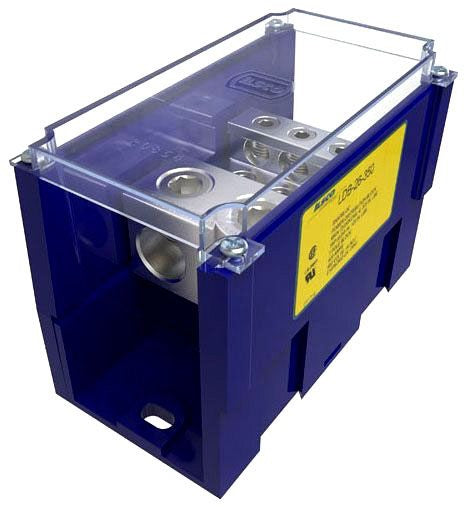

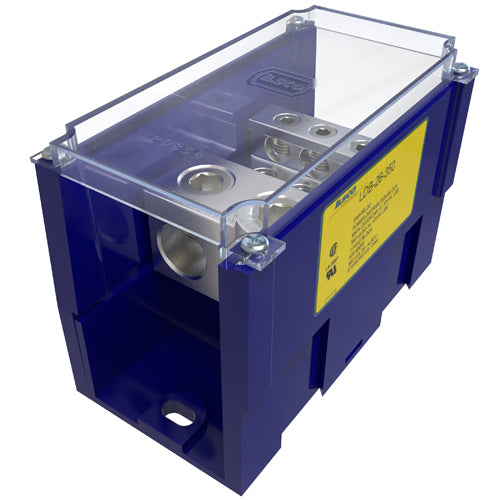

Ilsco LDB-26-350 Snapbloc Power Distribution Block, Modular Design, Dual Rated, Line Conductor Range 350-6, Load Range 2/0-14, 2 Ports Per Pole Line Side, 6 Ports Per Pole Load Side, 1 Pole, UL, CSA, Includes Cover

Product Description

The Ilsco LDB-26-350 Snapbloc Power Distribution Block is designed for efficient power management. This modular block features dual ratings for line and load conductors. It supports a line conductor range of three hundred fifty to six AWG and a load range of two-aught to fourteen AWG.

• Two ports for input per pole and six ports for output per pole
• Rated for six hundred volts and six hundred twenty amps
• Mechanical connection suitable for multiple applications

Product Highlights

This distribution block is UL and CSA recognized, ensuring compliance with safety standards for electrical installations.

Product Information

Standard Information

• Catalog Number: LDB-26-350
• Brand: Ilsco

Technical Specifications

• Voltage Rating: 600 V
• Amperage Rating: 620 A
• Material: Aluminum with Tin Plated connectors
• Temperature Rating: 90 degrees C
• Number of Conductors: 8
• Primary Opening Wire Size: 6 AWG to 350 kcmil
• Secondary Opening Wire Size: 14 to 2/0 AWG
• Connection Type: Screw Terminal
