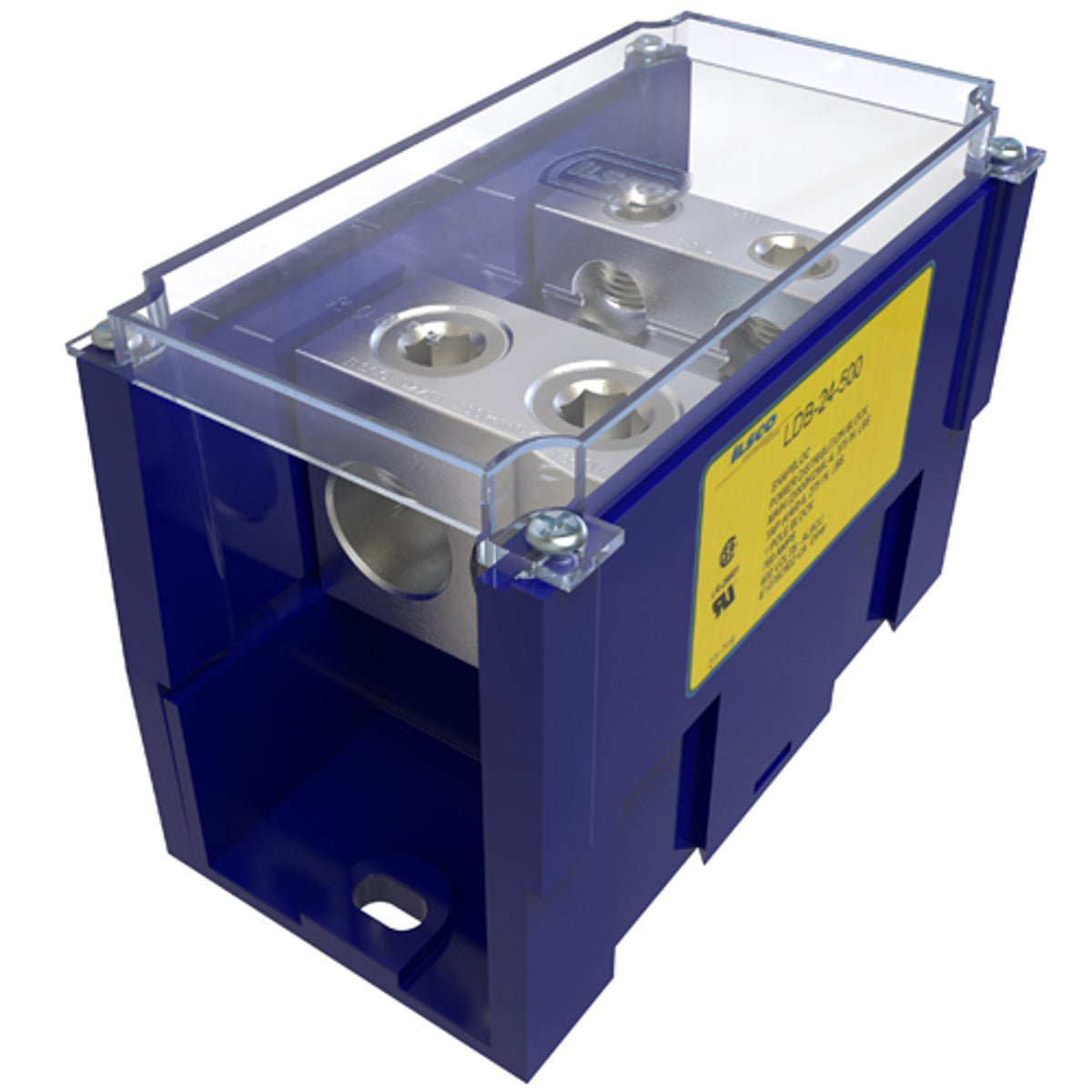

ILSCO LDB-24-500 Snapbloc Power Distribution Block, Dual Rated, Line Conductor Range 500-4, Load Range 4/0-6, 1 Pole

Product Description

The ILSCO LDB-24-500 Snapbloc Power Distribution Block is designed for efficient electrical connections. This modular device supports a line conductor range of five hundred to four AWG and a load range from four AWG to six. It includes two ports per pole on the line side and four ports per pole on the load side, facilitating quick adjustments and configurations.

• Modular design enables custom configurations based on job requirements.
• Electro-tin plated aluminum alloy construction ensures compatibility with both copper and aluminum conductors.
• UL and CSA approved, suitable for various applications.

Product Highlights

Ideal for electrical professionals seeking reliable power distribution solutions, this block simplifies stock management. Its unique locking feature allows easy assembly without special tools.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: LDB-24-500
• Country of Origin: Mexico
• Conductor Material: Aluminum/Copper
• Temperature Rating: 90 Deg C
• Cover Type: Clear
• Primary Opening Wire Size: 4 AWG to 500 KCMIL
• Secondary Opening Wire Size: 6 to 4/0 AWG
• Approval: UL 1059, CSA
• Dimensions: 3 inches x 5.5 inches x 3.44 inches
