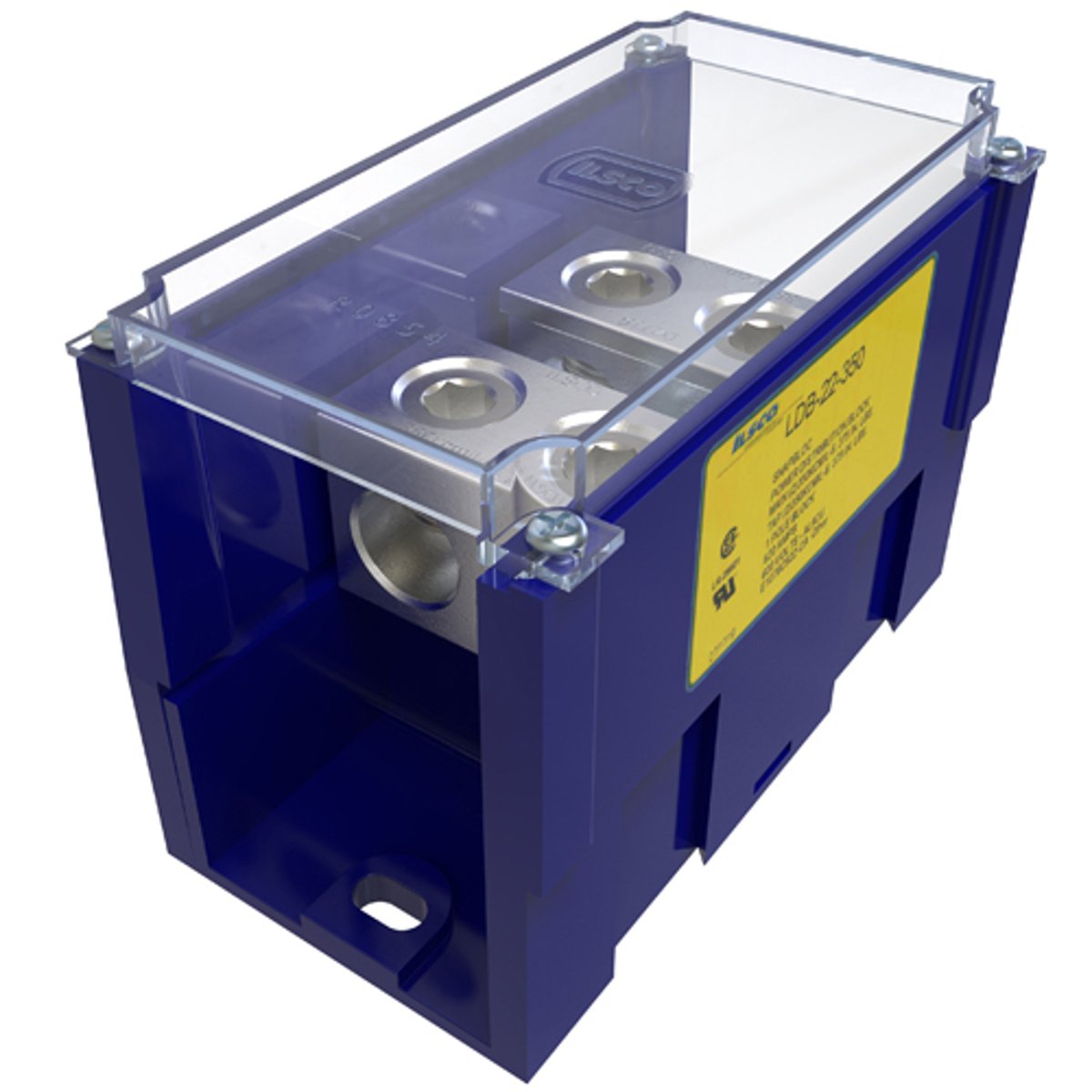

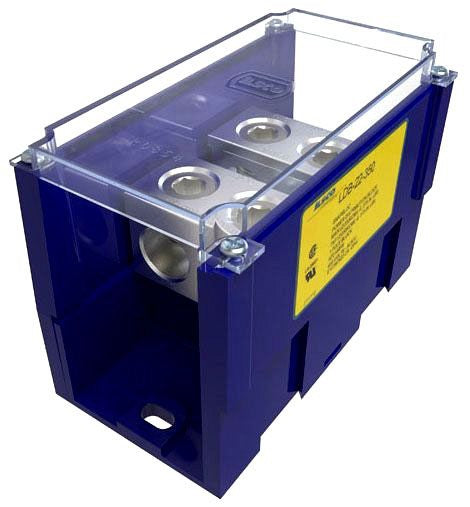

Ilsco LDB-22-350 Snapbloc Power Distribution Block 600 Volt 2 Ports Per Pole

Product Description

The Ilsco LDB-22-350 Snapbloc Power Distribution Block is designed for effective power distribution. This product features a modular design suitable for various applications. It is dual rated for both copper and aluminum conductors, with a line conductor range from 350 kcmil to six AWG and a load range from 350 kcmil to six AWG.

• Two ports per pole for both line and load sides
• Rated for six hundred volts
• Constructed under UL and CSA standards

Product Highlights

The Snapbloc Power Distribution Block offers a reliable mechanical connection. It has a tin plated connector for enhanced conductivity, and its design allows for easy assembly.

Product Information

Standard Information

• Brand: Ilsco
• Manufacturer: ECM Industries

Technical Specifications

• MPN: LDB-22-350
• Voltage Rating: 600 Volt
• Amperage: CU: 620 AMP
• Material: Aluminum
• Enclosure: Thermoplastic
• Number of Conductors: 4
• Temperature Rating: 90 degrees C
• Catalog Number: LDB-22-350
