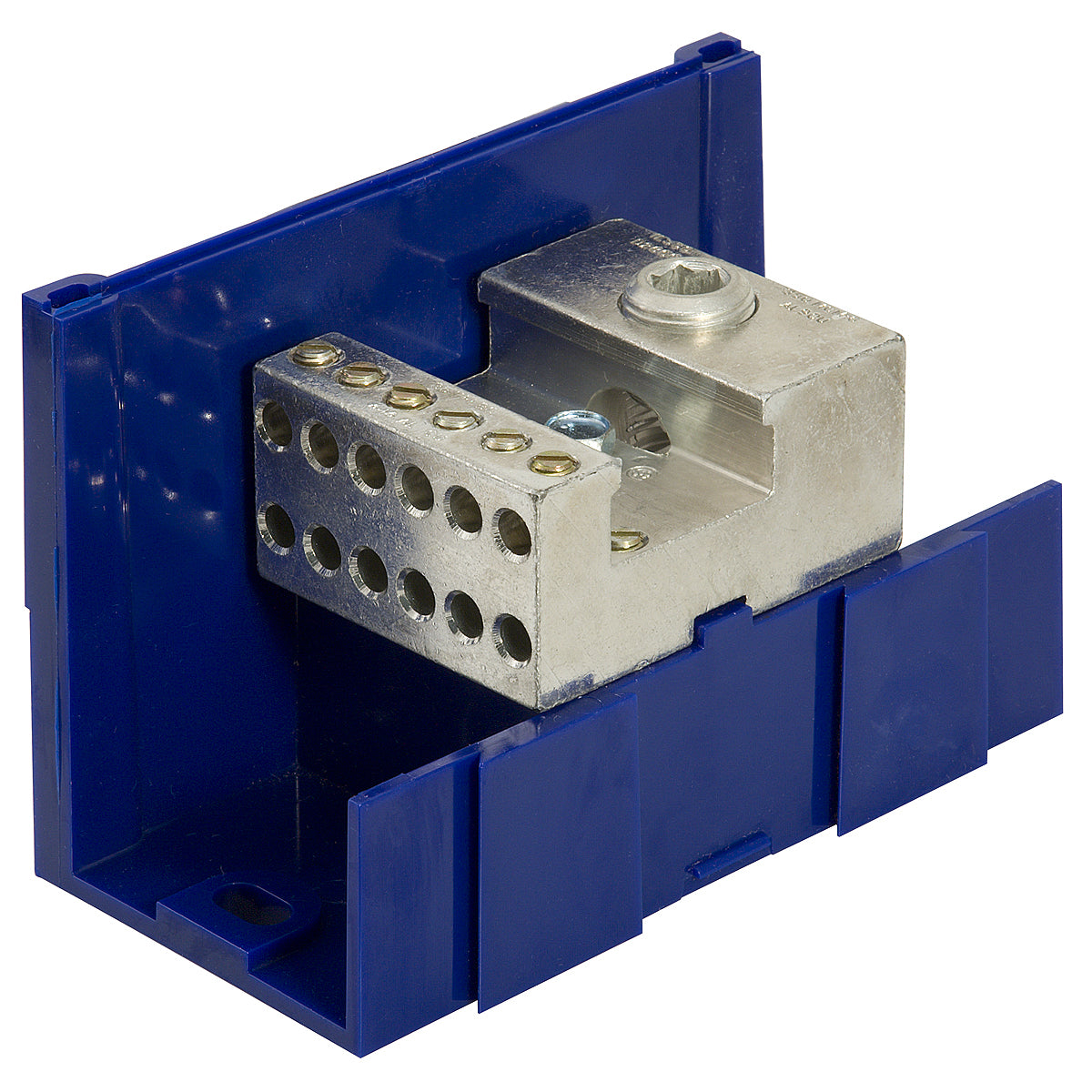

Ilsco LDA-26-350 Distribution Block 600 Volt 620 Amp 2 Ports Per Pole 6 Ports Per Pole

Product Description

The Ilsco LDA-26-350 Snapbloc Power Distribution Block is a modular device designed for efficient power management. This block can accommodate line conductor ranges from three hundred fifty to six AWG and load ranges from two-ought to fourteen AWG. With easy installation, this product features eight conductors and numerous ports to maximize connectivity.

• Modular design allows for straightforward assembly.
• Dual-rated for both copper and aluminum conductors.
• UL and CSA approved for safety and compliance.

Product Highlights

This distribution block provides robust electrical performance and versatility in applications, ensuring reliable connections across multiple conductor sizes.

Product Information

Standard Information

• Brand: Ilsco
• MPN: LDA-26-350

Technical Specifications

• Voltage Rating: 600 Volt
• Amperage: CU: 620 AMP
• Material: Aluminum

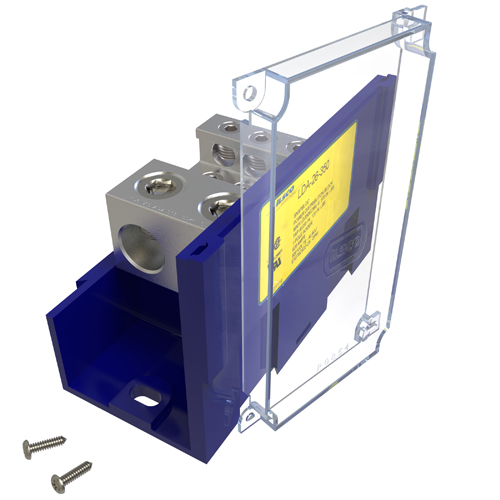

• Cover Type: Clear
• Number of Conductors: 8
• Temperature Rating: 90 degrees C
• Enclosure: Thermoplastic
• Drive Type Main: 3/8 Internal Hex
• Drive Type Tap: 3/16 Internal Hex
