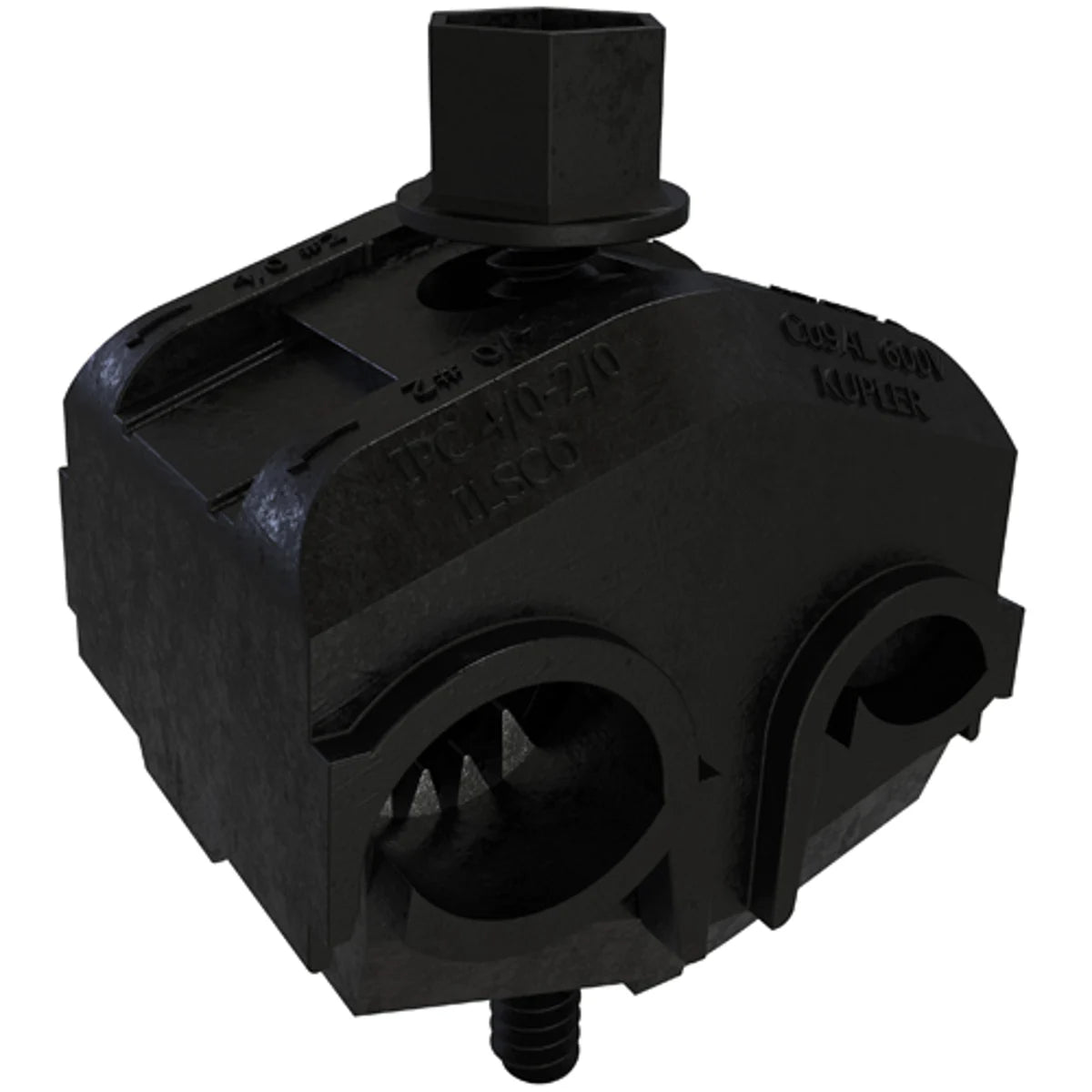

ILSCO IPC-4/0-2/0 KUP-L-Tap Insulation Piercing Copper Connector Dual Rated Main Conductor Range 4/0-2 Tap Range 2/0-6

Product Description

ILSCO IPC-4/0-2/0 is an insulation piercing copper connector designed for dual rated use. It accommodates main conductor sizes ranging from four ought to two and tap sizes from two ought to six. The connector is suitable for a variety of applications in electrical distribution and connection.

• Designed for easy and quick installation without needing to strip insulation
• Provides a reliable connection for copper or aluminum wires
• Compact design that saves space in tight installations

Product Highlights

This connector is ideal for utility, commercial, and residential electrical applications, ensuring a strong connection while minimizing the installation time.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: IPC-4/0-2/0
• Approval: UL 486A/B, UL 923F, CSA
• Connection Type: Splice, Tap
• Wire Size: 2 to 4/0 AWG (Main), 6 to 2/0 AWG (Tap)
• Wire Type: Copper/Aluminum
• Temperature Rating: 90 Deg C
• UPC: 783669532715
