Product Description

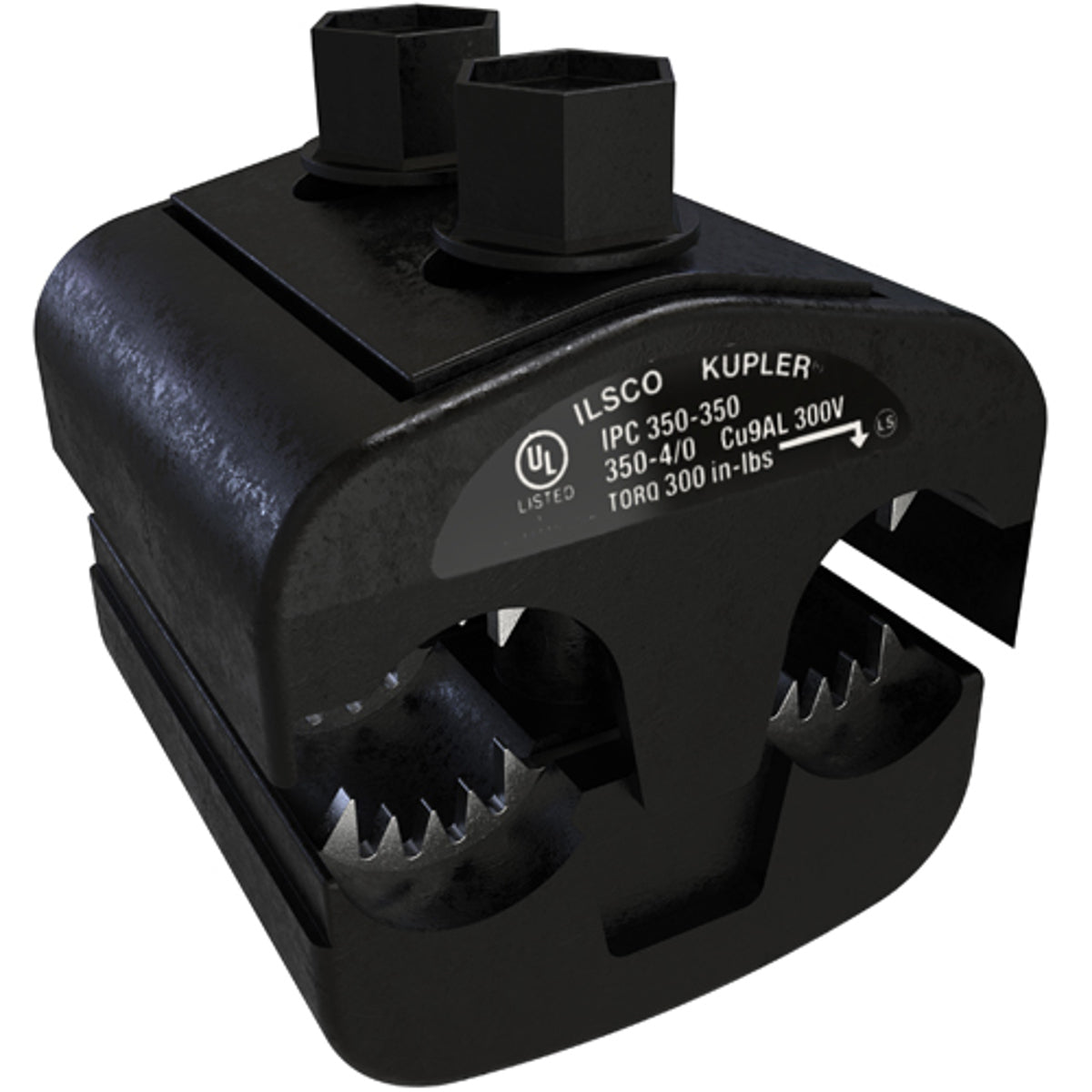

The ILSCO IPC-350-350 is an insulation piercing copper connector designed for effective electrical connections. It is dual-rated for main conductor sizes ranging from three hundred fifty to four ought. This connector simplifies the installation process by allowing piercing through insulation without stripping conductors.
- Suitable for stranded conductor Class B or C.
- Constructed with tin-plated copper contact teeth.
- Pre-filled with silicone lubricant to prevent oxidation.
Product Highlights
The ILSCO IPC-350-350 is a rugged connector ideal for various wiring applications. It ensures secure connections and facilitates quick installations. The compact design of this product aids in space-saving installations.
Product Information
Standard Information
-
Brand: ILSCO
-
Manufacturer: ECM Industries
Technical Specifications
-
Catalog Number: IPC-350-350
-
Wire Size: 4/0 AWG to 350 KCMIL
-
Connection Type: Splice, Tap
-
Temperature Rating: 90 Deg C
-
Country of Origin: Mexico
-
Approval: UL 486A/B, UL 923F, CSA
-
UPC: 783669532760
-
UNSPSC: 39121408
