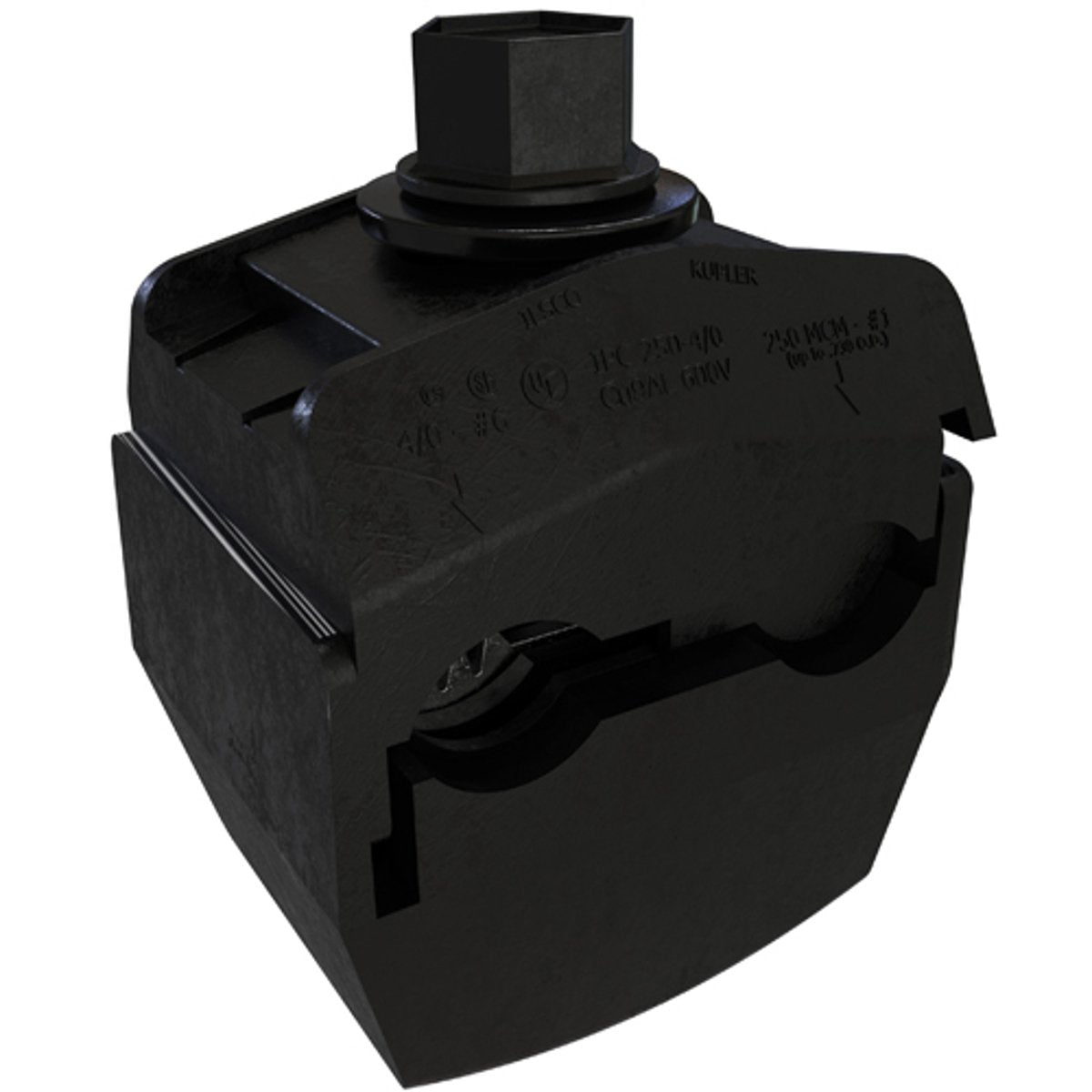

ILSCO IPC-250-4/0 KUP-L-Tap Insulation Piercing Copper Connector, Dual Rated, Main Conductor Range 250-1, Tap Range 4/0-6

Product Description

The ILSCO IPC-250-4/0 KUP-L-Tap Insulation Piercing Copper Connector is suitable for dual rated connections. It accommodates a main conductor range from 250 to one and a tap range from four aught to six. This connector is ideal for applications where reliable electrical connections are required. It features a compact design that saves space during installation and is constructed for durability and long-lasting use.

• Body made from glass-filled nylon for breakage resistance
• Tin-plated copper teeth penetrate insulation without stripping
• Pre-filled with silicone lubricant to prevent oxidation

Product Highlights

Designed for versatility in splice or tap connections, the IPC-250-4/0 ensures quick installation on energized conductors under safe conditions.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: IPC-250-4/0
• Wire Size: 1 AWG to 250 KCMIL (Main), 6 to 4/0 AWG (Tap)
• Connection Type: Splice, Tap
• Temperature Rating: 90 Deg C
• Voltage Rating: 600 VAC
• Approval: UL 486A/B, UL 923F, CSA
• Material: Copper
• Country of Origin: Mexico
