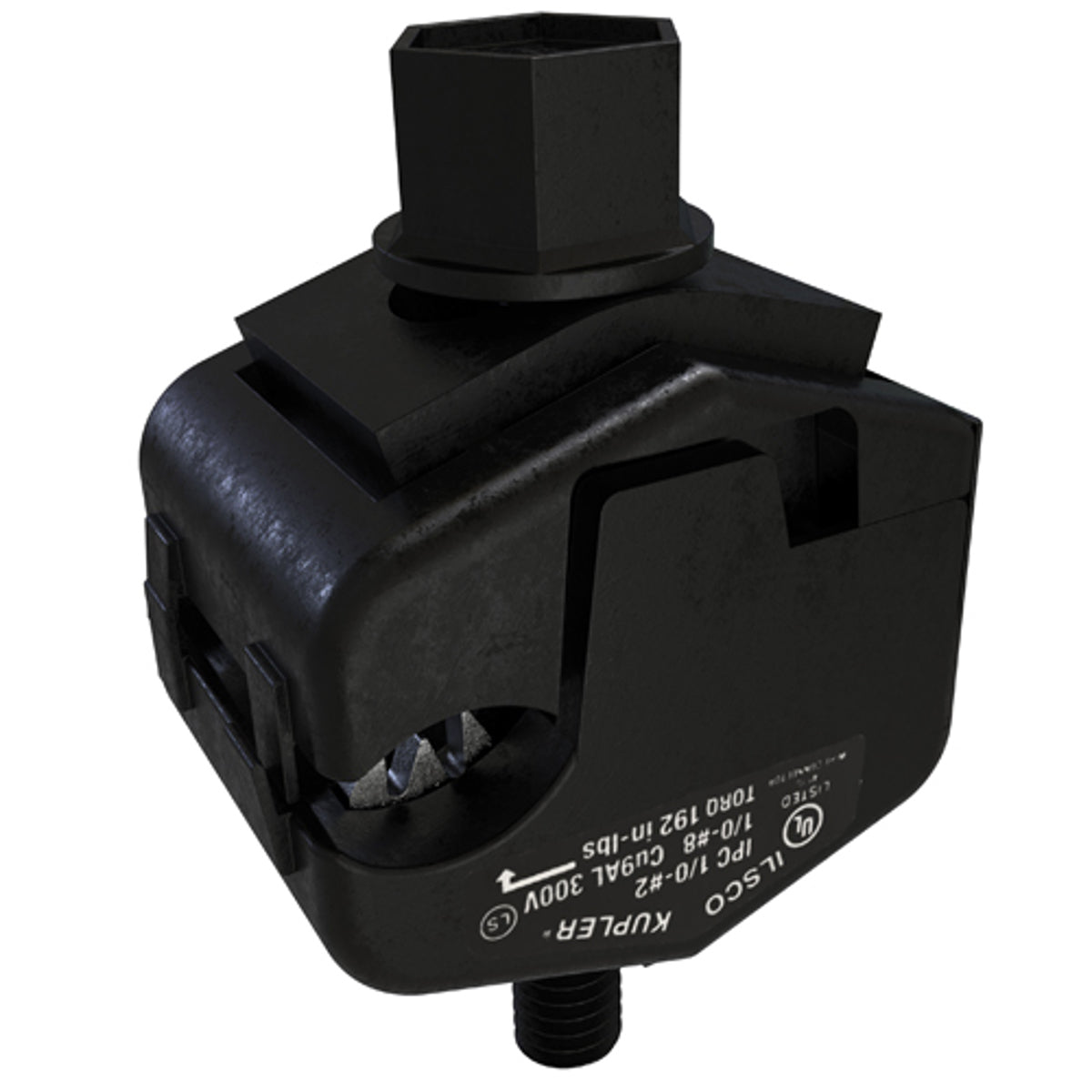

ILSCO IPC-1/0-2 KUP-L-Tap Insulation Piercing Copper Connector 300V 1/0-8 AWG

Product Description

ILSCO IPC-1/0-2 is an insulation piercing connector designed for applications requiring reliable electrical connections. This model supports wire sizes from eight AWG to one AWG for the main conductor and from eight AWG to two AWG for the tap. The connector is rated for a maximum voltage of 300 volts and offers dual ratings for both copper and aluminum conductors.

• Body made from glass-filled nylon for durability.
• Tin-plated copper contact teeth for effective penetration through insulation.
• Easy installation without stripping the conductor.

Product Highlights

This insulation piercing connector is ideal for various applications in electrical installations, where quick and secure connections are essential. Its compact design and robust construction make it a preferred choice for trade professionals.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: IPC-1/0-2
• Country of Origin: Mexico
• UPC: 783669532661
• Connection Type: Splice, Tap
• Temperature Rating: 90 Degrees Celsius
• Wire Range: 8 AWG to 1/0 AWG (Main), 8 AWG to 2 AWG (Tap)
• Approval: UL 486A/B, UL 923F, CSA
• Weight: 0.122 lbs
