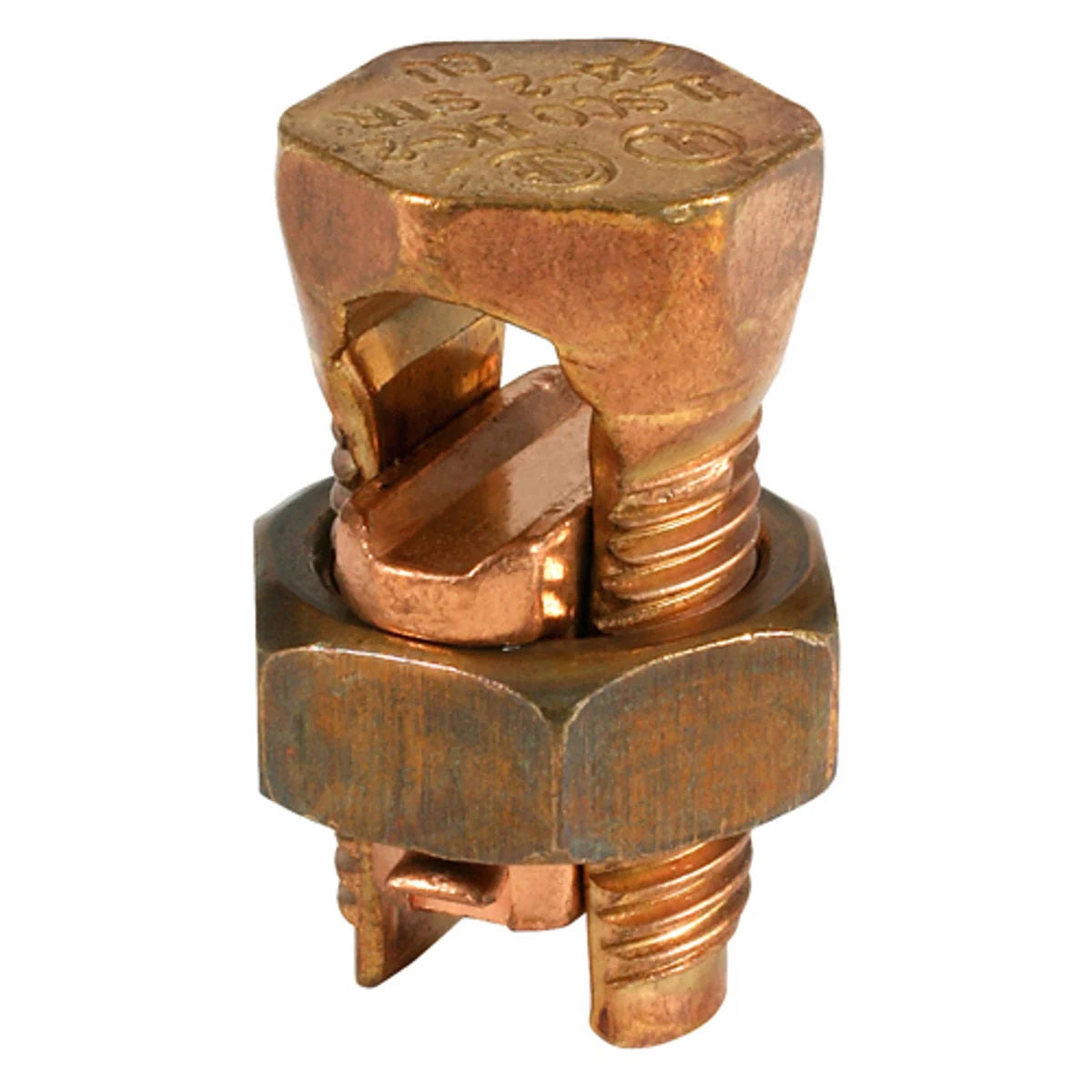

ILSCO IK-8 Copper Split Bolt, Conductor Range for Equal Main & Tap 8-16, UL, CSA

Product Description

The ILSCO IK-8 is a copper split bolt connector that is designed for use in electrical applications. This connector is suitable for connecting conductors ranging from eight to sixteen AWG. The sturdy design allows for effective and reliable electrical connections in various environments.

• Manufactured from high strength copper alloy for durability
• Allows maximum torque application through precision tooled threads
• Suitable for direct burial applications in earth and concrete

Product Highlights

Ideal for both main and tap applications, the ILSCO IK-8 connector ensures superior conductivity and high breakage resistance.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part #: IK-8

Technical Specifications

• Approval: UL 460C, CSA
• Conductor Material: Copper
• Installation: Split Bolt
• Maximum Run Conductor Size: 8 AWG Stranded
• Minimum Run Conductor Size: 16 AWG Stranded
• Material: High Strength Copper Alloy
• Voltage Rating: 2000 VAC
• Temperature Rating: 90 deg C
