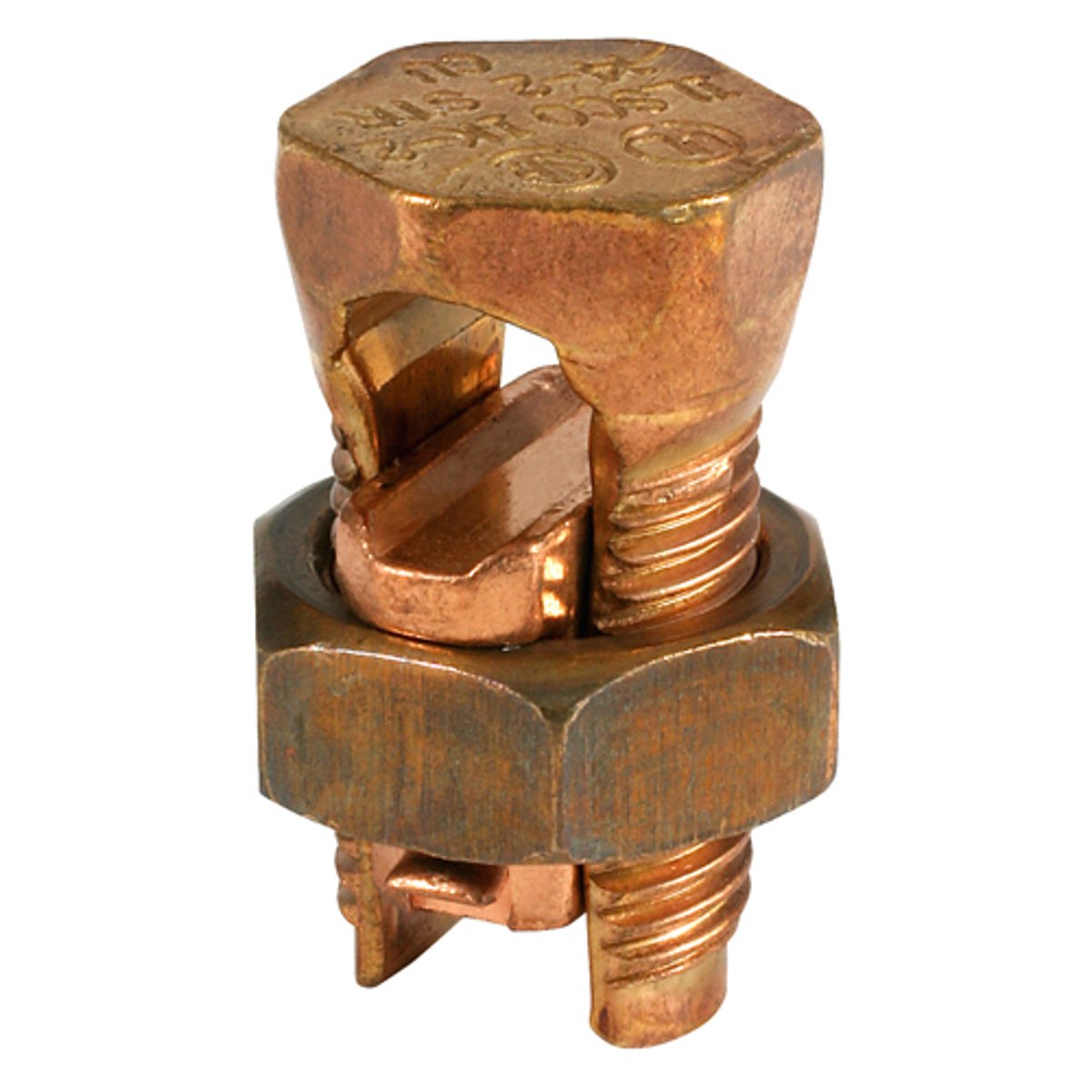

ILSCO IK-750 Copper Split Bolt, Conductor Range for Equal Main & Tap 750-350, UL, CSA

Product Description

The ILSCO IK-750 is a split bolt connector designed for use with copper conductors ranging from 750 to 350 KCMIL. This connector meets UL and CSA standards, ensuring reliability in electrical applications. The IK-750 is suitable for circuits rated up to thirty-five kilovolts, making it ideal for high-voltage installations. Professionals in the electrical trade will find this product effective for various wiring tasks.

• Suitable for direct burial in earth and concrete
• Manufactured from high strength copper alloy for superior conductivity
• Precision tooled threads for maximum torque application

Product Highlights

The ILSCO IK-750 features high strength materials and precise manufacturing to ensure robust performance in demanding environments. This product allows efficient electrical connections vital for safe operations.

Product Information

Standard Information

• Catalog Number: IK-750
• Brand: ILSCO

Technical Specifications

• Conductor Material: Copper
• Minimum Run Conductor Size: 350 KCMIL
• Maximum Run Conductor Size: 750 KCMIL
• Minimum Tap Conductor Size: 8 AWG Solid
• Maximum Tap Conductor Size: 750 KCMIL
• Approval: UL 460C, CSA
