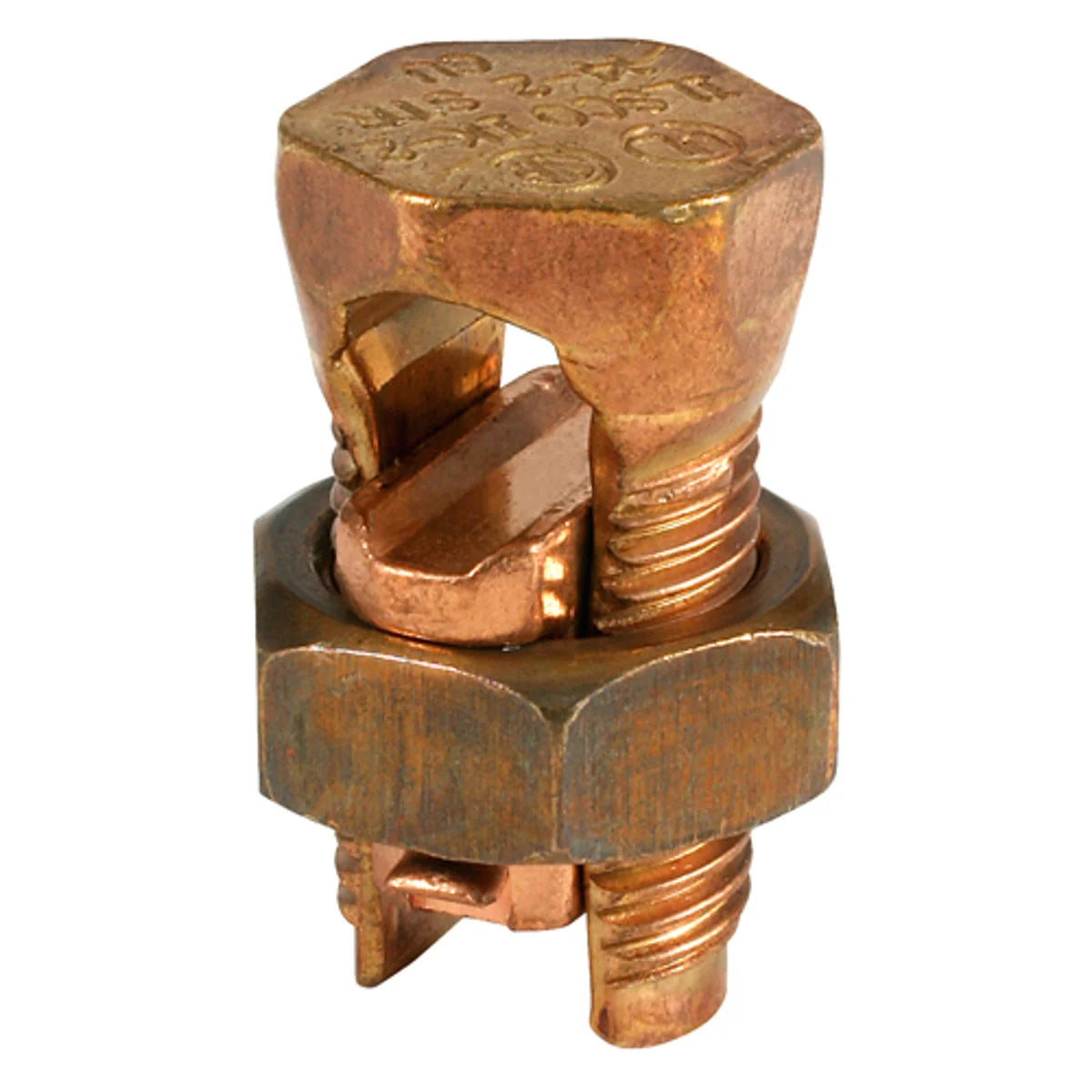

ILSCO IK-2 Copper Split Bolt, Conductor Range for Equal Main & Tap 2-6 Sol, UL, CSA

Product Description

The ILSCO IK-2 is a copper split bolt connector designed for applications involving equal main and tap conductors in the size range of two to six AWG. This connector is compliant with UL and CSA standards, ensuring safety and reliability in various electrical installations.

• High strength copper alloy construction
• Suitable for direct burial in earth and concrete
• Rated for use in circuits up to thirty-five kilovolts

Product Highlights

This connector provides excellent conductivity and high breakage resistance, making it suitable for demanding electrical environments. Its precision tooled threads allow for maximum torque, ensuring a secure connection.

Product Information

Standard Information

• Catalog Number: IK-2
• Manufacturer: ECM Industries
• Brand: ILSCO
• Country of Origin: United States
• Made in USA: Yes
• UPC: 783669470109

Technical Specifications

• Maximum Run Conductor Size: 2 AWG Stranded
• Minimum Run Conductor Size: 6 AWG Solid
• Approval: UL 460C, CSA
• Conductor Material: Copper
• Installation: Split Bolt
• Temperature Rating: 90 deg C
• Voltage Rating: 2000 VAC
