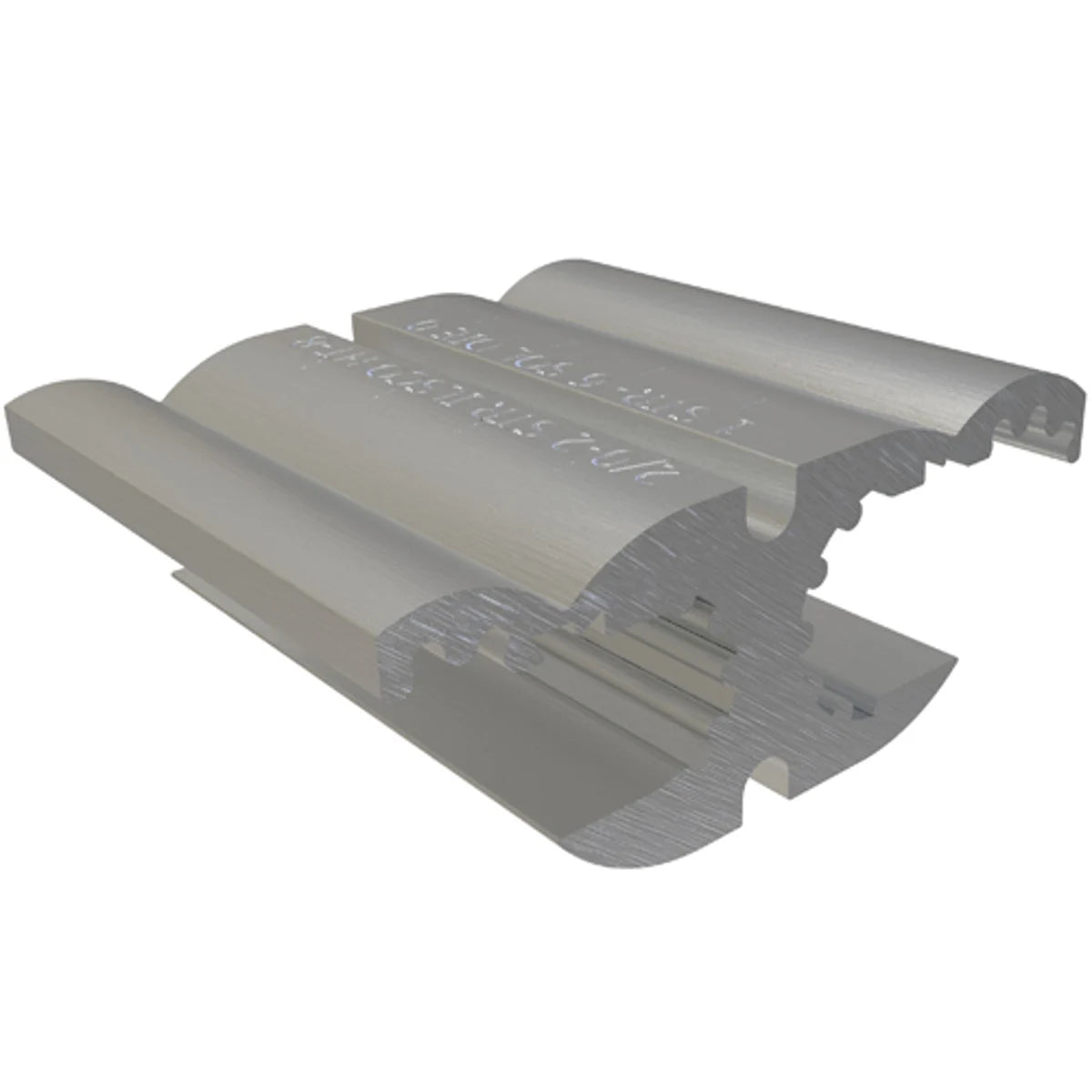

ILSCO HT-8 Aluminum Compression Tap Connector, Dual Rated, Main Conductor Range 2/0 Str - 2 Str and 3/0 Sol - 1 Sol, Tap Range 1/0 Sol - 6 Sol and 1 Str - 6 Str

Product Description

ILSCO HT-8 is an aluminum compression tap connector designed for dual-rated applications. This connector supports main conductor ranges of two-aught stranded to two stranded and three-aught solid to one solid. It also accommodates a tap range of one solid to six solid and one stranded to six stranded. This product is suitable for professional installations where reliable electrical connections are needed.

• Compatible with copper and aluminum conductors
• Pre-filled with oxide inhibitor for corrosion resistance
• High-strength aluminum alloy for optimal conductivity

Product Highlights

This connector is CSA certified and meets RoHS compliance. It is essential in electrical applications requiring durable and efficient connections.

Product Information

Standard Information

• Catalog Number: HT-8
• Manufacturer: ECM Industries
• Brand: ILSCO
• Country of Origin: Canada
• UPC: 783669461220

Technical Specifications

• Conductor Type: ACSR/Aluminum/Copper/Solid/Stranded
• Dimensions: 1.5 inches L x 0.703 inches W x 1.625 inches H
• Main/Run Size: 2/0 - 2 AWG
• Material: Aluminum
• Mfg Standards/Approvals: CSA Certified, RoHS Compliant
• Resistance: Corrosion
• Shape: H with C Groove
• Temperature Rating: 90 degrees C
• Voltage Rating: 600 VAC
