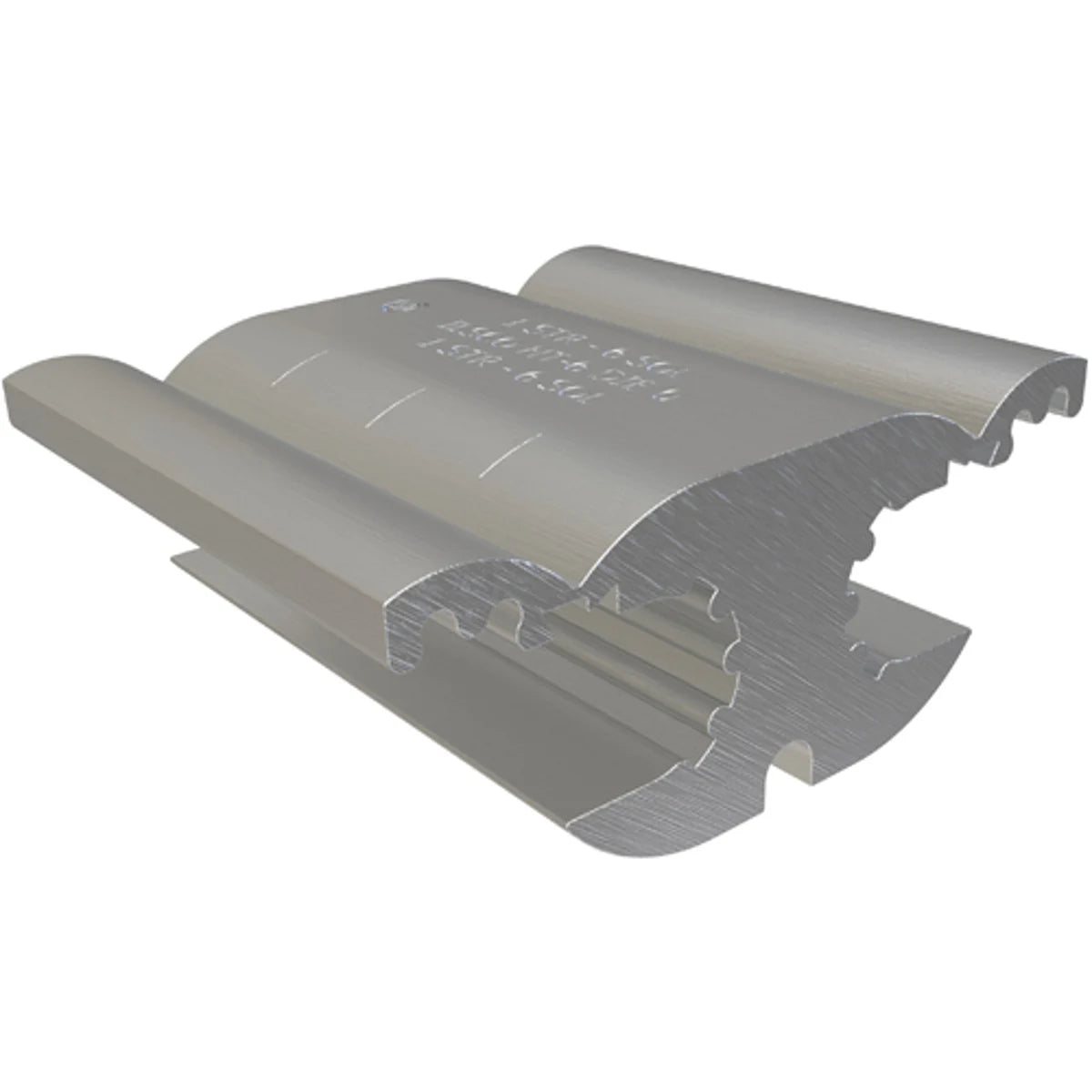

ILSCO HT-6 Aluminum Compression Tap Connector, Dual Rated, Main Conductor Range 1 Str - 6 Str and 1 Sol - 6 Sol, Tap Range 1 Sol - 6 Sol and 1 Str - 6 Str

Product Description

The ILSCO HT-6 is an aluminum compression tap connector, designed for electrical connections. This component is suitable for a main conductor range accommodating one to six stranded wires and one to six solid wires. It is ideal for use in various electrical applications, ensuring a reliable connection that meets industry standards.

• Dual rated for copper and aluminum conductors
• Suitable for use in circuits rated up to thirty-five kilovolts
• Pre-filled with oxide inhibitor for corrosion resistance

Product Highlights

The ILSCO HT-6 connector features a serrated interior for effective cable strand mating and ensures a robust connection when crimped. This tap connector is crafted from high-strength aluminum alloy for optimal conductivity.

Product Information

Standard Information

• Catalog Number: HT-6
• Manufacturer: ECM Industries
• Brand: ILSCO
• Country of Origin: Canada
• UPC: 783669461206

Technical Specifications

• Conductor Type: ACSR/Aluminum/Copper/Solid/Stranded
• Main/Run Size: 1 - 6 AWG
• Tap Size: 1 - 6 AWG
• Material: Aluminum
• Voltage Rating: 600 VAC
• Temperature Rating: 90 degrees C
• Dimensions: 1.5 inches L x 0.72 inches W x 1.72 inches H
