ILSCO HT-5 Aluminum Compression Tap Connector, Dual Rated, Main Conductor Range 4/0-3/0, Tap Range 2/0-1/0

Product Description

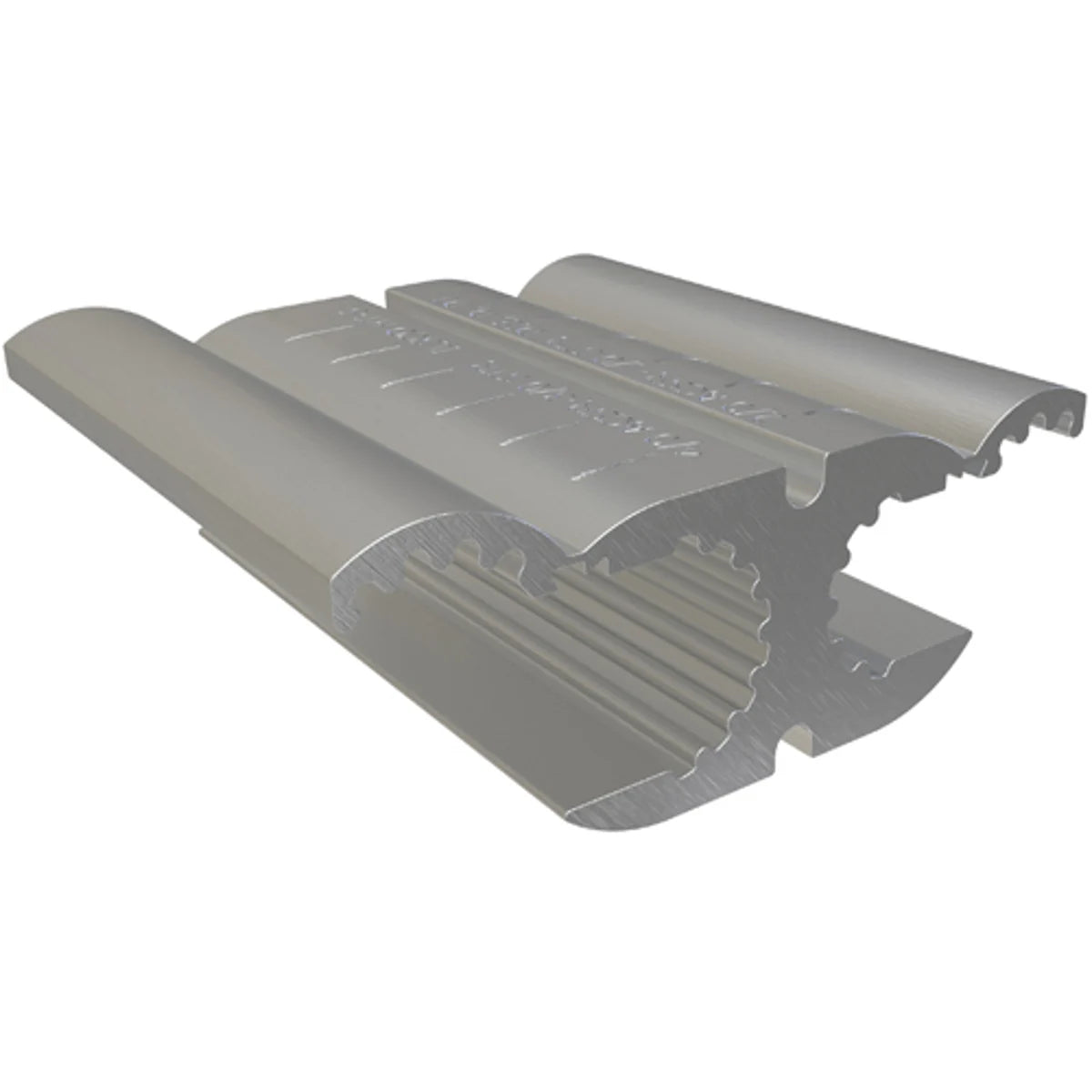

The ILSCO HT-5 is an aluminum compression tap connector designed for efficient electrical connections. This dual-rated connector accommodates a main conductor range from four aught to three aught and a tap range of two aught to one aught. This product is ideal for professional electricians looking for reliable connections in various electrical setups.

• Pre-filled with an oxide inhibitor for corrosion resistance
• Suitable for circuits rated at thirty-five kilovolts or lower
• Dual rating for copper and aluminum conductors

Product Highlights

The ILSCO HT-5 offers robust performance and high conductivity, ensuring reliable electrical connections.

Product Information

Standard Information

• Brand: ILSCO
• MPN: HT-5

Technical Specifications

• Conductor Type: ACSR/Aluminum/Copper/Solid/Stranded
• Country of Origin: Canada
• Dimensions: 2.25 inches L x 0.828125 inches W x 2.375 inches H
• Main/Run Size: 4/0 - 3/0 AWG
• Material: Aluminum
• Mfg Standards/Approvals: CSA Certified, RoHS Compliant
• Package Weight: 0.176 lbs
• Resistance: Corrosion
• Shape: H with C Groove
• Specifications: Program #6
• Tap Size: 2/0 - 1/0 AWG
• Temperature Rating: 90 deg C
• Type: HT
• Voltage Rating: 600 VAC
