ILSCO GPL-4 BRZ MEC 4 AWG-8 SOL UL CSA, 3/8IPS, 5/8-

Product Description

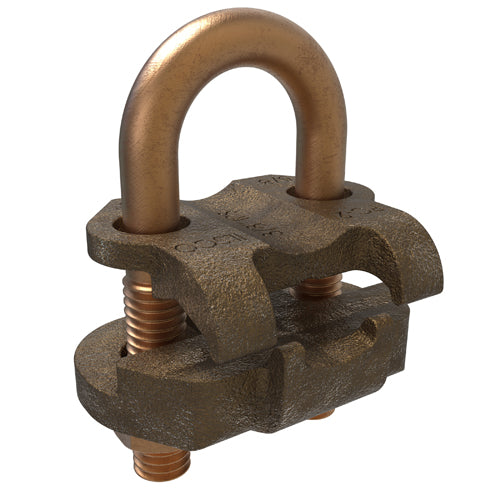

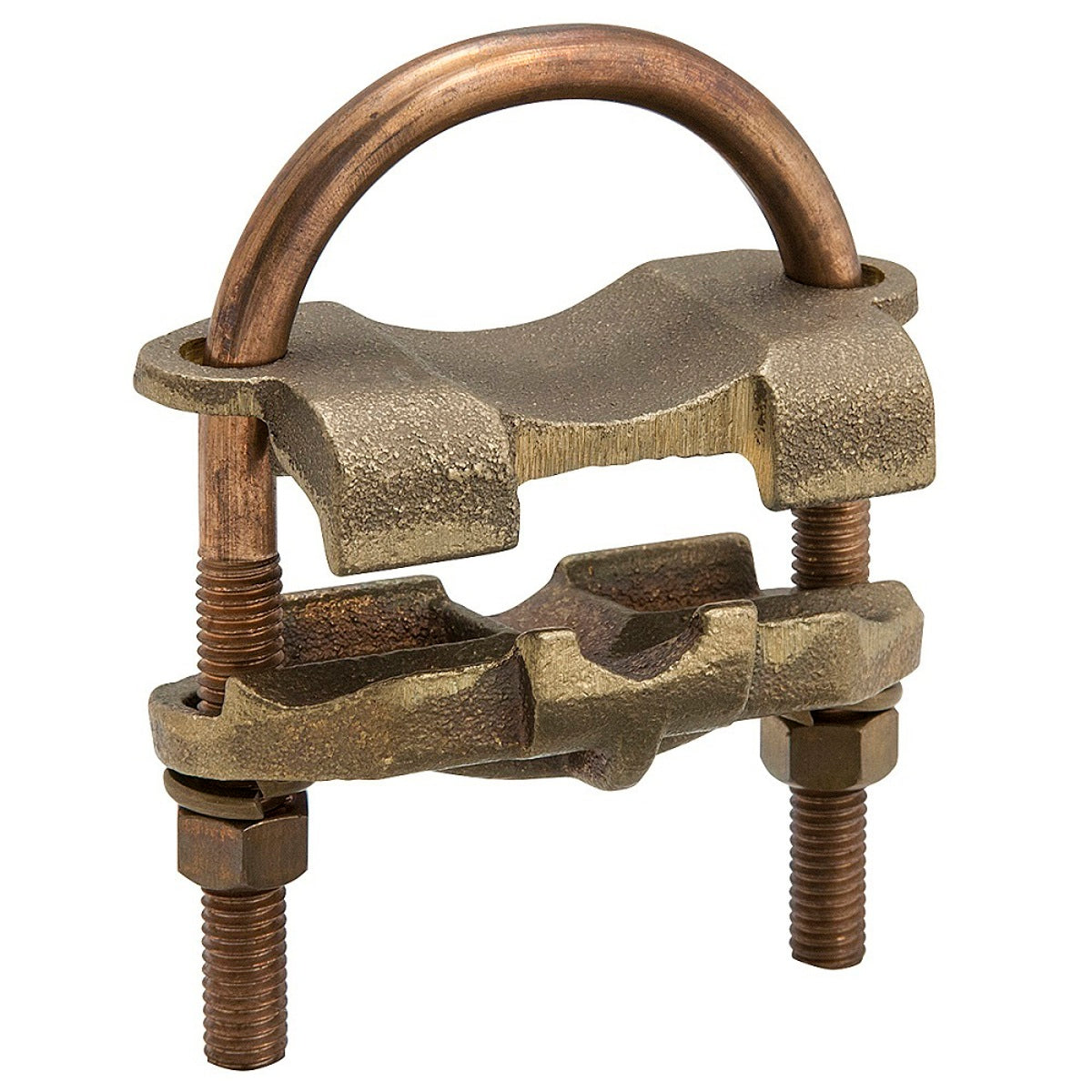

ILSCO GPL-4 is a mechanical connector designed for use with solid and stranded copper conductors. This product provides a reliable grounding connection and is suitable for various applications in electrical systems. The GPL-4 connects conductors ranging from eight to four AWG, making it versatile for different jobs.

• Connects conductors from eight to four AWG
• Made of cast bronze for durability
• Corrosion-resistant for long-lasting performance

Product Highlights

Ideal for grounding and bonding applications, the GPL-4 U-bolt ground clamp ensures strong electrical connections with durability in mind.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: GPL-4
• Conductor Size: 8 to 4 AWG
• Conductor Type: Solid/Stranded Copper
• Connection Type: Parallel/90 deg Cable
• Dimensions: 2.25 inches L x 1.563 inches W x 2.875 inches H
• Material: Cast Bronze
• Outside Diameter: 5/8 to 3/4 inches
• Pipe Size: 3/8 inches
• Rod Size: 5/8 to 3/4 inches
• Type: Type GPL U-Bolt
