ILSCO GPL-39 BRZ MEC 2/0 AWG- 4 SOL UL CSA 2-1/2IPS

Product Description

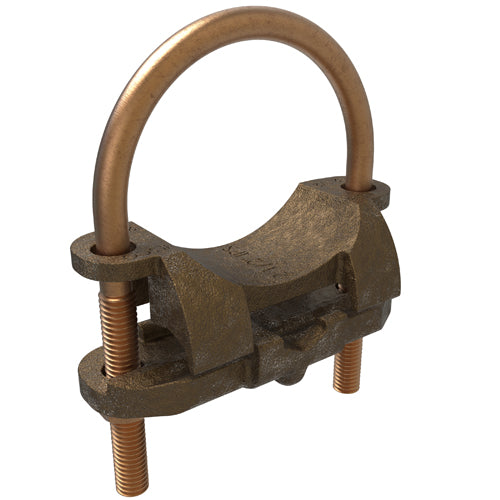

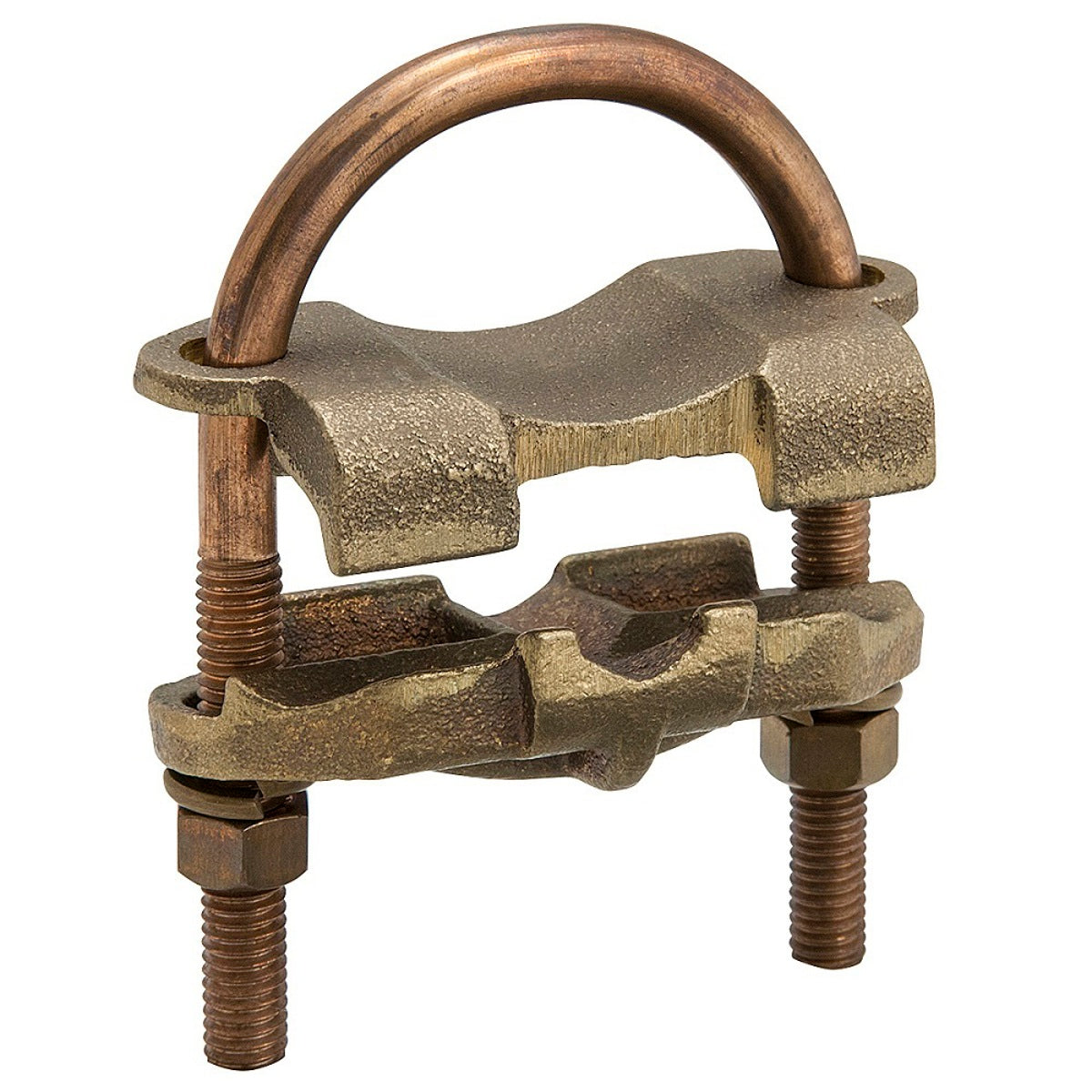

The ILSCO GPL-39 is a type GPL U-bolt ground clamp designed for secure connections. This product accommodates rod sizes from two and a half inches to two and seven eighths inches and supports conductor sizes from four to two aught AWG. The ground clamp is made from cast bronze for durability.

• Compatible with solid and stranded copper conductors
• Corrosion-resistant material enhances longevity
• Flexible design allows for easy installation on various pipe sizes

Product Highlights

This ground clamp provides a safe and reliable grounding solution. It ensures maximum conductivity through its copper alloy construction and is designed for ease of use in various applications.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Brand: ILSCO

Technical Specifications

• Catalog Number: GPL-39
• Conductor Size: 4 to 2/0 AWG
• Material: Cast Bronze
• Connection Type: Parallel/90-degree cable
• Dimensions: 4.25 inches L x 1.6 inches W x 5.165 inches H
• Pipe Size: 2-1/2 inches
• Rod Size: 2-1/2 to 2-7/8 inches
