Product Description

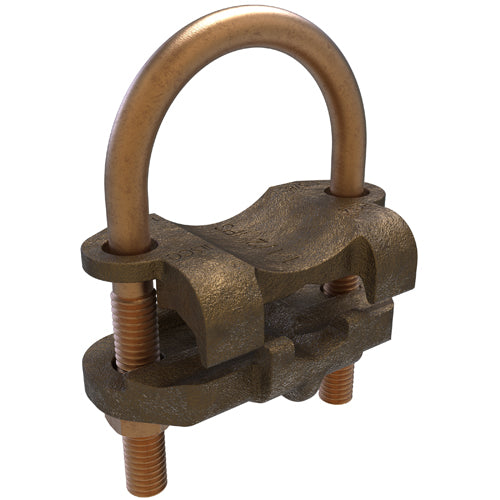

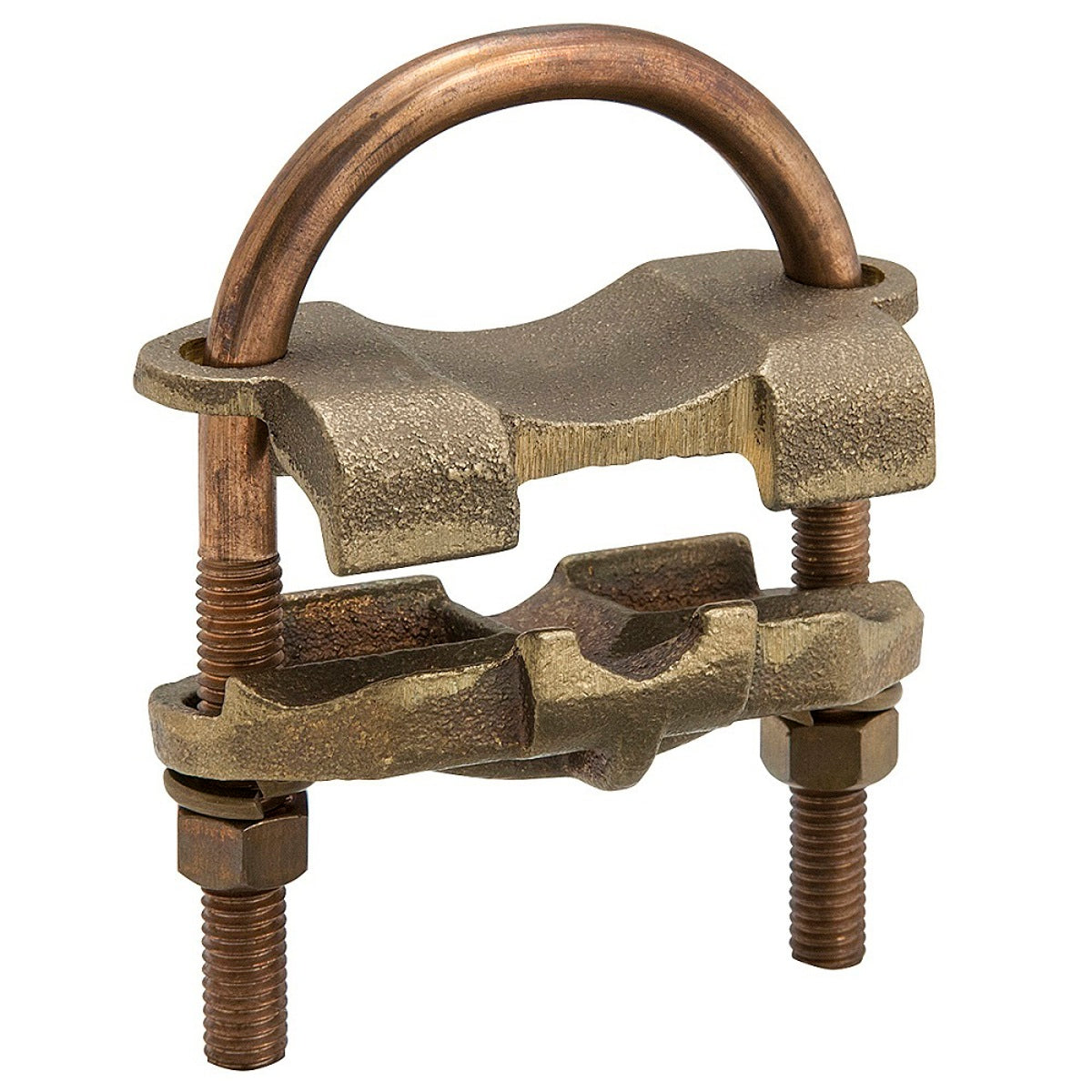

The ILSCO GPL-27 is a dependable U-bolt ground clamp designed for secure connections. Constructed from cast bronze, it fits pipe sizes ranging from one and five-eighths to one and seven-eighths inches while accommodating conductor sizes from four to two/zero AWG. This product suits a variety of grounding applications.
- Manufactured by ILSCO
- Suitable for both solid and stranded copper conductors
- Ideal for parallel and ninety-degree cable connections
Product Highlights
Includes a specially designed spacer for improved contact area and is corrosion resistant for extended service life.
Product Information
Standard Information
-
Brand: ILSCO
-
Manufacturer: ECM Industries
Technical Specifications
-
Catalog Number: GPL-27
-
Conductor Size: 4 to 2/0 AWG
-
Conductor Type: Solid/Stranded Copper
-
Connection Type: Parallel/90 deg Cable
-
Dimensions: 3.25 in L x 1.563 in W x 4.165 in H
-
Material: Cast Bronze
-
Outside Diameter: 1-5/8 to 1-7/8 in
-
Pipe Size: 1-1/2 in
-
Rod Size: 1-5/8 to 1-7/8 in
-
Type: Type GPL U-Bolt
