ILSCO GPL-26 BRZ MEC 4 AWG-8 SOL UL CSA, 1-1/2IPS, 1-

Product Description

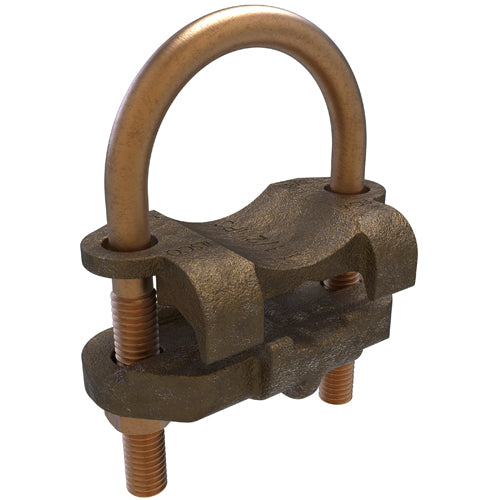

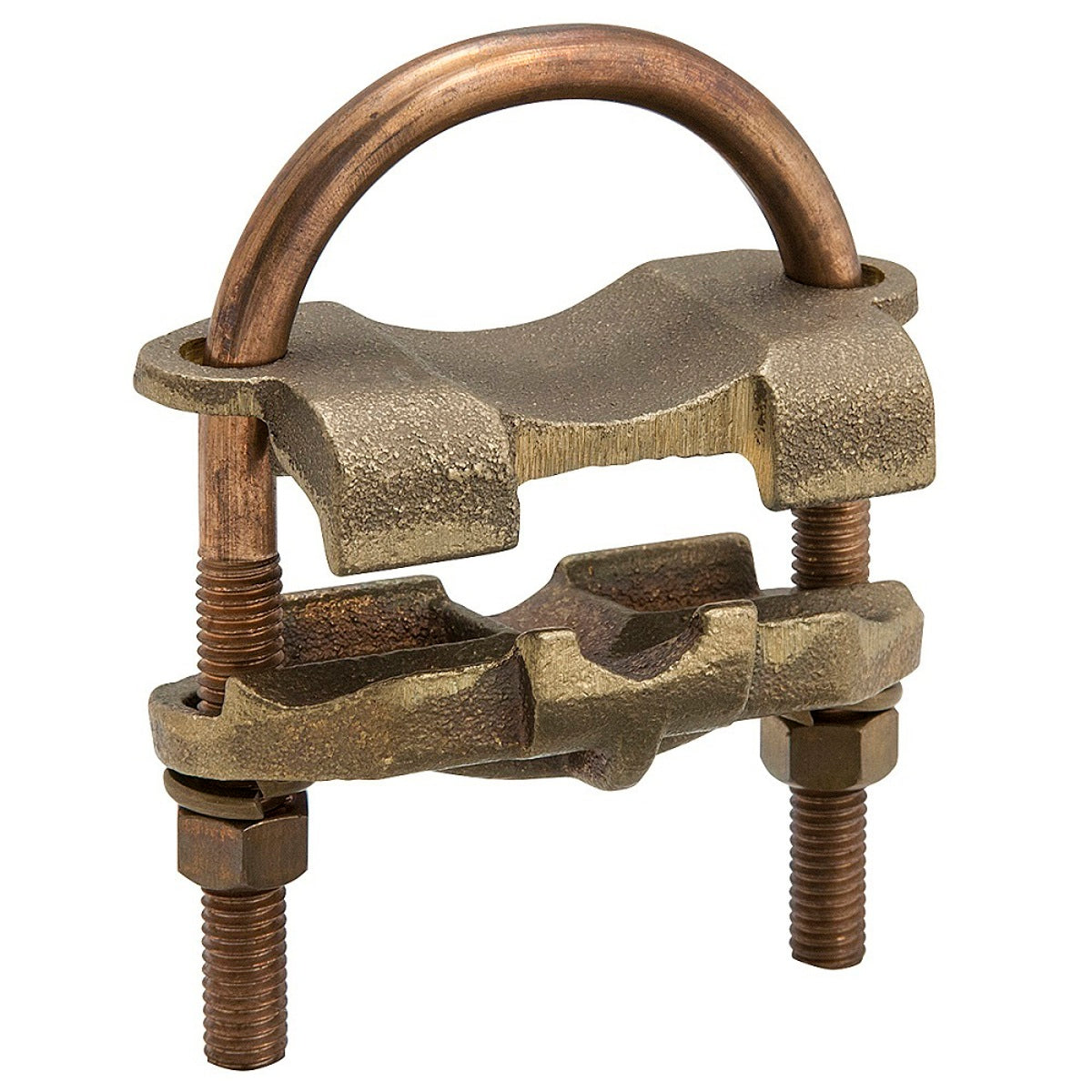

The ILSCO GPL-26 is a reliable ground clamp designed for various electrical applications. This part is suited for solid and stranded copper conductors and offers diverse connection types. It is manufactured by ILSCO, a recognized name in the industry.

• Conductor Sizes: 8 to 4 AWG
• Material: Cast Bronze
• Dimensions: 3.25 inches Long x 1.563 inches Wide x 4.165 inches High

Product Highlights

This ground clamp ensures a secure and effective grounding connection for various installations.

Product Information

Standard Information

• Catalog Number: GPL-26
• Manufacturer: ECM Industries
• Brand: ILSCO
• UPC: 783669262469
• GTIN: 00783669262469

Technical Specifications

• Conductor Size: 8 to 4 AWG
• Conductor Type: Solid/Stranded Copper
• Connection Type: Parallel/90 degree Cable
• Dimensions: 3.25 inches Long x 1.563 inches Wide x 4.165 inches High
• Material: Cast Bronze
• Outside Diameter: 1-5/8 to 1-7/8 inches
• Pipe Size: 1-1/2 inches
• Rod Size: 1-5/8 to 1-7/8 inches
• Type: Type GPL U-Bolt
